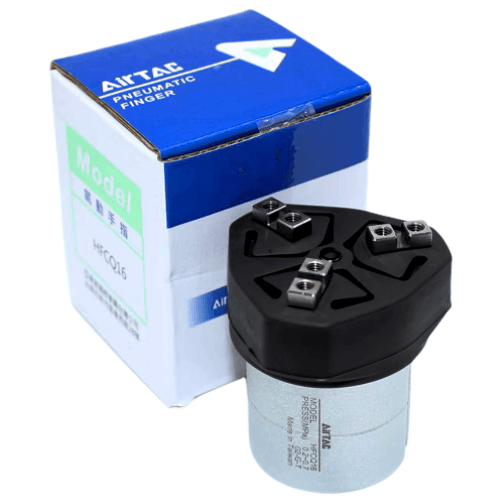

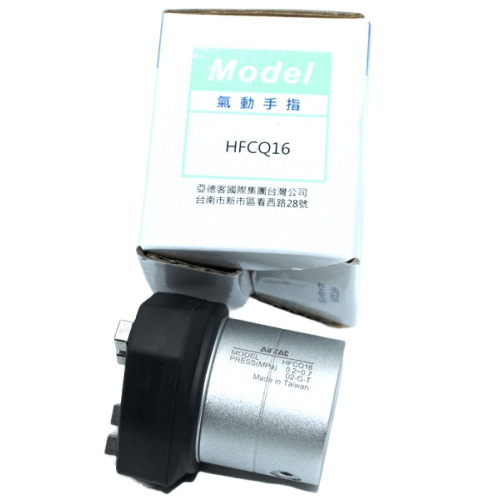

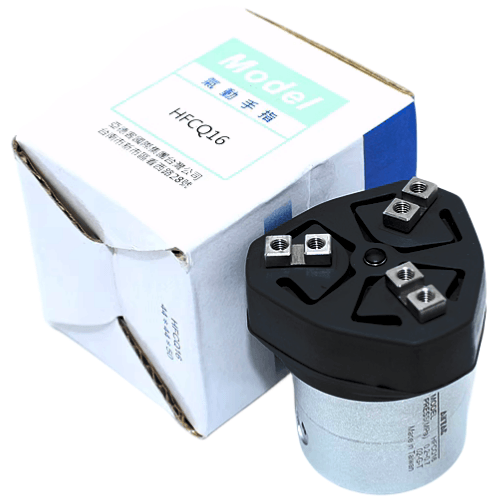

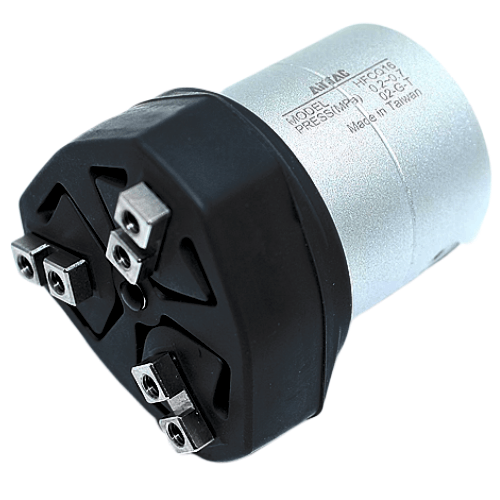

Airtac HFCQ Hollow Type Pneumatic Gripper HFCQ16
1. Integrated hollow tube design enables blow-off functionality for chip removal applications.
2. Precision-crafted jaw piston rods manufactured from premium stainless steel deliver exceptional strength, corrosion resistance, and minimized assembly clearance with reduced wobble for enhanced durability.
3. Standard protective bellows ensure reliable operation in demanding environments, including specialized industrial conditions.
4. Base-mounted locating pin holes optimize mounting accuracy and maintain positional consistency through repeated installation cycles.
5. Tail-end ejector mechanism compatibility enables integrated workpiece ejection functionality.
6. Universal sensor groove design facilitates multi-specification sensor integration.
Category: Parallel Grippers | Brand: AirTAC | Series: HFCQ
AirTAC HFCQ16 Hollow Type Pneumatic Gripper Technical Details
- Model: HFCQ16
- Type: Parallel jaw hollow-through pneumatic gripper
- Structure: Double-acting cylinder with guide rod
- Material: Aluminum alloy body (hard anodized) + stainless steel jaws
- Bore size: Ø16mm
- Hollow diameter: Ø8mm (through center axis)
- Stroke per jaw: 0-8mm (adjustable)
- Gripping force: 12-58N (adjustable via pressure regulation)
- Operating pressure: 0.1-0.7 MPa
- Repeat accuracy: ±0.02mm
- Port size: M5 (standard) / NPT1/8 optional
- Operating temperature: -10℃ to 80℃
- Protection class: IP40 (dust protected)
- Weight: 280g ±5g
- Dimensions: 72mm(L) × 42mm(W) × 34mm(H) (closed state)
- Max jaw opening: 16mm (total 32mm between jaws)
- Response time: 0.1s (at 0.5MPa)
- Lubrication: Pre-lubricated (maintenance-free design)
The HFCQ16 features a patented hollow channel design enabling internal routing of cables/sensors through the gripper body, ideal for collaborative robots and automated systems requiring clean cable management. Its dual-piston parallel movement mechanism ensures symmetrical gripping force distribution, while the hardened guide rods prevent lateral deflection during high-speed operations. The gripper achieves ISO 9400-1 compliance for mounting interfaces.
- PCB handling in electronics assembly lines (through-hole component insertion)
- Medical device manipulation with integrated vacuum suction lines
- Automated optical inspection (AOI) systems requiring internal sensor wiring
- Food packaging with integrated product detection sensors
- Collaborative robot end-effectors for mixed payload handling
Installation notes:
Use C-shaped mounting brackets (ISO standard) for secure attachment.
Maintain 0.5-1mm clearance around hollow channel for cable movement.
For vertical installations, install exhaust filters to prevent debris entry.
Maximum side load capacity: 15N (perpendicular to jaw motion axis).
| Property | Property Value |
|---|---|
| sku | HFCQ16 |
| Operation Type | Double Acting |
| Port Size | M3×0.5 |
| Actuator Mechanism | None |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | 16mm |
