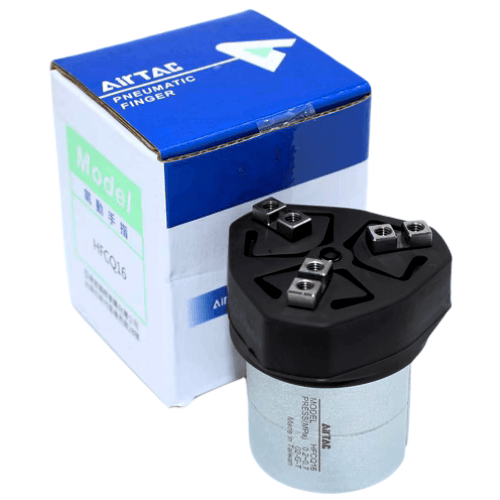

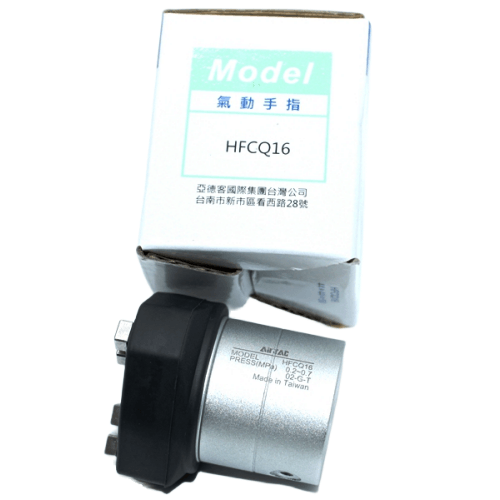

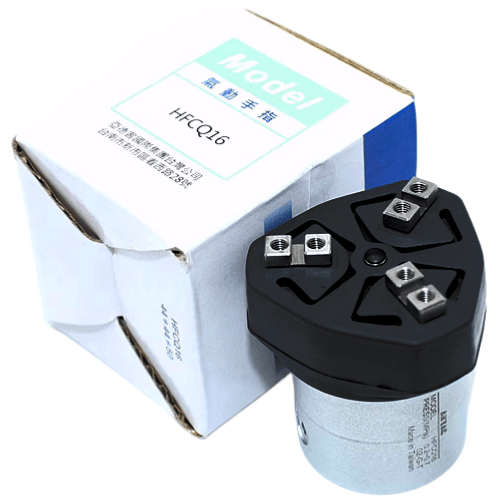

Airtac HFCQ Hollow Type Pneumatic Gripper HFCQ20
1. Integrated hollow tube design enables blow-off functionality for chip removal applications.
2. Precision-crafted jaw piston rods manufactured from premium stainless steel deliver exceptional strength, corrosion resistance, and minimized assembly clearance with reduced wobble for enhanced durability.
3. Standard protective bellows ensure reliable operation in demanding environments, including specialized industrial conditions.
4. Base-mounted locating pin holes optimize mounting accuracy and maintain positional consistency through repeated installation cycles.
5. Tail-end ejector mechanism compatibility enables integrated workpiece ejection functionality.
6. Universal sensor groove design facilitates multi-specification sensor integration.
Category: Parallel Grippers | Brand: AirTAC | Series: HFCQ
AirTAC HFCQ20 Hollow Type Pneumatic Gripper Specifications
- Model: HFCQ20
- Type: Double-acting hollow cylinder parallel gripper
- Bore size: 20mm
- Stroke per jaw: 6mm (standard), customizable up to 12mm
- Operating pressure: 0.2–0.7 MPa
- Action type: Parallel opening/closing
- Port size: M5x0.8 (dual ports on both ends)
- Material: Aluminum alloy body, polyurethane seals
- Temperature range: -10℃ to 80℃
- Air consumption: 8.5cm³/stroke (at 0.5MPa)
- Repeat accuracy: ±0.02mm
- Max gripping force: 65N (at 0.5MPa)
- Weight: 330g ±5g
- Dimensions: 105mm(L) × 40mm(W) × 34mm(H)
- Central bore diameter: 12mm (through-hole)
- Surface treatment: Hard anodized aluminum
- Mounting: 4x M4 threaded holes (front/rear mounting)
- Vibration resistance: 10–55Hz (1.5mm amplitude)
High-precision hollow gripper featuring internal cable routing capability through its 12mm center bore. The hardened aluminum construction provides exceptional durability for repetitive gripping tasks. Dual-port design enables rapid response (open/close time: 0.15s at 0.5MPa) and precise force control. Compatible with vacuum systems through optional adapters.
- Robotic arm end-effectors requiring internal wiring/pneumatic lines
- PCB board handling in electronics assembly
- Medical device manufacturing with cleanroom requirements
- Automated packaging lines for cylindrical objects
- 3C product testing equipment (phones, tablets, wearables)
- Optical lens positioning systems
Installation tip:
Utilize the through-hole for integrated sensor cabling or vacuum suction lines.
Apply silicone-based lubricant quarterly in high-cycle applications (>500,000 cycles/month).
Maintain 0.1–0.3mm clearance between jaws and workpiece for optimal grip stability.
| Property | Property Value |
|---|---|
| sku | HFCQ20 |
| Operation Type | Double Acting |
| Port Size | M5×0.8 |
| Actuator Mechanism | None |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <20mm> |
