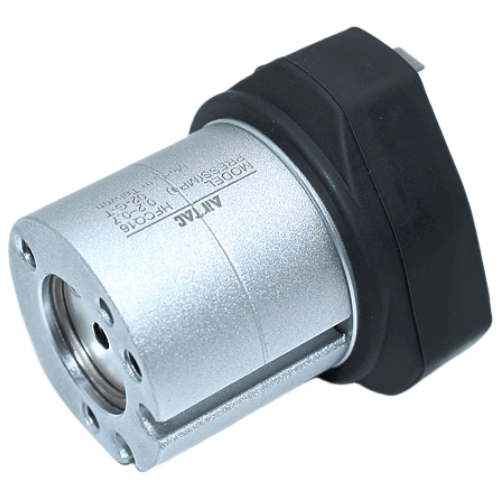

Airtac HFCQ Hollow Type Pneumatic Gripper HFCQ25
1. Integrated hollow tube design enables blow-off functionality for chip removal applications.
2. Precision-crafted jaw piston rods manufactured from premium stainless steel deliver exceptional strength, corrosion resistance, and minimized assembly clearance with reduced wobble for enhanced durability.
3. Standard protective bellows ensure reliable operation in demanding environments, including specialized industrial conditions.
4. Base-mounted locating pin holes optimize mounting accuracy and maintain positional consistency through repeated installation cycles.
5. Tail-end ejector mechanism compatibility enables integrated workpiece ejection functionality.
6. Universal sensor groove design facilitates multi-specification sensor integration.
Category: Parallel Grippers | Brand: AirTAC | Series: HFCQ
AirTAC HFCQ25 Hollow Type Pneumatic Gripper Specifications
- Model: HFCQ25
- Type: Hollow cylinder parallel gripper (double-acting)
- Bore size: Ø25mm
- Operating pressure: 0.2–0.8 MPa
- Drive method: Pneumatic (air pressure required)
- Max gripping force: 24.5N @0.5MPa
- Stroke per jaw: 0–8mm (adjustable)
- Repeat accuracy: ±0.05mm
- Material: Aluminum alloy body, NBR seals
- Temperature range: -10℃ to 70℃
- Port size: M5×0.8 (standard), 1/8" NPT optional
- Weight: 450g ±5%
- Dimensions: 120mm(L) × 40mm(W) × 40mm(H)
- Max operating speed: 500mm/s
- Mounting pattern: 4×M4 threaded holes (ISO9409-1 compatible)
- Air consumption: 1.5cm³/stroke
HFCQ25 features a unique hollow center design (Ø15mm through-bore) allowing passage of cables/sensors through the gripper body. Precision ground guide rods ensure smooth parallel motion with minimal friction. Anodized surface treatment provides corrosion resistance for humid environments. Compatible with ISO standard mounting interfaces for robotic integration.
- PCB handling in electronics assembly lines
- Precision part positioning in optical lens manufacturing
- Food packaging systems requiring internal cable routing
- Collaborative robot (cobot) end-effectors
- Medical device assembly with cleanroom requirements
Installation note:
Lubricate with ISO VG32 hydraulic oil before initial use.
Maintain 0.3-0.5mm clearance between jaws and workpiece.
Use 40μm filtered air with automatic drain function.
| Property | Property Value |
|---|---|
| sku | HFCQ25 |
| Operation Type | Double Acting |
| Port Size | M5×0.8 |
| Actuator Mechanism | None |
| Lubrication | Please provide the specific AirTAC product attribute values that need translation, and I will return the accurate English terminology. |
| Bore Diameter | <25 mm> |
