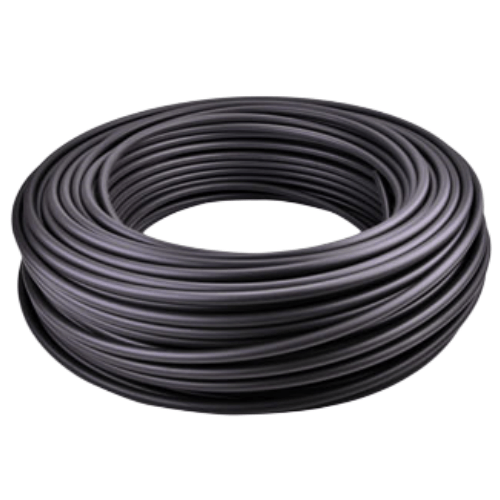

Airtac UN54D Flame-Retardant Tube UN54D060040100MBK
1. Single-layer construction with flame-retardant properties compliant with UL94 V-2 standards;
2. Superior elasticity with minimal bending radius for routing through confined spaces;
3. Enhanced water resistance and exceptional flexibility across operating temperatures;
4. Engineered for extreme abrasion resistance and high tensile strength performance.
Category: Auxiliary Components | Brand: AirTAC | Series: UN54D
AirTAC UN54D Flame-Retardant Tubing UN54D060040100MBK Technical Details
- Full Model Number: UN54D060040100MBK
- Series: UN54D (Flame-Retardant Nylon Series)
- Material: PA12 with halogen-free flame retardant additive
- Color Code: MBK (Matte Black)
- Inner Diameter: 6.0±0.1mm
- Outer Diameter: 10.0±0.2mm
- Standard Length per Coil: 100 meters
- Wall Thickness: 2.0mm (reinforced structure)
- Weight per Meter: 0.03kg/m → Total Weight: 3kg/coil
- Operating Temperature: -40℃ to +120℃ (short-term 150℃)
- Burst Pressure: ≥8.0MPa at 23℃
- Working Pressure: 0.8MPa (recommended max)
- Coil Dimensions: Ø300mm × H400mm (packaged)
- Certification: UL 94 V-2 flammability rating
- Oil Resistance: SWELL ≤15% (IRM903 oil, 70℃×70h)
- Surface Roughness: Ra ≤1.6μm (internal bore)
Heavy-duty flame-retardant tubing with anti-static properties, featuring spiral reinforcement for kink resistance. The corrugated exterior enhances flexibility while maintaining pressure integrity. Special polymer formulation prevents dripping in fire scenarios and meets IEC 60793-1-21 smoke density requirements.
- Laser cutting machine pneumatic lines (high temp environments)
- Automotive welding robot air supply systems
- Lithium battery production line inert gas delivery
- Plastics injection molding machine cooling circuits
- High-speed packaging equipment with frequent flexing requirements
Installation guidelines:
Use tube cutters for clean perpendicular cuts. Minimum bending radius = 4×OD (40mm).
For high-vibration areas, install every 500mm with P clamp (model CM-10). Compatible with
Push-to-Connect fittings up to 1/4" NPT. Pressure test at 1.25×working pressure before commissioning.
Not recommended for:
Hydraulic systems >5MPa, direct contact with strong acids/alkalis, or continuous UV exposure
without protective sleeve. Replace every 3 years in high-cycle applications.
| Property | Property Value |
|---|---|
| sku | UN54D060040100MBK |
| Inner Diameter | 4.0mm |
| Wall Thickness | 1.00mm |
| Outer Diameter | <6.0mm> |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature (℃): -20~70 |
| Bend Radius | 12mm |
| Length per Roll | Stroke 100mm |
| Burst Pressure @23°C | 4.0 |
