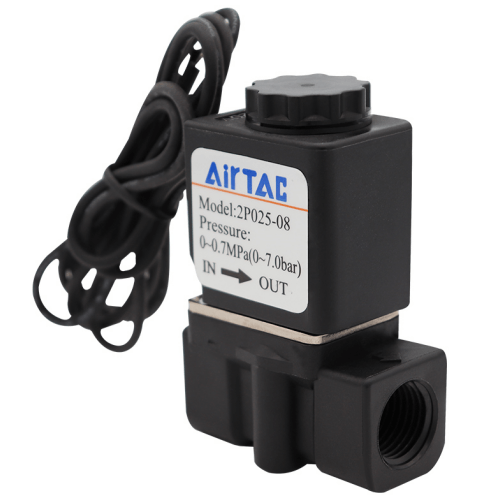

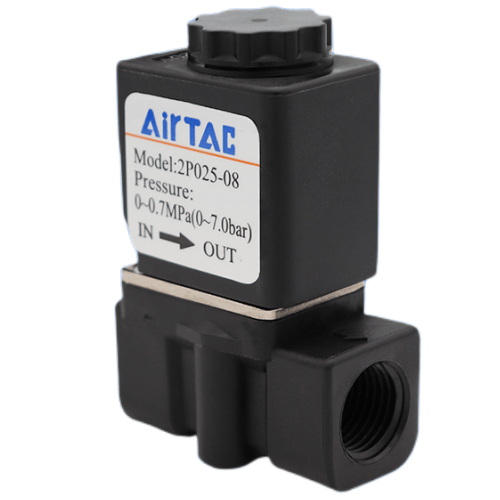

Airtac 2P Fluid Control Valve 2P02506FIG
2. Compact design featuring a minimized footprint and lightweight construction for tool-free installation;
3. Nylon 66 valve body paired with Class B insulation solenoid coil and VITON® seals, ensuring broad media compatibility;
4. IP65-rated coil protection and direct lead wire termination for enhanced durability in harsh environments.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2P
AirTAC 2P02506FIG 2-Position Fluid Control Valve Specifications
- Model: 2P02506FIG
- Type: 5-port 2-position pilot-operated solenoid valve
- Port configuration: P (pressure), A/B (actuator ports), R/S (exhaust)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Maximum flow rate: 850 L/min (ANR)
- Seal material: FKM fluorocarbon rubber
- Temperature tolerance: -10℃ to 80℃ (14°F to 176°F)
- Response time: ≤25ms (at rated voltage)
- Protection class: IP67 (dustproof & temporary immersion)
- Weight: 450g ±5% (excluding connectors)
- Dimensions: 80mm(L) × 40mm(W) × 100mm(H)
- Port thread depth: 12mm (all ports)
- Hysteresis: ≤10% of rated voltage
High-flow directional control valve with dual-pressure operation capability, featuring corrosion-resistant aluminum alloy body and military-grade coil insulation. Designed for aggressive media control with optional silicone-free seals (upon request). Includes manual override button for system debugging. Requires 5μm filtration and automatic drain maintenance.
- Plastic injection molding machine clamp control
- CNC tool changer pneumatic circuits
- Food processing vacuum/pressure systems
- Hydraulic system pilot stage control
- Battery production line automation
Installation protocol:
Mount with vibration-damping gaskets in high-shock environments.
Maintain minimum 15mm clearance below exhaust ports for heat dissipation.
Lubricate only with ISO VG32-grade pneumatic oil if required.
- Compressed air (ISO 8573-1:2010 Class 3.4.2)
- Inert gases (N₂, CO₂)
- Light hydraulic oils (≤ISO VG46)
- Not for oxygen systems or combustible gases
| Property | Property Value |
|---|---|
| sku | 2P02506FIG |
| Port Size | G1/8 |
| Flow Aperture | <2.5 mm> |
| Coil Voltage | DC12V |
