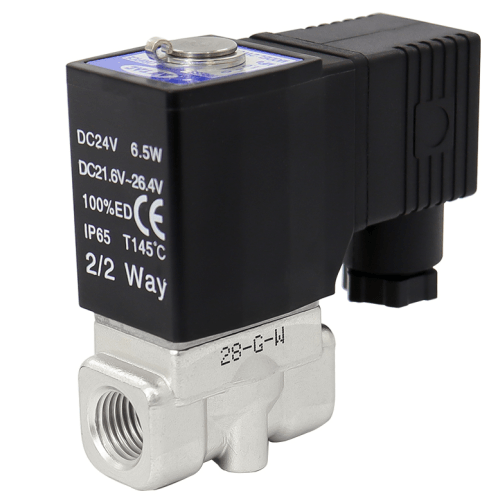

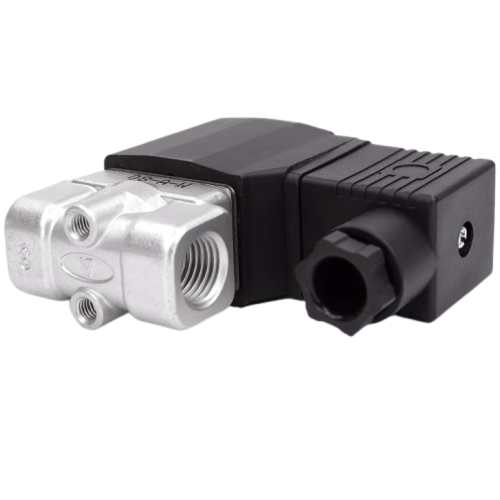

Airtac 2SH High Pressure Solenoid Valve 2SH05015C
1. Direct-acting normally closed 2-port 2-position configuration, ensuring rapid and sensitive directional switching;
2. Extensive pressure range compatibility with model options: Ultra-High Pressure (X), High Pressure (H), Standard, Large Flow (L), and Extra-Large Flow (T);
3. Compact structure with minimized dimensions and lightweight design for convenient installation and maintenance;
4. SUS304 stainless steel body construction, B-class thermal-rated solenoid coil. Standard FPM (Fluororubber) seals compatible with multiple media. Custom seal materials available through our technical department;
5. IP65-rated coil protection with wiring options: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AIRTAC | Series: 2SH
AirTAC 2SH05015C High-Pressure Solenoid Valve Specifications
- Model: 2SH05015C
- Type: 2-position 5-way direct-acting (high-pressure series)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.5–25 MPa (7.25–3625 PSI)
- Max pressure capacity: 35 MPa (burst pressure tested)
- Voltage options: DC12V/24V, AC110V/220V (±10% tolerance)
- Coil insulation class: Class F (155℃)
- Weight: 450g ±3% (including coil assembly)
- Dimensions: 85mm(L) × 45mm(W) × 65mm(H)
- Flow coefficient (Cv): 1.8 (at 7 bar)
- Seal material: Fluororubber (FKM) standard (HNBR optional)
- Temperature range: -10℃ to 150℃ (medium temp)
- Ambient temperature: -20℃ to 60℃
- Power consumption: 4.5W (DC24V), 5.2VA (AC220V)
- Response time: ≤15ms (exhaust to full open)
- Protection rating: IP67 (dust/water resistant)
- Port thread depth: 12mm (minimum engagement)
Heavy-duty solenoid valve engineered for ultra-high pressure systems, featuring forged brass body construction with nickel-plated corrosion protection. The dual-coil heat dissipation design enables continuous 100% duty cycle operation. Includes manual override function for system debugging and emergency control. Requires ISO 8573-1 class 3-4-3 compressed air quality (max 5μm particulate).
- Hydraulic press emergency release systems
- CNC machine tool clamping mechanisms
- High-pressure pneumatic testing rigs (leak detection systems)
- Offshore drilling equipment controls
- Injection molding machine hydraulic boosters
- Railway braking simulation systems
Installation protocol:
Always install pressure relief valve upstream. Use torque wrench for port connections
(recommended 25-30 N·m for PT1/4 ports). Perform 3x pressure cycling (0-25MPa)
during commissioning. Maintenance interval: 500,000 cycles or 12 months.
- Mounting bracket: AS-05-HP series
- Quick-connect kit: QD-HP4-25MPa
- Pressure sensor interface: PSI-35MPa-4MA
| Property | Property Value |
|---|---|
| sku | 2SH05015C |
| Port Size | PT 1/2 |
| Flow Aperture | <4mm> |
| Coil Voltage | DC12V |
