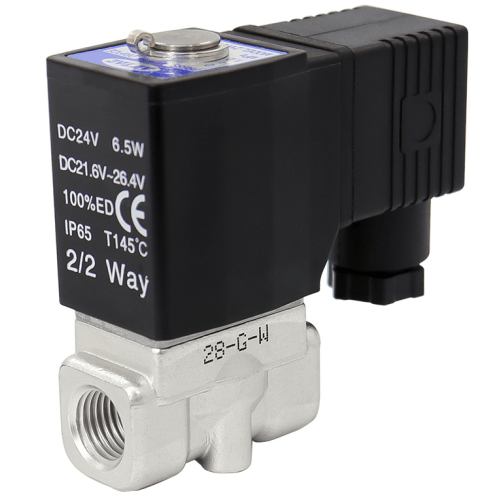

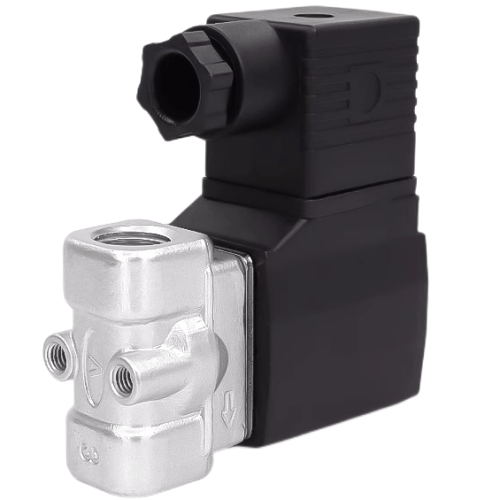

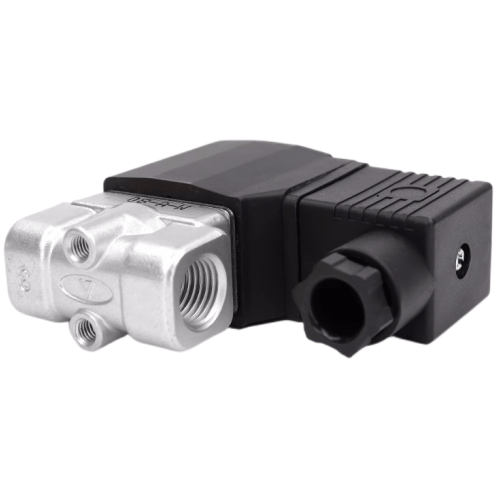

Airtac 2SX Fluid Control Valve 2SX05010FI
2. Extensive pressure range options: Ultra-High Pressure (X), High Pressure (H), Standard, Large Flow (L), and Extra-Large Flow (T) configurations;
3. Compact design with reduced footprint, lightweight construction, and tool-free installation/maintenance;
4. SUS304 stainless steel body, B-class heat-resistant coil, standard FPM (Fluorocarbon Rubber) seals for multi-media compatibility. Custom seal materials available upon technical consultation;
5. IP65-rated coil protection with wiring options: direct lead wire or DIN connector.
Category: Fluid Solenoid Valves | Brand: AirTAC | Series: 2SX
AirTAC 2SX05010FI Fluid Control Valve Technical Details
- Model: 2SX05010FI
- Type: 5-port 3-position closed center (Pneumatic solenoid valve)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.05–1.0 MPa
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Weight: 680g ±2%
- Dimensions: 64mm(L) × 50mm(W) × 92mm(H)
- Body material: Die-cast aluminum alloy (anodized)
- Seal compound: HNBR (Hydrogenated Nitrile) for high chemical resistance
- Temperature tolerance: -5℃ to 80℃ (non-freezing)
- Flow capacity: 1,200 NL/min (at 0.5 MPa)
- Response time: ≤20ms (exhaust to center position)
- Protection class: IP67 (dust/water immersion resistant)
- Port thread depth: 12mm (minimum engagement)
High-flow directional control valve with center-block function, featuring triple-coil protection against voltage spikes. The hardened stainless steel spool ensures 2 million cycle durability under full load. Integrated silencer reduces exhaust noise to ≤68dB(A). Requires 5μm filtered lubricated air (ISO 8573-1 class 4).
- Multi-axis pneumatic actuator synchronization
- Bottle filling/palletizing machine sequencing
- Plastic injection molding machine clamp control
- Automated welding fixture positioning systems
- Semiconductor wafer handling robotics
Installation protocol:
Mount with vibration-damping gaskets in environments exceeding 0.5G vibration.
Maintain 15° maximum deviation from vertical axis during operation.
Use copper-free anti-seize compound on threaded ports.
| Property | Property Value |
|---|---|
| sku | 2SX05010FI |
| Port Size | PT3/8 |
| Flow Aperture | <3mm> |
| Coil Voltage | DC12V |
