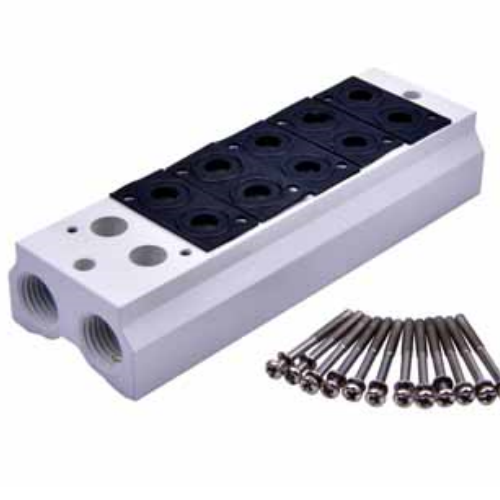

Airtac 300M Solenoid Valve Manifold 300M-10F
2、Centralized air supply/exhaust ports and unified wiring layout simplify troubleshooting during system failures;
3、Modular design with high scalability allows flexible combination and future expansion of connected directional control valves;
Category: Solenoid Valve Base , Brand: AIRTAC , Series: 300M
AirTAC 300M-10F Valve Manifold Base Technical Details
- Model: 300M-10F (Modular Base for 10 Valves)
- Type: ISO 5599/1 Standard Modular Manifold
- Port size: G1/8 (BSPP) × 10 stations
- Max operating pressure: 1.0 MPa
- Material: Glass fiber reinforced PA66
- Weight: 680g ±5% (excluding valves)
- Dimensions: 208mm(L) × 42mm(W) × 24mm(H)
- Seal type: Integrated NBR gasket matrix
- Temperature range: -5℃ to 80℃ (dry air)
- Mounting hole spacing: 20mm pitch (ISO standardized)
- Surface finish: Anti-corrosion anodizing
- Compatibility: Works with 300M series valves (3V1/3V2/3V3)
- Pressure drop: ≤0.02 MPa at 700 NL/min flow
- IP rating: IP40 (protected against tool-sized objects)
High-density modular base designed for centralized pneumatic control systems, featuring unified air passages that minimize pressure loss. The staggered O-ring groove design prevents cross-port leakage, while the metal-reinforced mounting threads (M5×0.8) ensure 10,000+ cycle durability. Optimized for vertical or horizontal DIN rail mounting (35mm).
- Automated assembly line multi-station controls
- Plastic injection molding machine clusters
- Textile machinery multi-actuator systems
- Semiconductor wafer handling equipment
- Beverage filling line valve groups
Installation protocol:
Apply 2.0-2.5 N·m torque during valve mounting. Use LOCTITE 243
on end plate screws. For multi-base stacking, install alignment
pins (ASAP-3.5) prior to assembly.
| Property | Property Value |
|---|---|
| sku | 300M-10F |
