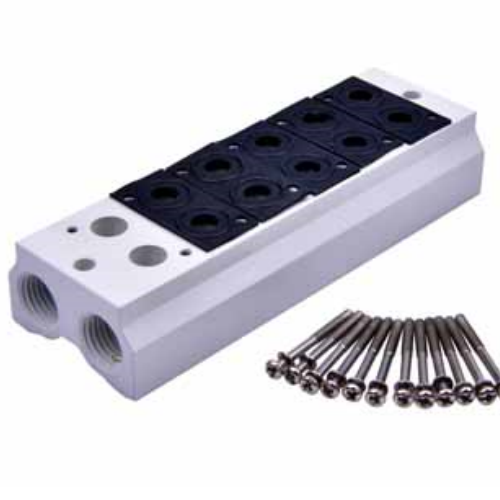

Airtac 300M Solenoid Valve Manifold 300M-14F
2、Centralized air supply/exhaust ports and unified wiring layout simplify troubleshooting during system failures;
3、Modular design with high scalability allows flexible combination and future expansion of connected directional control valves;
Category: Solenoid Valve Base , Brand: AIRTAC , Series: 300M
AirTAC 300M-14F Valve Manifold Base Technical Details
- Model: 300M-14F (ISO 15407-1 compliant)
- Type: Modular pneumatic manifold base
- Port size: PT1/4 (G1/4 optional)
- Max operating pressure: 1.0 MPa
- Valve compatibility: 300 series solenoid valves
- Material: Anodized aluminum alloy (AL6063-T5)
- Surface hardness: ≥150HV
- Weight: 280g ±5g
- Dimensions: 72mm(L) × 34mm(W) × 34mm(H)
- Port pitch: 18mm (ISO standardized)
- Seal type: Dual-layer NBR/POM structure
- Temperature range: -5℃ to 80℃ (with silicone grease)
- Pressure drop: ≤0.02 MPa @ 0.5 MPa supply
- Certification: RoHS compliant
High-density modular base with multi-channel flow paths, featuring precision-machined internal galleries (Φ3.5mm main passage) for minimized pressure loss. The oxidation-resistant surface treatment ensures durability in humid environments. Designed for multi-valve centralized control systems requiring space optimization.
- Automated assembly line clamping systems
- Plastic injection molding machine valve clusters
- CNC tool changer pneumatic circuits
- Semiconductor handling equipment manifolds
- Automotive tire assembly stations
Mounting guidance:
Use M4×16 stainless steel screws (1.2-1.5N·m torque). Apply silicone-based grease
to sealing surfaces before assembly. Maintain 0.5mm clearance between adjacent
valves for thermal expansion. Requires ISO 8573-1 Class 3 compressed air.
