Airtac 300M Solenoid Valve Manifold 300M-1F
Genuine AirTAC valve manifold, order code 300M-1F from the 4AM range. The options this code selects are decoded below; series data follow the official AirTAC catalog.
- Manifold300M (for 4A300)
- Stations1 station
- ThreadPT
- Models100M / 200M / 300M / 400M
- For valves4A100 / 4A200 / 4A300 / 4A400
- Maximum stations16 / 16 / 12 / 8
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac 300M Solenoid Valve Manifold 300M-1F

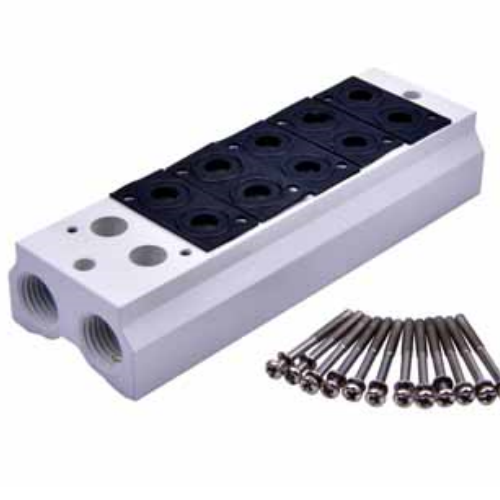

A single 4A300 valve sits on the AirTAC 300M-1F manifold base, giving the valve a fixed 3/8 inch supply port P and a shared exhaust on a machined body instead of individually plumbed connections. It is the smallest station count available in the 300M range.
Length A is 52 mm for one station. The PT thread is standard on this code; ending the order code in G or T switches the supply connection to NPT. The order covers the manifold, seals and screws, so the valve can be bolted down and piped straight away.
Airtac 300M Solenoid Valve Manifold 300M-1F Technical Specifications
| Order code | 300M-1F |
|---|---|
| Product | Valve Manifold |
| Manifold | 300M (for 4A300) |
| Stations | 1 station |
| Thread | PT |
| Models | 100M / 200M / 300M / 400M |
|---|---|
| For valves | 4A100 / 4A200 / 4A300 / 4A400 |
| Maximum stations | 16 / 16 / 12 / 8 |
| Supply port P | 1/4" / 1/4" / 3/8" / 1/2" |
| Length A | 100M 38 + 19 × (n-1) mm; 200M 44 + 23 × (n-1) mm; 300M 52 + 28 × (n-1) mm; 400M 61 + 35 × (n-1) mm |
| Fluid | Air, filtered to 40 µm |
| Temperature | -20 to +70 °C |
| Included | Manifold, seals and screws |
| Blank plate | Kit P-□00M-R2 (separate) |
Source: AirTAC 4A manifold datasheet (p.124), ordering code, specifications and dimensions.
How to choose
Choose 300M-1F when exactly one 4A300 valve is needed. If the bank will hold two valves, 300M-2F is the direct sibling, and any 300M can be ordered up to 300M-12F with each extra station lengthening the body by 28 mm. Because this single-station code has no spare positions, the P-300M-R2 blank plate kit is not required here; for NPT piping order 300M-1F-G or 300M-1F-T.
Applications
Single-function pilot supply
Mount one 4A300 valve that pilots a cylinder or process line on a rigid manifold base with one shared 3/8 inch air connection.
Test rigs and prototypes
Fit a lone valve during machine trials on a 52 mm base, then move to larger 300M banks (up to 12 stations) once the circuit is proven.
Point-of-use valve mounting
Install a single 4A300 valve near the actuator with its supply gathered on one PT-threaded manifold base instead of loose piping.
FAQ
What are the key figures of the 300M-1F?
One station for 4A300 valves, supply port P of 3/8 inch, Length A of 52 mm, PT threads, air filtered to 40 um and a working temperature of -20 to +70 C.
Can a 300M-1F bank grow later?
The station count is fixed when you order. To cover future growth, order a 300M code with more stations (up to 300M-12F); each extra station adds 28 mm to the 52 mm single-station Length A.
