Airtac 300M Solenoid Valve Manifold 300M-9F

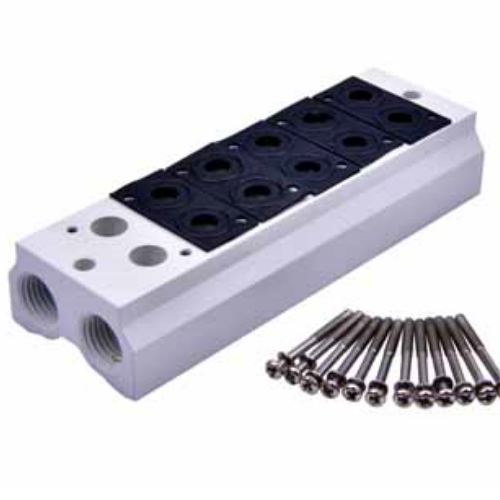

Genuine AirTAC valve manifold, order code 300M-9F from the 4AM range. The options this code selects are decoded below; series data follow the official AirTAC catalog.
- Manifold300M (for 4A300)
- Stations9 stations
- ThreadPT
- Models100M / 200M / 300M / 400M
- For valves4A100 / 4A200 / 4A300 / 4A400
- Maximum stations16 / 16 / 12 / 8
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac 300M Solenoid Valve Manifold 300M-9F
Nine 4A300 valves share one air supply on the 300M-9F manifold. The 300M body carries a 3/8 inch supply port P and a common exhaust, so the bank replaces nine separate valve connections with a single feed and one point to trace faults. At nine stations the build sits comfortably inside the 300M rating of 12 maximum stations, leaving headroom to extend the bank later.
Length A for this code works out to 52 + 28 x 8 = 276 mm, since every extra station adds 28 mm on the 300M. The bare order code means PT thread; the G or T suffix for NPT is not present. The order includes the manifold, seals and screws, and the air must be filtered to 40 um with an ambient range of -20 to +70 C.
Airtac 300M Solenoid Valve Manifold 300M-9F Technical Specifications
| Order code | 300M-9F |
|---|---|
| Product | Valve Manifold |
| Manifold | 300M (for 4A300) |
| Stations | 9 stations |
| Thread | PT |
| Models | 100M / 200M / 300M / 400M |
|---|---|
| For valves | 4A100 / 4A200 / 4A300 / 4A400 |
| Maximum stations | 16 / 16 / 12 / 8 |
| Supply port P | 1/4" / 1/4" / 3/8" / 1/2" |
| Length A | 100M 38 + 19 × (n-1) mm; 200M 44 + 23 × (n-1) mm; 300M 52 + 28 × (n-1) mm; 400M 61 + 35 × (n-1) mm |
| Fluid | Air, filtered to 40 µm |
| Temperature | -20 to +70 °C |
| Included | Manifold, seals and screws |
| Blank plate | Kit P-□00M-R2 (separate) |
Source: AirTAC 4A manifold datasheet (p.124), ordering code, specifications and dimensions.
How to choose
Choose the 300M series only if your valves are 4A300; 200M suits 4A200 and 400M suits 4A400. Among 300M station counts, 300M-8F is one station shorter and 300M-10F one longer, while 300M-12F fills the maximum. If you need NPT instead of PT, order the G or T thread suffix. Spare stations on a partially filled bank are closed with the P-300M-R2 blank plate kit, ordered separately.
Applications
Clamp and press bank
Nine 4A300 valves fed from one 3/8 inch supply port control clamping cylinders at several stations of a machine, with a shared exhaust instead of nine separate lines.
Conveyor divert stations
A single 300M-9F bank drives diverters and stops along a line, so air supply and troubleshooting both happen at one valve island.
Expandable valve island
With 9 of the 12 maximum 300M stations used, the layout keeps room for later valves; open stations are closed with the P-300M-R2 blank plate kit.
FAQ
What are the key figures of the 300M-9F?
It is a 300M manifold for nine 4A300 valves. Supply port P is 3/8 inch, thread is PT (no G or T suffix), and length A is 52 + 28 x 8 = 276 mm. The 300M series allows up to 12 stations, fluid is air filtered to 40 um, and the temperature range is -20 to +70 C.
What comes with the order and how do I close unused stations?
The order includes the manifold, seals and screws. Each station takes one 4A300 valve; blank plate kit P-300M-R2 closes any spare station and is ordered separately.
