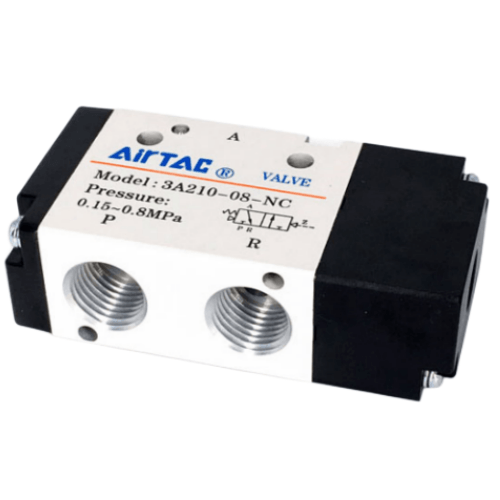

Airtac 3A200 Pneumatic Control Valve 3A210-08NC
2. Double pneumatic pilot design with memory function;
3. Precision-machined internal bores with special surface treatment deliver low friction resistance, minimal actuation pressure, and extended service life;
4. Oil-free lubrication system requiring no maintenance;
5. Multi-position mounting capability for flexible installation and operation;
6. Compatible with base manifold valve blocks to optimize space utilization.
Category: Pneumatic Control Valves, Brand: AirTAC, Series: 3A200
AirTAC 3A210-08NC Pneumatic Control Valve Specifications
- Model: 3A210-08NC (3A200 series)
- Type: 5/2-way normally closed (air-piloted)
- Port size: PT1/4 (G1/8 optional)
- Operating pressure range: 0.2–0.8 MPa
- Max operating frequency: 5 Hz
- Temperature range: -5℃ to 80℃
- Seal material: NBR (Nitrile rubber)
- Body material: Anodized aluminum alloy
- Weight: 320g ±5%
- Dimensions: 55mm(L) × 40mm(W) × 70mm(H)
- Actuation type: Pneumatic pilot (requires 0.3MPa min. control pressure)
- Flow capacity: 1000 L/min (ANR)
- Response time: ≤0.1 sec
- Protection rating: IP40
- Manual override: Optional (side-mounted lever)
Robust 5/2-way pneumatic valve optimized for high-cycle industrial applications. Features dual-pressure pilot operation with wear-resistant spool design. The anodized body resists chemical corrosion and particle abrasion. Requires ISO 8573-1:2010 Class 4 compressed air (max 50μm particles).
- Clamping/positioning cylinders in CNC machinery
- Pneumatic actuator control in packaging lines
- Automotive assembly line tooling
- Material handling systems with double-acting cylinders
- Food processing equipment (NBR compatible with oils)
Installation guidelines:
Mount horizontally to prevent debris accumulation. Install downstream
filter-regulator-lubricator (FRL) unit within 1m distance. For manual
override models, ensure 25mm clearance for lever operation.
Critical note:
Do not use silicone-based lubricants – incompatible with NBR seals.
Maximum allowable instantaneous current during pilot operation: 3A.
| Property | Property Value |
|---|---|
| sku | 3A210-08NC |
| Position | 3-Port 2-Position |
| Initial Position | Normally Closed |
| Port Size | PT1/4 |
