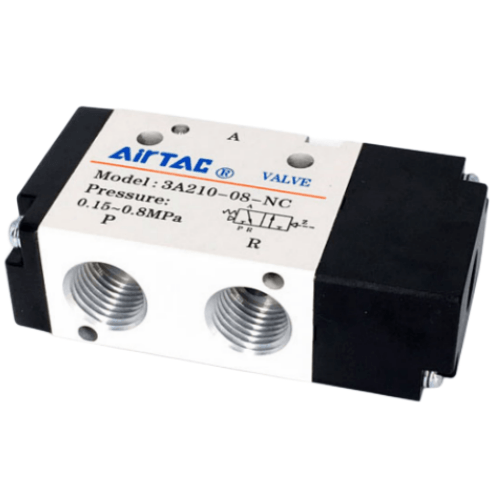

Airtac 3A200 Pneumatic Control Valve 3A220-06
2. Double pneumatic pilot design with memory function;
3. Precision-machined internal bores with special surface treatment deliver low friction resistance, minimal actuation pressure, and extended service life;
4. Oil-free lubrication system requiring no maintenance;
5. Multi-position mounting capability for flexible installation and operation;
6. Compatible with base manifold valve blocks to optimize space utilization.
Category: Pneumatic Control Valves, Brand: AirTAC, Series: 3A200
AirTAC 3A220-06 Pneumatic Control Valve Technical Specifications
- Model: 3A220-06 (3A200 series)
- Valve type: 3-position, 5-way closed center
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.1–0.8 MPa (14.5–116 PSI)
- Voltage variants: DC12V/24V, AC110V/220V (coil options)
- Manual override: Built-in emergency operation button
- Weight: 480g ±5% (including mounting accessories)
- Dimensions: 56mm(W) × 56mm(H) × 126mm(L)
- Seal materials: HNBR/NBR compound seals
- Temperature tolerance: -5℃ to 80℃ (23℉ to 176℉)
- Flow capacity: CV=1.8 (Kv=2.06) at 0.5MPa
- Effective area: 18mm² (spool cross-section)
- Response time: ≤50ms (at rated voltage)
- Protection class: IP67 (dust/water resistant)
High-flow directional control valve with center-block function, featuring brass alloy body and hardened stainless steel spool for extended cycle life (>5 million operations). Optimized for medium-duty pneumatic systems requiring precise directional control and position holding. Includes LED status indicator and surge protection circuitry. Requires ISO 8573-1:2010 Class 3 compressed air (max 5μm particles).
- Clamping fixture sequencing in CNC machining centers
- Actuator control for automated assembly lines
- Material handling systems with cylinder synchronization
- Plastic injection molding machine ejectors
- Test bench pneumatic circuit configuration
Installation guidelines:
Mount using M5 screws with vibration dampeners. Maintain ≥20mm clearance
below valve for exhaust airflow. Lubricate air supply (ISO VG32 grade
recommended). Perform functional test every 500k cycles.
| Property | Property Value |
|---|---|
| sku | 3A220-06 |
| Position | 3-Port 2-Position |
| Initial Position | Normally Closed |
| Port Size | PT1/8 |
