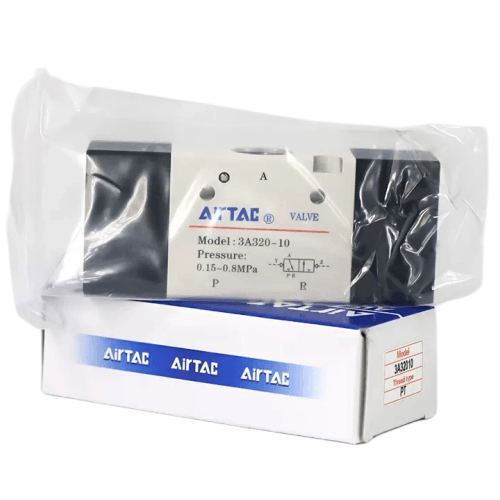

Airtac 3A300 Pneumatic Valve 3A310-08NC
1. Spool-type structure with superior sealing performance and instant response characteristics;
2. Double pilot operation enables position memory function;
3. Precision-machined internal bores ensure minimized friction resistance, low actuation pressure (0.15MPa), and extended service life;
4. Maintenance-free operation without lubrication requirements;
5. Multiple mounting orientations (X/Y/Z axes) for flexible installation;
6. Compatible with manifold base integration for space-optimized valve arrangements.
Category: Pilot Operated Valves | Brand: AirTAC | Series: 3A300
AirTAC 3A310-08NC Pneumatic Control Valve Specifications
- Series: 3A300 (Pilot-Operated Mechanical Valve)
- Model: 3A310-08NC
- Valve Type: 3/2-way normally closed (mechanical actuation)
- Port Size: PT1/4 (G1/8 optional)
- Operating Pressure: 0.05–1.0 MPa
- Max Flow Rate: 750 L/min (ANR)
- Actuation Force: 5N min. (manual override available)
- Seal Material: HNBR (Hydrogenated Nitrile)
- Temperature Range: -10℃ to 80℃
- Body Material: Aluminum alloy (anodized finish)
- Weight: 680g ±5%
- Dimensions: 67mm(L) × 42mm(W) × 76mm(H)
- Port Thread Depth: 12mm (full engagement required)
- Response Time: ≤0.15s (at 0.5MPa)
- Mounting Options: Direct piping or sub-base installation
Robust mechanical valve with manual override capability, featuring enhanced flow dynamics for mid-pressure systems. The dual-seal structure with wear-resistant HNBR ensures leak-free operation in high-cycling environments. Requires 25μm filtered compressed air with oil mist lubrication recommended.
- Automated assembly line clamping mechanisms
- Plastic injection molding machine ejectors
- CNC machine tool chuck controls
- Food processing pneumatic actuators
- Textile machinery tensioning systems
Installation note:
Mount with vibration-damping washers in high-frequency operation scenarios.
Allow minimum 15mm clearance below valve for manual override access.
Lubricate pivot points quarterly with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | 3A310-08NC |
| Position | 3-Port 2-Position |
| Initial Position | Normally Closed |
| Port Size | PT1/4 |
