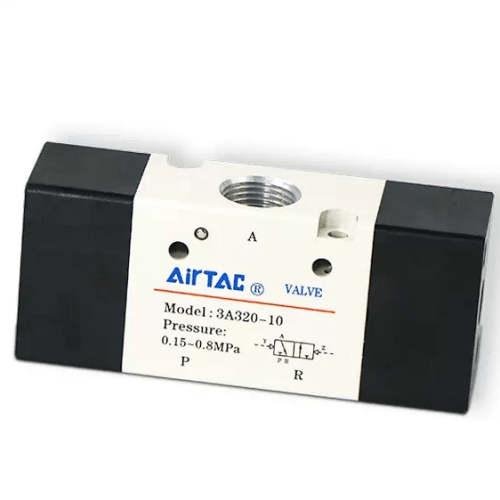

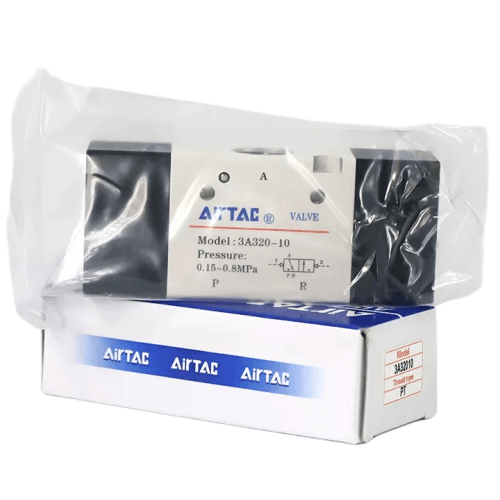

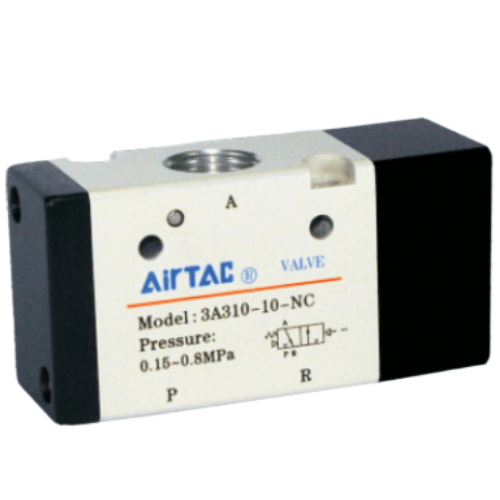

Airtac 3A300 Pneumatic Valve 3A31008NO
1. Spool-type structure with superior sealing performance and instant response characteristics;
2. Double pilot operation enables position memory function;
3. Precision-machined internal bores ensure minimized friction resistance, low actuation pressure (0.15MPa), and extended service life;
4. Maintenance-free operation without lubrication requirements;
5. Multiple mounting orientations (X/Y/Z axes) for flexible installation;
6. Compatible with manifold base integration for space-optimized valve arrangements.
Category: Pilot Operated Valves | Brand: AirTAC | Series: 3A300
AirTAC 3A300 Series 3A31008NO Pneumatic Control Valve Specifications
- Model: 3A31008NO
- Type: 3-position, 5-way closed center (pneumatic pilot operation)
- Port configuration: 5 ports (P, A, B, EA, EB)
- Port size: PT1/4 (NPT1/4 optional)
- Operating pressure: 0.2–0.8 MPa (29–116 psi)
- Max flow rate: 750 L/min (ANR)
- Actuation type: Air pilot (dual pressure control)
- Seal material: HNBR rubber (oil & heat resistant)
- Valve body material: Aluminum alloy (anodized finish)
- Temperature range: -10℃ to 70℃ (14°F to 158°F)
- Weight: 220g ±5g
- Dimensions: 52mm(L) × 38mm(W) × 72mm(H)
- Response time: ≤0.1s (at 0.5MPa)
- Mounting style: ISO 5599-1 standard subplate
- Protection rating: IP67 (dust/water resistant)
High-flow directional control valve with center-block function, designed for precise mid-position control in pneumatic circuits. Features dual pilot pressure operation for stable switching and stainless steel internal components for extended cycle life. Requires 5-40μm filtered compressed air with ISO 8573-1:2010 Class 3.4.2 air quality.
- Clamping/positioning mechanisms in CNC machinery
- Automatic production line transfer systems
- Plastic injection molding machine actuators
- Material handling equipment with safety interlocks
- Food processing pneumatic circuits (requires optional FDA seals)
Installation note:
Ensure pilot air pressure is 0.15-0.2MPa higher than main circuit pressure.
Use anti-vibration mounts in high-cycle applications (>500,000 cycles/month).
Lubricate with ISO VG32 turbine oil if air line lubrication is unavailable.
| Property | Property Value |
|---|---|
| sku | 3A31008NO |
| Position | 3-Port 2-Position |
| Initial Position | Normally Open |
| Port Size | PT1/4 |
