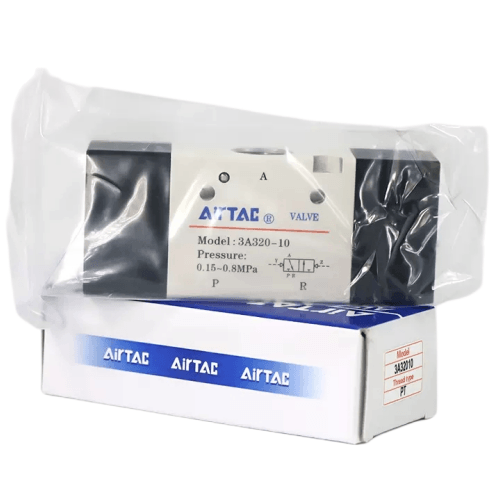

Airtac 3A300 Pneumatic Valve 3A31010NO
1. Spool-type structure with superior sealing performance and instant response characteristics;
2. Double pilot operation enables position memory function;
3. Precision-machined internal bores ensure minimized friction resistance, low actuation pressure (0.15MPa), and extended service life;
4. Maintenance-free operation without lubrication requirements;
5. Multiple mounting orientations (X/Y/Z axes) for flexible installation;
6. Compatible with manifold base integration for space-optimized valve arrangements.
Category: Pilot Operated Valves | Brand: AirTAC | Series: 3A300
AirTAC 3A300 Series 3A31010NO Pneumatic Control Valve Technical Details
- Full model number: 3A310-10NO (3A31010NO)
- Valve type: 3/2-way normally open (direct-acting)
- Port configuration: PT1/4 (G1/8 optional)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Manual override: Built-in push-button actuator
- Flow capacity: Cv=1.8 (Kv=1.56)
- Seal material: High-grade HNBR (Hydrogenated Nitrile) for oil resistance
- Temperature tolerance: -5℃ to 60℃ (operating fluid), -20℃ to 80℃ (ambient)
- Response time: ≤30ms (at 0.5MPa)
- Durability: 10 million cycles minimum
- Weight: 220g ±5g (excluding accessories)
- Dimensions: 54mm(L) × 36mm(W) × 74mm(H) (manual operator protrudes 12mm)
- Port thread depth: 9.5mm (PT1/4)
- Protection class: IP67 (dust/water resistant)
- Compliance: RoHS 2.0, REACH
High-speed pneumatic control valve with industrial-grade sealing, designed for repetitive precision operations. Features copper-free aluminum alloy body with anodized finish for corrosion resistance. The direct-acting mechanism ensures reliable operation even with low differential pressure (≥0.15MPa). Requires 5μm filtered compressed air with lubrication (ISO 8573-1:2010 Class 4.4.3).
- High-cycle packaging machine ejector systems
- Automated assembly line clamping devices
- Material handling cylinder sequencing
- Food processing equipment (compatible with NSF-H1 lubricants)
- Pneumatic grippers in robotics
Installation protocol:
Mount in vibration-controlled environments (≤0.5G). Use M4 mounting screws with
torque ≤0.8N·m. For vertical installations, orient exhaust port downward to
prevent debris accumulation. Allow 15-minute run-in period under 0.3MPa before
full-pressure operation.
| Property | Property Value |
|---|---|
| sku | 3A31010NO |
| Position | 3-Port 2-Position |
| Initial Position | Normally Open |
| Port Size | PT3/8 |
