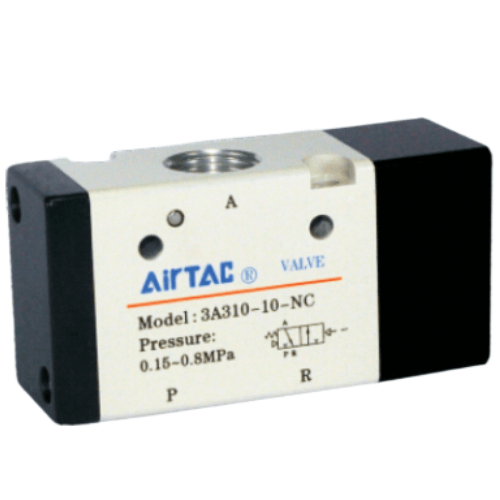

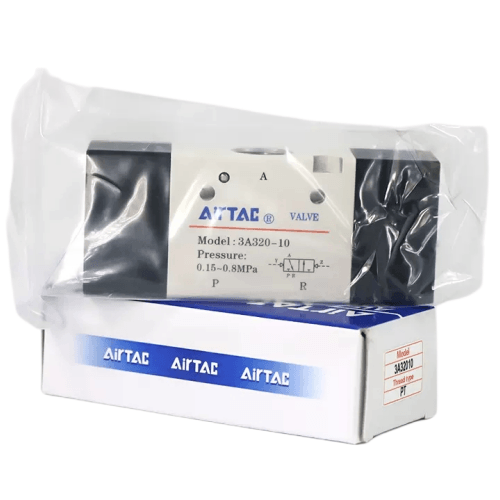

Airtac 3A300 Pneumatic Valve 3A320-08
1. Spool-type structure with superior sealing performance and instant response characteristics;
2. Double pilot operation enables position memory function;
3. Precision-machined internal bores ensure minimized friction resistance, low actuation pressure (0.15MPa), and extended service life;
4. Maintenance-free operation without lubrication requirements;
5. Multiple mounting orientations (X/Y/Z axes) for flexible installation;
6. Compatible with manifold base integration for space-optimized valve arrangements.
Category: Pilot Operated Valves | Brand: AirTAC | Series: 3A300
AirTAC 3A320-08 3A300 Series Pneumatic Control Valve Specifications
- Model designation: 3A320-08 (3A300 series)
- Valve type: 5/2-way pilot-operated pneumatic control
- Port configuration: 5 ports (P, A, B, R, S) / 2 positions
- Port thread size: PT1/2 (G1/2 optional)
- Operating pressure range: 0.2–1.0 MPa (29–145 psi)
- Maximum flow rate: 1800 NL/min (Cv=1.8)
- Actuation method: Air pilot control (requires 0.3-0.8 MPa pilot pressure)
- Seal material: HNBR (Hydrogenated Nitrile) for high temperature resistance
- Temperature tolerance: -10℃ to 120℃ (14°F to 248°F)
- Body material: Anodized aluminum alloy (ALDC12)
- Weight: 520g ±5% (with fittings)
- Dimensions: 120mm(L) × 80mm(W) × 50mm(H)
- Response time: ≤50ms (at 0.5 MPa)
- Lubrication: Pre-lubricated (maintenance-free for 20 million cycles)
- Mounting options: ISO 5599-1 standard sub-base compatible
High-flow directional control valve engineered for heavy-duty pneumatic systems requiring rapid cycling. Features dual-pressure pilot operation with manual override capability. The chrome-plated spool ensures smooth actuation even in high particulate environments. Requires 5μm filtered compressed air with ISO 8573-1:2010 Class 3.4.3 air quality.
- Press machine cylinder sequencing
- Plastic injection molding clamp controls
- Automotive assembly line actuators
- Foundry equipment air circuit switching
- High-speed packaging line diverters
Installation protocol:
Mount with vibration-damping gaskets in horizontal orientation only.
Allow 20mm clearance below valve for condensate drainage. Perform
monthly pilot air filter inspection in humid environments.
| Property | Property Value |
|---|---|
| sku | 3A320-08 |
| Position | 3-Port 2-Position |
| Initial Position | Normally Closed |
| Port Size | PT1/4 |
