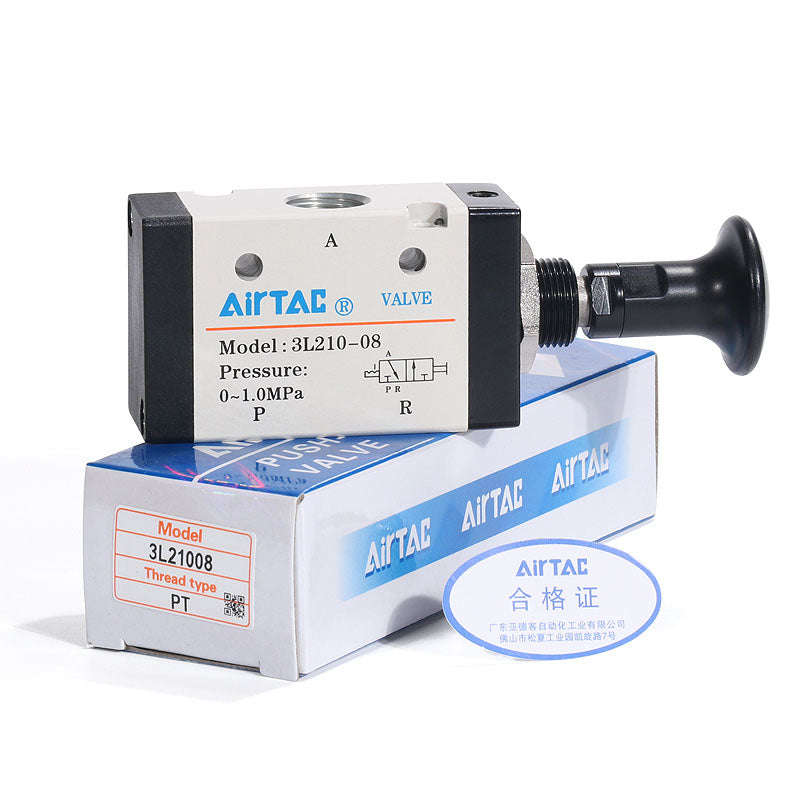

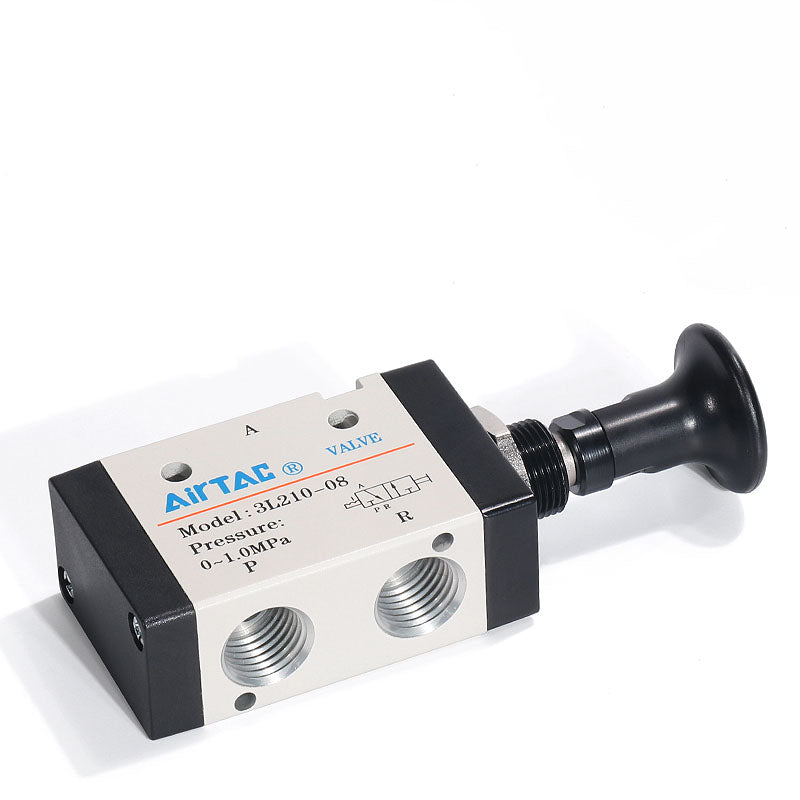

Airtac 3L 2-Position 3-Way Pull-Type Manual Valve 3L310-08
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2. Spool-type structure provides excellent sealing performance, compact size, lightweight construction, and tool-free assembly/disassembly;
3. Specially machined internal bore minimizes friction resistance while extending operational lifespan;
4. Lubrication-free maintenance;
5. Multiple mounting orientations enable flexible installation configurations;
Category: Manual Pull Valve , Brand: AIRTAC , Series: 3L
AirTAC 3L310-08 Manual Lever Valve Specifications
- Model: 3L310-08
- Type: 2-position 3-way manual lever valve (spring return)
- Port configuration: P (pressure), A (output), R (exhaust)
- Port size: PT1/8 (G1/8 optional)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 350 NL/min (ANR)
- Body material: Aluminum alloy with hard anodized finish
- Seal material: NBR (Nitrile) rubber standard (Viton optional)
- Temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Actuation force: ≤15N lever operation
- Weight: 180g ±5g
- Dimensions: 50mm(L) × 30mm(W) × 45mm(H)
- Mounting: Direct panel mounting with M4 screw holes
- Protection rating: IP65 (dust-tight & water jet resistant)
Robust manual override valve with ergonomic lever design, featuring positive detent positioning and visible status indication. The hardened aluminum construction ensures durability in high-cycle applications. Integrated dust cap protects the exhaust port during standby. Compatible with ISO 15407-1 standards.
- Emergency stop/purge systems in production lines
- Pneumatic fixture control in CNC machining centers
- Manual mode override for automated assembly equipment
- Educational pneumatic training rigs
- Mobile hydraulic service units
Installation note:
Lubricate pivot points with ISO VG32 turbine oil before initial use.
Ensure exhaust port orientation faces downward when installed in
dusty environments. Maximum allowable lateral force on lever: 20N.
| Property | Property Value |
|---|---|
| sku | 3L310-08 |
| Position | 3-Port 2-Position |
| Port | PT1/4 |
