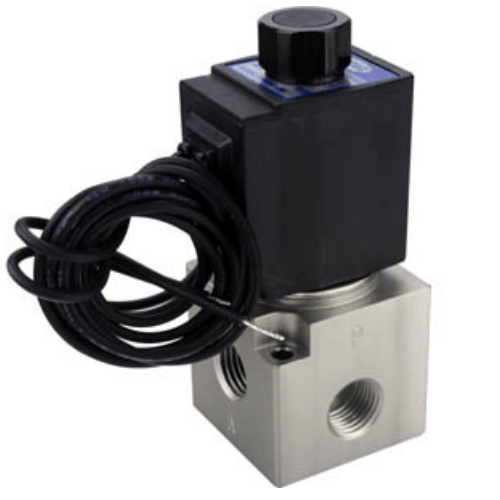

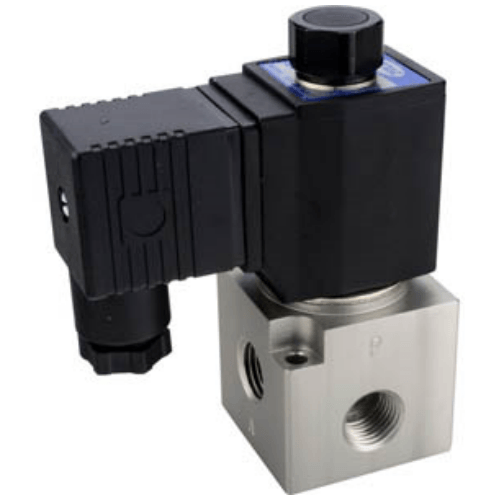

Airtac 3V3 Solenoid Valve 3V308NCB
The AirTAC Airtac 3V3 Solenoid Valve 3V308NCB is a genuine 3-port 2-position (3/2) solenoid valve with 1/4 in ports. It either feeds its outlet or vents it to exhaust, which is what makes it the valve for single-acting cylinders, on/off air blow, clamping, vacuum switching and pilot duty.
- Valve type3/2-way (3-port, 2-position)
- Initial stateNormally closed
- Port size1/4 in
- Coil voltageDC24V
- Electrical entryDIN plug (DIN socket type)
- Flow (Cv)0.62
- Series3V3
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac 3V3 Solenoid Valve 3V308NCB
The 3V308NCB pairs a DC24V coil with the biggest flow in AirTAC's 3V3 body: a normally closed, direct-acting 3/2 coaxial poppet valve on a 1/4in PT port that switches one line between supply and exhaust. With the coil off, the outlet is shut and the downstream side is held.
It is also a vacuum-capable choice: the body carries a -102.2 kPa to 0.1 MPa rating, so it can sit on negative-pressure lines for cup lifting or evacuation duty - a rating the smaller 3V1 does not share. The DC24V coil draws 6.5 W, and Cv 0.62 keeps restriction low on larger single-acting circuits.
Airtac 3V3 Solenoid Valve 3V308NCB Technical Specifications
| Model | Airtac 3V3 Solenoid Valve 3V308NCB |
|---|---|
| Series | 3V3 |
| Valve type | 3/2-way (3-port, 2-position) |
| Function | Direct-acting, single solenoid, spring return |
| Initial state | Normally closed |
| Port size | 1/4 in |
| Thread | PT |
| Coil voltage | DC24V |
|---|---|
| Electrical entry | DIN plug (DIN socket type) |
| Coil power | 6.5 W |
| Operating pressure | 0-0.8 MPa (0-114 psi) |
| Vacuum service | Rated -102.2 kPa to 0.1 MPa |
| Flow coefficient | Cv 0.62 |
| Temperature | -20 to 70 C |
| Construction | Coaxial shut-off (poppet), direct-acting, spring return |
| Protection | IP65 (DIN 40050) |
| Medium | Air, filtered by a 40 µm or finer element. Lubrication not required. |
Figures follow the official AirTAC 3V3 catalogue. Confirm coil voltage and thread (PT / NPT / G) against the product label before wiring.
Model Code: Airtac 3V3 Solenoid Valve 3V308NCB
| 3V3 | Body — sets the flow, the coil power and whether vacuum is rated. |
|---|---|
| 1/4 in | Port size. M5, 06 = 1/8 in, 08 = 1/4 in, 10 = 3/8 in. |
| NC | Normally closed: no air at the outlet until the coil is energised. |
| DC24V | Coil voltage. A = AC220V, B = DC24V, C = AC110V, E = AC24V, F = DC12V. |
| — | Electrical entry: I = flying lead, otherwise a DIN plug. |
| PT | Port thread. PT ships from stock; G and NPT are available to order. |
What a 3/2 Valve Does
A 3/2 valve has three ports — supply, outlet and exhaust — and two states. It either feeds the outlet or vents it to exhaust, and that is the whole job.
That makes it the right valve for a single-acting (spring-return) cylinder, on/off air blow, a clamp, switching a vacuum generator or suction cup, and piloting a larger valve.
It cannot run a double-acting cylinder. A double-acting cylinder needs air alternately on two sides, which takes a 5-port valve — the AirTAC 4V series.
Where the Airtac 3V3 Solenoid Valve 3V308NCB Is Used
Stopper cylinder on a conveyor transfer line
Raises and lowers a spring-return stopper from a 24 V PLC output; the NC state drops the stopper whenever the controller output goes low.
Vacuum cup gripping on a case erector
Holds and releases carton blanks through vacuum cups, with the body rated for negative pressure down to -102.2 kPa.
Pilot control of a large diaphragm process valve
Switches the pilot air of a bigger valve from a 24 V control panel, venting the pilot line to exhaust when the coil is de-energised.
Is the Airtac 3V3 Solenoid Valve 3V308NCB the Right Part?
Because 3V3 is the largest 3-port body, the only sizing direction is downward: 3V2 if Cv 0.18-0.19 is enough (it is vacuum-rated as well), 3V2M at Cv 0.1 when manifold density matters more than flow, or 3V1 for minimal low-power duties. Run the five-point check: PT1/4 port (G and NPT on request), normally closed state, DC24V coil, DIN plug entry, and vacuum suitability - met here, since the 3V3 body carries the -102.2 kPa to 0.1 MPa rating. Double-acting cylinders need the 5-port 4V series instead.
Confirm before you order
- ✓ Port size and thread (PT from stock; G / NPT to order)
- ✓ Initial state — NC or NO, ordered up front
- ✓ Coil voltage matches your controller output
- ✓ Electrical entry — DIN plug or flying lead
- ✓ Single valve, bare base, or complete assembly
- ✓ Single-acting duty, not double-acting
Installation & Wiring Notes
- check Use clean air filtered to 40µm or finer.
- check Stay within 0-0.8 MPa (0-114 psi) operating pressure.
- check Match the coil voltage to your controller output.
- check Use the manual override to test before powering up.
- check Leave the exhaust port clear, or fit a silencer.
- check Wiring by qualified personnel, per AirTAC documentation.
Airtac 3V3 Solenoid Valve 3V308NCB FAQ
Direct-acting 3/2 poppet with spring return: Cv 0.62, pressure 0-0.8 MPa, vacuum rating -102.2 kPa to 0.1 MPa, temperature -20 to 70 C, DC24V coil at 6.5 W (AC coils in the family take 10 VA), IP65 housing, 40 um filtration, manual override included.
Three ports mean it either feeds or vents one line: ideal for single-acting spring-return cylinders, clamps, air blow, vacuum switching and piloting larger valves. A double-acting cylinder needs simultaneous feed and return paths, so specify a 5-port AirTAC 4V valve instead.
