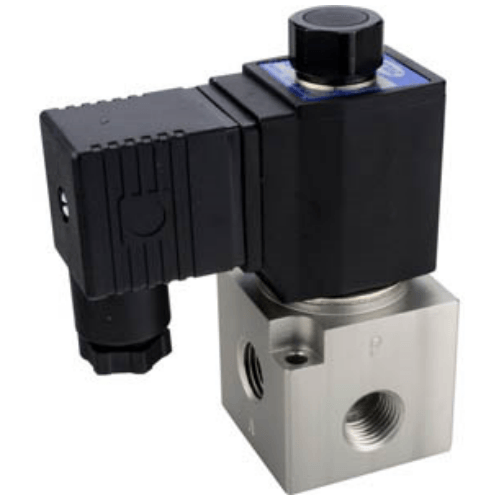

Airtac 3V3 Solenoid Valve 3V308NCE
The AirTAC Airtac 3V3 Solenoid Valve 3V308NCE is a genuine 3-port 2-position (3/2) solenoid valve with 1/4 in ports. It either feeds its outlet or vents it to exhaust, which is what makes it the valve for single-acting cylinders, on/off air blow, clamping, vacuum switching and pilot duty.
- Valve type3/2-way (3-port, 2-position)
- Initial stateNormally closed
- Port size1/4 in
- Coil voltageAC24V
- Electrical entryDIN plug (DIN socket type)
- Flow (Cv)0.62
- Series3V3
- No minimum order. A single piece can be ordered.
- Ready in 3–5 business days. That is the time we take to process the order and hand it to the carrier. Transit time after that depends on the destination.
About the Airtac 3V3 Solenoid Valve 3V308NCE
3V308NCE runs its coil on AC24V, the low control voltage common on machine-tool and industrial control circuits, delivered through a DIN plug on the coil body. The valve is normally closed and direct-acting: a single solenoid against a spring, with a coaxial poppet that seats the 1/4in PT outlet until the coil is energised. Three ports mean it either feeds the line or dumps it to exhaust.
Despite the modest-looking coil, the air side is the strongest in the 3V family: Cv 0.62 lets a single 1/4in valve serve a larger single-acting cylinder or a wide blow-off nozzle. The AC24V coil is rated 10 VA, and the housing carries IP65 (DIN 40050) protection against dust and washdown splashes.
Airtac 3V3 Solenoid Valve 3V308NCE Technical Specifications
| Model | Airtac 3V3 Solenoid Valve 3V308NCE |
|---|---|
| Series | 3V3 |
| Valve type | 3/2-way (3-port, 2-position) |
| Function | Direct-acting, single solenoid, spring return |
| Initial state | Normally closed |
| Port size | 1/4 in |
| Thread | PT |
| Coil voltage | AC24V |
|---|---|
| Electrical entry | DIN plug (DIN socket type) |
| Coil power | 10 VA |
| Operating pressure | 0-0.8 MPa (0-114 psi) |
| Vacuum service | Rated -102.2 kPa to 0.1 MPa |
| Flow coefficient | Cv 0.62 |
| Temperature | -20 to 70 C |
| Construction | Coaxial shut-off (poppet), direct-acting, spring return |
| Protection | IP65 (DIN 40050) |
| Medium | Air, filtered by a 40 µm or finer element. Lubrication not required. |
Figures follow the official AirTAC 3V3 catalogue. Confirm coil voltage and thread (PT / NPT / G) against the product label before wiring.
Model Code: Airtac 3V3 Solenoid Valve 3V308NCE
| 3V3 | Body — sets the flow, the coil power and whether vacuum is rated. |
|---|---|
| 1/4 in | Port size. M5, 06 = 1/8 in, 08 = 1/4 in, 10 = 3/8 in. |
| NC | Normally closed: no air at the outlet until the coil is energised. |
| AC24V | Coil voltage. A = AC220V, B = DC24V, C = AC110V, E = AC24V, F = DC12V. |
| — | Electrical entry: I = flying lead, otherwise a DIN plug. |
| PT | Port thread. PT ships from stock; G and NPT are available to order. |
What a 3/2 Valve Does
A 3/2 valve has three ports — supply, outlet and exhaust — and two states. It either feeds the outlet or vents it to exhaust, and that is the whole job.
That makes it the right valve for a single-acting (spring-return) cylinder, on/off air blow, a clamp, switching a vacuum generator or suction cup, and piloting a larger valve.
It cannot run a double-acting cylinder. A double-acting cylinder needs air alternately on two sides, which takes a 5-port valve — the AirTAC 4V series.
Where the Airtac 3V3 Solenoid Valve 3V308NCE Is Used
Coolant-chip air blast on a lathe
Operates a short-burst air nozzle that clears the cutting zone on a CNC lathe, controlled safely from the machine's 24V AC control circuit.
Fixture clamp on a milling jig
Pressurises and vents a spring-return swing clamp on a milling fixture, so the jig releases automatically the moment the solenoid drops out.
Seal-bar lift on a bagging machine
Raises and lowers a spring-return seal bar on a packaging line, with the NC state holding the bar up and the line vented whenever the coil is off.
Is the Airtac 3V3 Solenoid Valve 3V308NCE the Right Part?
Sizing from here is a downward move, since 3V3 is the top of the 3-port range. Take 3V2 (1/8in or 1/4in, Cv 0.18-0.19, vacuum-rated too) if Cv 0.62 is surplus, 3V2M (Cv 0.1) if you are filling a multi-station manifold and flow is secondary, or 3V1 for the smallest duties (3.0 W on DC24V). Before ordering, settle five items: port and thread (PT1/4 standard, G and NPT available as order options), initial state (NC here), coil voltage (AC24V on this code), electrical entry (DIN plug), and any vacuum involvement in the duty. Double-acting cylinders call for the 5-port AirTAC 4V family instead.
Confirm before you order
- ✓ Port size and thread (PT from stock; G / NPT to order)
- ✓ Initial state — NC or NO, ordered up front
- ✓ Coil voltage matches your controller output
- ✓ Electrical entry — DIN plug or flying lead
- ✓ Single valve, bare base, or complete assembly
- ✓ Single-acting duty, not double-acting
Installation & Wiring Notes
- check Use clean air filtered to 40µm or finer.
- check Stay within 0-0.8 MPa (0-114 psi) operating pressure.
- check Match the coil voltage to your controller output.
- check Use the manual override to test before powering up.
- check Leave the exhaust port clear, or fit a silencer.
- check Wiring by qualified personnel, per AirTAC documentation.
Airtac 3V3 Solenoid Valve 3V308NCE FAQ
Flow coefficient Cv 0.62, operating pressure 0-0.8 MPa (0-114 psi), vacuum service rating -102.2 kPa to 0.1 MPa, working temperature -20 to 70 C, coil power 10 VA on AC and 6.5 W on DC, ingress protection IP65 (DIN 40050). The valve is a 3/2 direct-acting poppet type, single solenoid with spring return, on a 1/4in PT port. Air should be filtered to 40 um or finer.
It is built for single-acting, spring-return actuators: clamp and press cylinders, air blow nozzles, vacuum switching on cups and ejectors, and pilot lines feeding larger valves. It cannot drive a double-acting cylinder - that needs both a pressurise and an exhaust connection at the actuator, which calls for a 5-port valve from AirTAC's 4V series.
