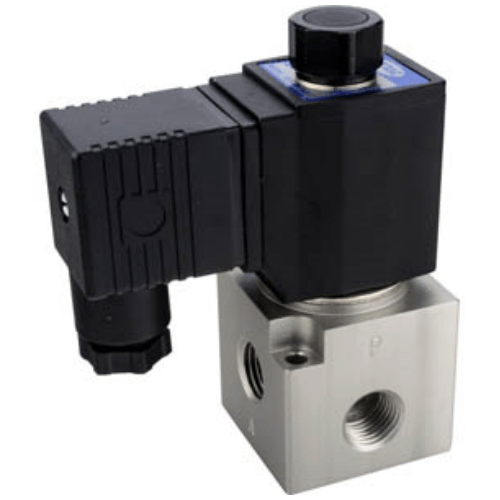

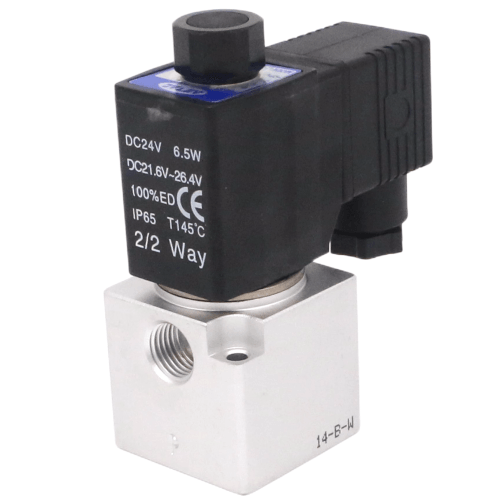

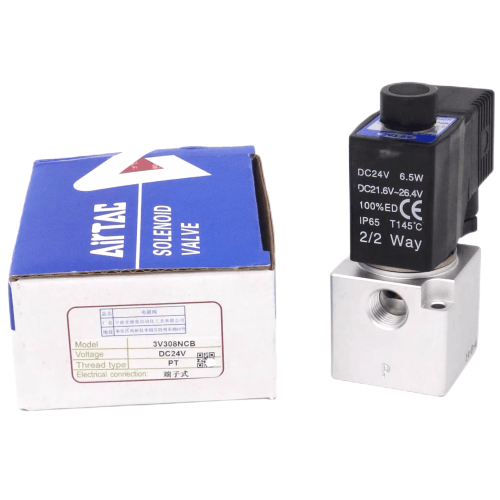

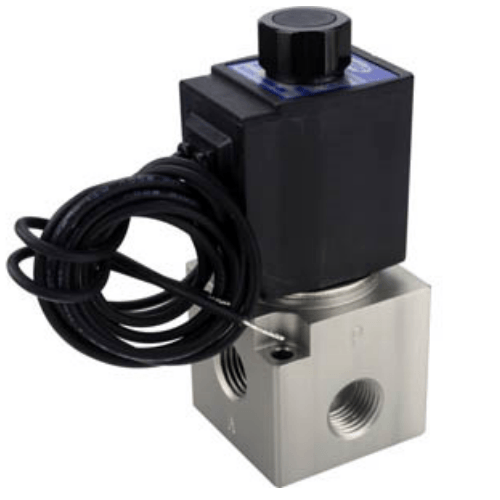

Airtac 3V3 Solenoid Valve 3V308NOA
2、Normally Closed (NC) and Normally Open (NO) configurations available;
3、Co-axial poppet structure ensures superior sealing performance and high flow capacity;
4、Maintenance-free operation without lubrication required;
5、Integrated manual override for simplified installation and commissioning;
6、Multiple standard voltage options compliant with international specifications.
Category: Solenoid Valves , Brand: Airtac , Series: 3V3
AirTAC 3V308NOA Solenoid Valve Technical Specifications
- Model: 3V308NOA
- Type: 3-position, 5-way (3V3) normally open with double solenoid operation
- Port size: PT1/4 (G1/8 optional)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Flow capacity: 750 l/min (ANR) at 0.5 MPa
- Weight: 250g ±5% (excluding connectors)
- Dimensions: 55mm(L) × 40mm(W) × 75mm(H)
- Seal material: Heat-resistant NBR (Nitrile) with glass fiber reinforced PBT body
- Temperature tolerance: -10℃ to 80℃ (with intermittent operation up to 100℃)
- Power consumption: ≤2.5W (DC models), ≤3.5VA (AC models)
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Protection class: IP67 (dust/water resistant)
- Port thread depth: 10mm minimum engagement
High-flow proportional control valve featuring dual-coil latching design for position memory function. The 3V308NOA's asymmetric spool structure ensures precise mid-position control, with hardened stainless steel guides preventing metal-to-metal contact. Compatible with ISO 15407-1 standards, it maintains stable performance in high-vibration environments.
- Multi-position pneumatic clamping systems
- Automated production line sequencing
- Plastic injection molding machine controls
- Robotic arm end-effector switching
- Packaging machine diverters & actuators
Installation requirements:1. Maintain horizontal mounting orientation (±15° tolerance)
2. Use 5μm filtered air with ISO 8573-1:2010 Class 3.4.2 quality
3. Install silencers on exhaust ports for noise-sensitive areas
4. Recommended maintenance: Lubricate spool every 5 million cycles
5. Maximum allowable lateral piping load: 15N
| Property | Property Value |
|---|---|
| sku | 3V308NOA |
| Position | 3-Port 2-Position |
| Initial Position | Normally Open |
| Port Size | PT1/4 |
| Standard Voltage | AC220V |
