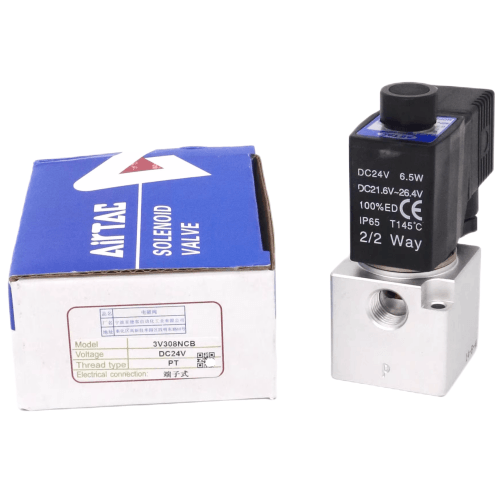

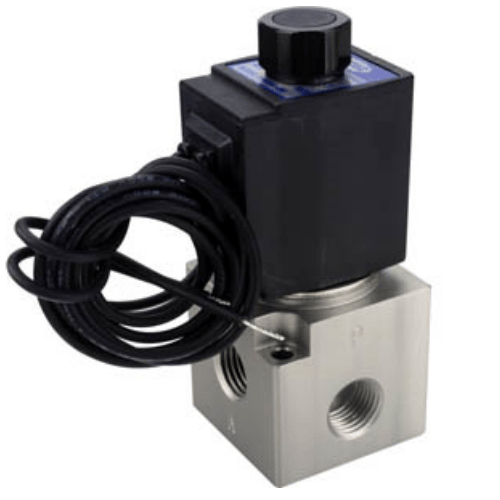

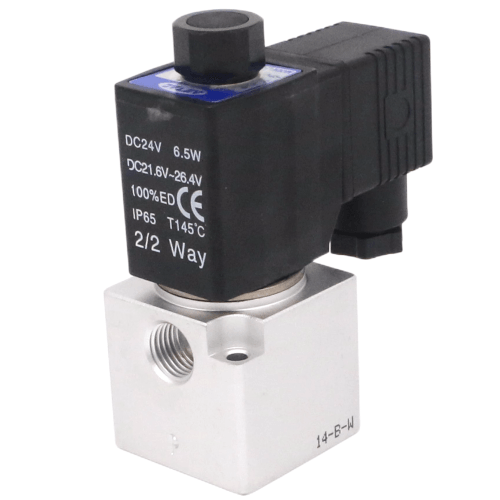

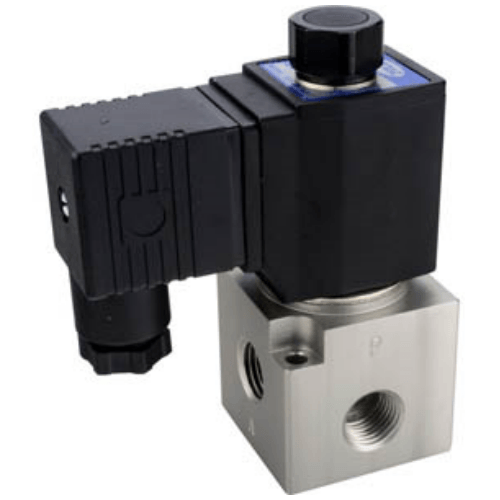

Airtac 3V3 Solenoid Valve 3V308NOBI
2、Normally Closed (NC) and Normally Open (NO) configurations available;
3、Co-axial poppet structure ensures superior sealing performance and high flow capacity;
4、Maintenance-free operation without lubrication required;
5、Integrated manual override for simplified installation and commissioning;
6、Multiple standard voltage options compliant with international specifications.
Category: Solenoid Valves , Brand: Airtac , Series: 3V3
AirTAC 3V308NOBI Solenoid Valve Technical Specifications
- Model: 3V308NOBI
- Type: 3/2-way normally open (direct-acting)
- Port size: PT3/8 (G3/8 optional)
- Operating pressure range: 0.05–1.0 MPa
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Max flow rate: 850 L/min (ANR)
- Response time: ≤15ms (at 0.5MPa)
- Seal material: FKM (Viton® fluorocarbon rubber)
- Temperature range: -10℃ to 80℃ (non-freezing)
- Power consumption: DC: 3.5W max | AC: 4.5VA max
- Protection rating: IP67 (dust-tight & temporary immersion protection)
- Weight: 480g ±5% (with coil)
- Dimensions: 76mm(L) × 54mm(W) × 95mm(H) (including electrical connector)
- Port thread depth: 13mm (with 2.5mm pitch)
- Max allowable viscosity: 20 cSt
High-flow solenoid valve with rapid response characteristics, featuring military-grade brass body with triple chrome plating for extreme environments. The double-seal structure prevents internal leakage even under pressure fluctuations. Requires 5μm filtered compressed air with ISO 8573-1:2010 Class 3.4.2 air quality standard compliance.
- High-speed pneumatic presses (stamping/cutting machines)
- Automated assembly line clamping systems
- CNC machine tool coolant control
- Food processing pneumatic actuators (oil/fat-resistant version available)
- Railway braking system test benches
Operational guidance:
For continuous duty cycles exceeding 80% ON-time, install heat sinks (model HS-3V3).
Lubrication interval: Every 5 million cycles or 12 months (whichever comes first) using ISO VG32 turbine oil.
- Port 1 (P): Pressure inlet (↑ arrow marking)
- Port 2 (A): Actuator output
- Port 3 (R): Exhaust (silencer integrated)
| Property | Property Value |
|---|---|
| sku | 3V308NOBI |
| Position | 3-Port 2-Position |
| Initial Position | Normally Open |
| Port Size | PT1/4 |
| Standard Voltage | DC24V |
