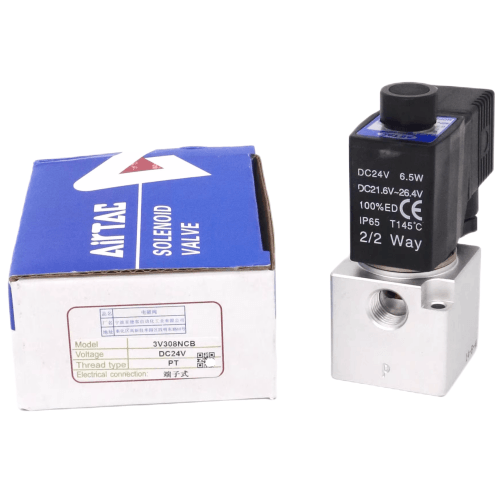

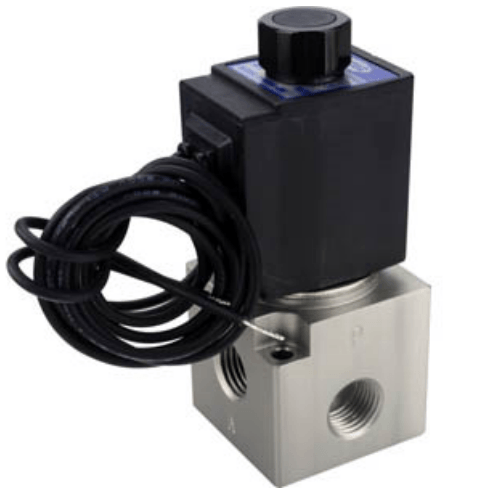

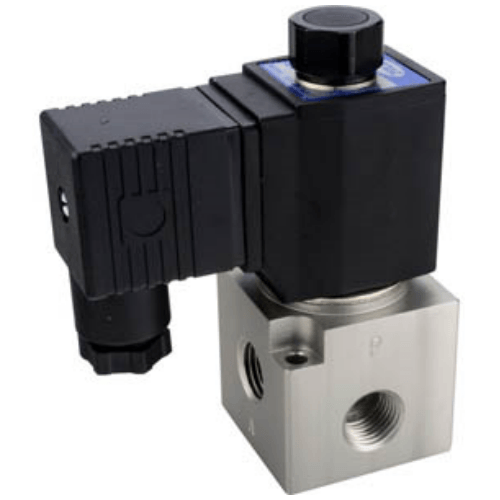

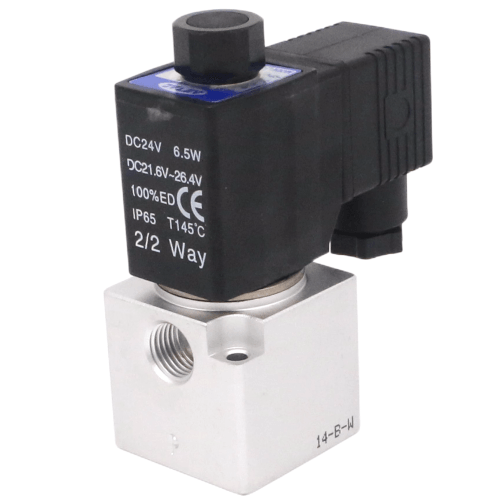

Airtac 3V3 Solenoid Valve 3V308NOEI
2、Normally Closed (NC) and Normally Open (NO) configurations available;
3、Co-axial poppet structure ensures superior sealing performance and high flow capacity;
4、Maintenance-free operation without lubrication required;
5、Integrated manual override for simplified installation and commissioning;
6、Multiple standard voltage options compliant with international specifications.
Category: Solenoid Valves , Brand: Airtac , Series: 3V3
AirTAC 3V308NOEI Solenoid Valve Technical Specifications
- Model: 3V308NOEI
- Valve type: 3-position 5-way (3V3 series)
- Operation mode: Double solenoid pilot-operated
- Port configuration: PT3/8 (G3/8 optional)
- Operating pressure range: 0.15–1.0 MPa
- Voltage variants: DC12V, DC24V, AC110V (50/60Hz), AC220V (50/60Hz)
- Max flow rate: 850 L/min (ANR)
- Body material: Die-cast aluminum alloy (anodized)
- Seal material: Heat-resistant NBR (option: FKM for high temp)
- Ambient temperature: -5℃ to 60℃ (standard) / -10℃ to 80℃ (FKM version)
- Response time: ≤20ms (at rated voltage)
- Durability: ≥10 million cycles
- Protection class: IP67 (connector meets IEC60529)
- Weight: 320g ±5% (without accessories)
- Dimensions: 58mm(W) × 38mm(H) × 105mm(L)
- Mounting: ISO 5599-1 standard subplate
- Port thread depth: 12mm (minimum engagement)
Industrial-grade 5/3-way solenoid valve featuring dual coil redundancy and position feedback options. The aluminum body with hard anodizing resists chemical corrosion in harsh environments. Enhanced flow path design reduces pressure drop by 15% compared to previous generation models. Requires 5μm filtered/dried air (ISO 8573-1 class 4) with lubrication optional.
- Automated assembly line cylinder control
- Plastic injection molding machine actuators
- Material handling systems with bi-directional cylinders
- Textile machinery tension control mechanisms
- Food processing equipment (FDA-compliant seal option available)
Installation guidelines:
Use anti-vibration mounting brackets in high-shock environments.
Maintain ambient humidity below 85% RH. For horizontal mounting,
install exhaust silencers at downward angles to prevent condensate ingress.
Minimum 15mm clearance required above coil for heat dissipation.
| Property | Property Value |
|---|---|
| sku | 3V308NOEI |
| Position | 3-Port 2-Position |
| Initial Position | Normally Open |
| Port Size | PT1/4 |
| Standard Voltage | AC24V |
