Airtac 400M Solenoid Valve Manifold Base 400M11F
$93.02
Regular price
$100.52
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
400M11F
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description

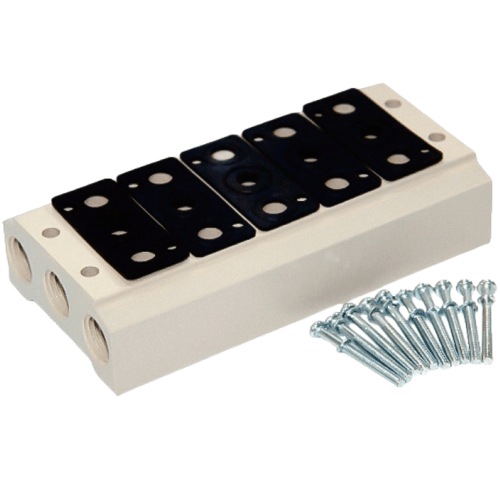

400M Solenoid Valve Manifold Bases
1. Enables integration of same-series directional control valves into manifold groups, achieving space-saving installation and cost-effective system solutions;
2. Features unified intake/exhaust ports and centralized wiring configuration, simplifies troubleshooting and maintenance through streamlined pneumatic circuit management;
3. Modular design with high scalability, allowing flexible configuration and expansion of connected directional control valve quantities according to application requirements;
Category: Solenoid Valve Manifold Bases | Brand: AirTAC | Series: 400M
Installation note:
Apply 3-5Nm torque during valve mounting. Use PTFE tape only on external ports,
never on manifold-valve interface. Align manifold within 0.5° level tolerance.
AirTAC 400M11F Manifold Base Specifications
- Model: 400M11F
- Type: ISO 15407-2 compliant modular manifold base
- Port configuration: 4-station manifold with 1/8" NPT(F) ports
- Material: Anodized aluminum alloy (A6063-T5)
- Max operating pressure: 1.0 MPa (145 psi)
- Temperature range: -5℃ to 80℃ (with NBR seals)
- Surface hardness: HV 12°±2° (anodized layer)
- Mounting pattern: ISO 15407-2 standard footprint
- Weight: 380g ±5%
- Dimensions: 140mm(L) × 34mm(W) × 25mm(H)
- Port thread depth: 10mm (full engagement)
- Seal compatibility: Compatible with NBR/FKM/EPDM seals
- Surface roughness: Ra ≤1.6μm (sealing surfaces)
- Pressure drop: ≤0.02 MPa @ 0.5 MPa supply
Precision-machined manifold base enabling multi-valve consolidation in pneumatic systems. Features individual station isolation to prevent cross-bleeding, with integrated pressure retention channels. Compatible with 400M series valves and optional fieldbus controllers.
Typical Applications:
- Multi-axis robotic tool changers
- Beverage filling line cluster control
- Plastic injection molding machine manifolds
- Automated assembly station sequencing
- CNC machine tool clamping systems
Installation note:
Apply 3-5Nm torque during valve mounting. Use PTFE tape only on external ports,
never on manifold-valve interface. Align manifold within 0.5° level tolerance.
| Property | Property Value |
|---|---|
| sku | 400M11F |
