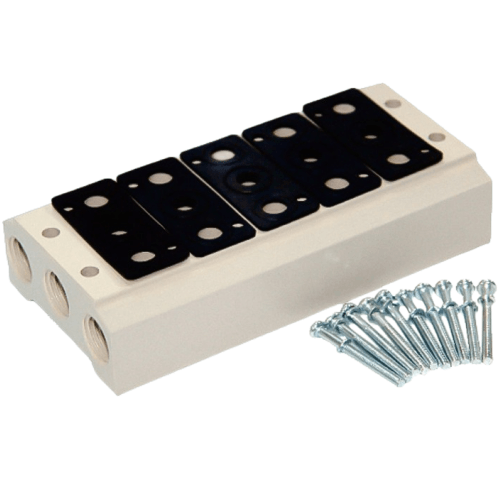

Airtac 400M Solenoid Valve Manifold Base 400M12F
AirTAC 400M12F Manifold Base Specifications
- Model: 400M12F
- Type: Modular pneumatic manifold base (12-station)
- Port size: PT1/4 (G1/4 optional)
- Compatible valves: 4V210, 4V220, 4V230 series & most 10mm width solenoid valves
- Material: Aluminum alloy (A6063-T5)
- Surface treatment: Anodized finish (black)
- Installation pitch: 12mm between valve stations
- Max operating pressure: 1.0 MPa
- Temperature range: -5℃ to 60℃
- Seal material: NBR (Nitrile rubber)
- Weight: ~300g (bare base)
- Dimensions: 80mm(L) × 40mm(W) × 25mm(H)
- Mounting hole spacing: 30mm × 50mm (horizontal × vertical)
- Flow capacity: 650 NL/min (at 0.5 MPa)
- Certification: ISO 15407-1 compliant
Multi-station modular base enabling centralized control of pneumatic circuits through valve stacking. Features precision-machined air passages with cross-drilled flow channels for minimal pressure drop. Includes integrated silencer grooves and standardized mounting pattern for DIN rail or panel installation.
- Multi-axis pneumatic actuator control systems
- Automated assembly line sequencing units
- Packaging machine clamp/fixture coordination
- Plastic injection molding machine auxiliary controls
- Semiconductor handling equipment manifolds
Installation note:
Apply thread sealant only on manifold base ports (not valve interfaces).
Tighten mounting screws diagonally in 3 stages (30% → 70% → 100% torque)
to ensure even pressure distribution. Max torque 1.2N·m.
