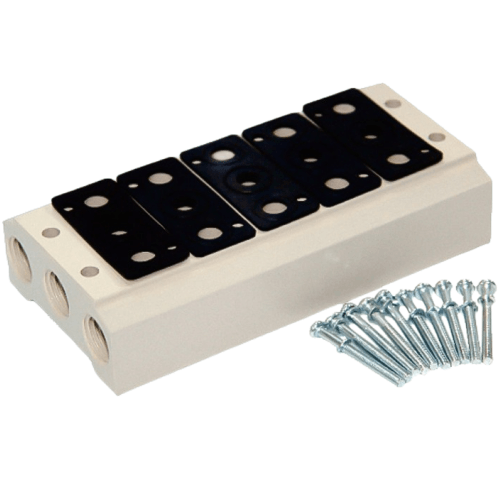

Airtac 400M Solenoid Valve Manifold Base 400M13F
AirTAC 400M13F Valve Manifold Base Specifications
- Model: 400M13F
- Type: Modular valve base for multi-valve assembly
- Port size: PT1/4 (G1/4 optional)
- Mounting hole spacing: 33mm (ISO 4401 standard)
- Material: Anodized aluminum alloy (AL6063-T5)
- Compatibility: 400/410/420 series solenoid valves
- Max working pressure: 0.7 MPa (7 bar/102 psi)
- Temperature range: -5℃ to 80℃ (non-freezing)
- Seal material: NBR (Nitrile rubber)
- Surface roughness: Ra ≤3.2μm (sealing face)
- Weight: 0.45kg (bare base), 1.2kg (fully loaded)
- Dimensions: 100mm(L) × 33mm(W) × 30mm(H)
- Port thread depth: 12mm (minimum engagement)
- Leakage rate: ≤3 bubbles/min (ISO 9978 test)
Multi-channel distribution base designed for building compact pneumatic control systems. Features precision-machined flow channels with cross-sectional area of 18mm² for minimal pressure drop. The staggered port design allows 360° manifold connection flexibility. Includes built-in pilot air isolation grooves to prevent cross-talk between valves.
- Centralized control of 4-12 pneumatic actuators
- Automated assembly line clamping systems
- Multi-station packaging machinery
- Plastic injection molding machine valve clusters
- CNC tool changer pneumatic circuits
Installation protocol:
Apply 3-5Nm torque using M5x25 mounting screws (ISO 4762).
Use Loctite 542 thread sealant on ports. Align manifold blocks within
0.1mm parallelism tolerance during stacking.
