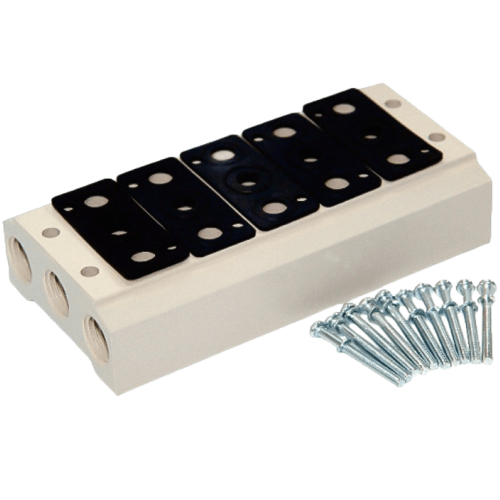

Airtac 400M Solenoid Valve Manifold Base 400M15F
AirTAC 400M Series Manifold Base 400M15F Technical Details
- Model: 400M15F (M15 thread series)
- Type: Modular pneumatic manifold base
- Port configuration: 1-in/1-out with 5 stations
- Port size: PT1/4 (G1/8 optional)
- Max operating pressure: 1.0 MPa
- Voltage compatibility: Works with all 400M series solenoid valves (DC12V-AC220V)
- Weight: 298g ±5g
- Dimensions: 60mm(L) × 40mm(W) × 25mm(H)
- Seal material: Oil-resistant NBR (Nitrile)
- Temperature range: -20℃ to 80℃ (non-freezing)
- Surface treatment: Anodized aluminum alloy
- Mounting: DIN rail or direct screw mounting
- Port pitch: 15mm center-to-center
High-density modular base designed for building multi-valve pneumatic control systems. Features precision-machined air channels with cross-ported exhaust options. The 5-station design allows centralized control while minimizing space - each station supports individual valve control through quick-connect terminals. Compatible with 400M series valves for customized circuit configurations.
- Multi-axis pneumatic actuator synchronization
- Production line sequencing systems
- Plastic injection molding machines
- Textile machinery air circuit distribution
- Automated packaging systems with multi-cylinder control
Installation protocol:
Use M4 mounting screws with 0.7Nm torque max. Apply pipe sealant only on male threads,
never on manifold surface. Perform air tightness test at 0.8MPa for 5min after assembly.
| Property | Property Value |
|---|---|
| sku | 400M15F |
