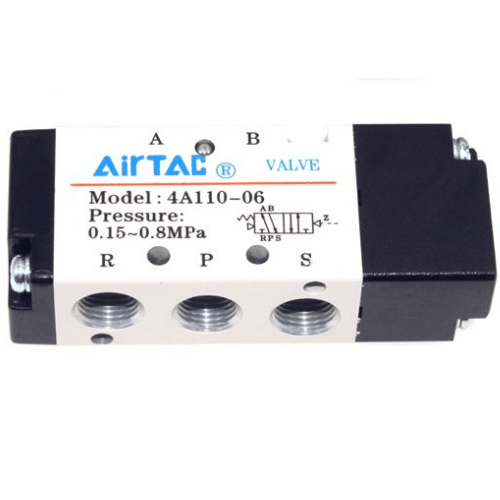

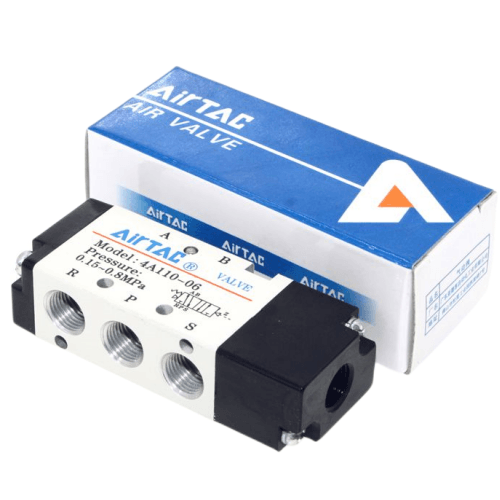

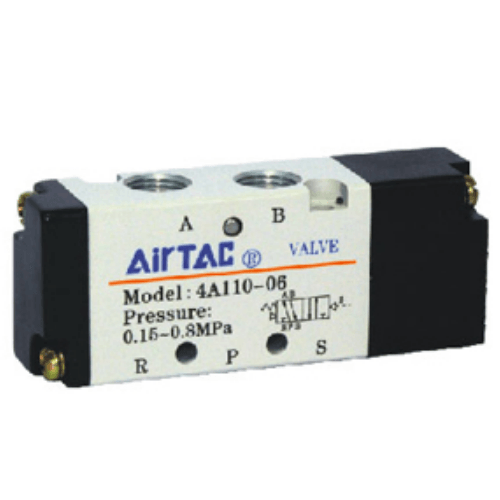

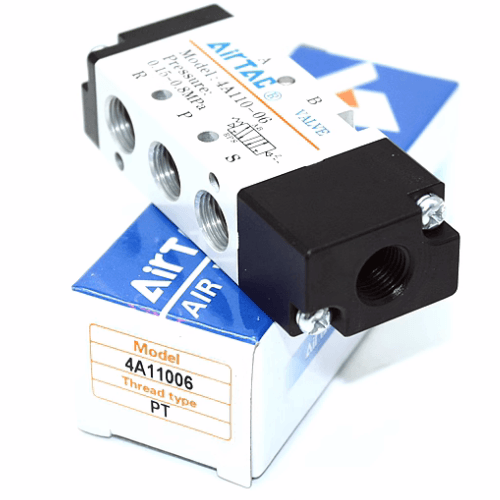

Airtac 4A100 Pneumatic Control Valve 4A110M5
2. Three-position pneumatic valve offers three selectable mid-position functions;
3. Dual-head 2-position configuration features memory retention capability;
4. Specialized machining processes for internal bores achieve low frictional resistance, low activation pressure, and extended service life;
5. Oil-free lubrication required;
6. Compatible with manifold base integration for space-efficient installation;
Category: Pneumatic Control Valves | Brand: AirTAC | Series: 4A100
AirTAC 4A100/4A110M5 Pneumatic Control Valve Technical Details
- Model Series: 4A100 (Base) / 4A110M5 (Enhanced)
- Valve Type: 5-port 2-position (5/2-way) pilot-operated
- Port Thread: G1/8 (ISO228 standard) with M5 sub-ports
- Operating Pressure: 0.05–1.0 MPa (7-145 PSI)
- Max Flow Rate: 750 L/min (Cv=1.3 at 0.5MPa)
- Actuation: Pneumatic pilot control (air pilot)
- Response Time: ≤80ms (at 0.5MPa)
- Seal Material: HNBR (Hydrogenated Nitrile) with PTFE wear rings
- Body Material: Anodized aluminum alloy (ADC12)
- Temperature Range: -10℃ to 80℃ (14°F to 176°F)
- Weight: 420g ±5% (including manifold base)
- Dimensions: 54mm(W) × 45mm(H) × 112mm(L)
- Mounting: ISO 5599/1 standard interface
- Protection Class: IP54 (dust/water resistant)
- Service Life: ≥5 million cycles (under rated conditions)
High-flow modular pneumatic valve designed for industrial automation systems requiring rapid cycling. Features dual-pressure capability for vacuum and positive pressure applications. The 4A110M5 variant includes integrated M5 sensor ports for position feedback devices. Optimized internal flow paths reduce pressure drop by 18% compared to previous generations.
- Automated assembly line clamping mechanisms
- Plastic injection molding machine ejectors
- CNC tool changers with position verification
- Material handling vacuum gripper systems
- Textile machinery tension control
Installation Guidelines:
Requires 5-7 bar clean dry air (ISO 8573-1:2010 Class 3.4.2).
Lubrication-free operation but compatible with ISO VG32 turbine oil if needed.
For vertical mounting, install exhaust silencers at 15° downward angle.
| Property | Property Value |
|---|---|
| sku | 4A110M5 |
| Position | 5 Ports 2 Position |
| Port Size | M5 |
