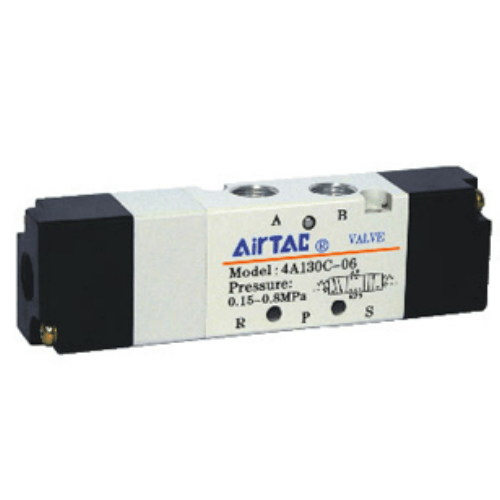

Airtac 4A100 Pneumatic Control Valve 4A130CM5
2. Three-position pneumatic valve offers three selectable mid-position functions;
3. Dual-head 2-position configuration features memory retention capability;
4. Specialized machining processes for internal bores achieve low frictional resistance, low activation pressure, and extended service life;
5. Oil-free lubrication required;
6. Compatible with manifold base integration for space-efficient installation;
Category: Pneumatic Control Valves | Brand: AirTAC | Series: 4A100
AirTAC 4A100 Series 4A130CM5 Pneumatic Control Valve Specifications
- Model: 4A130CM5 (4A100 series)
- Type: 5/2-way single solenoid pilot-operated
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.1–0.8 MPa
- Voltage options: DC24V (±10%), AC220V (50/60Hz)
- Max flow capacity: 850 l/min (ANR)
- Response time: ≤50ms (exhaust to operation)
- Seal material: Heat-resistant NBR (Nitrile)
- Temperature range: -5℃ to 80℃ (non-freezing)
- Manual override: Optional paddle-type actuator
- Weight: 420g ±5% (excluding accessories)
- Dimensions: 58mm(W) × 44mm(H) × 114mm(L)
- Port thread depth: 12mm (minimum engagement)
- Protection rating: IP67 (dust/water resistant)
- Coil insulation class: Class F (155℃)
High-flow directional control valve with low power consumption design (2.5W max), featuring corrosion-resistant aluminum alloy body and brass core components. The 4A130CM5 utilizes a metal seal structure for enhanced durability in high-cycle applications (>10 million operations). Requires 5μm filtered air with ISO 8573-1:2010 Class 3 air quality. Compatible with vacuum applications when paired with EPDM seals (optional).
- Automated assembly line clamping systems
- Plastic injection molding machine actuators
- Textile machinery cylinder control
- Food processing pneumatic circuits (oil-resistant version available)
- Palletizing robot end-effector controls
Installation guidelines:1. Mount in vibration <5m/s² using M5 mounting screws (torque 1.2N·m max)
2. Maintain ambient temperature below 60℃ with 10mm clearance for heat dissipation
3. Use flexible tubing for first 300mm of connections to reduce mechanical stress
Maintenance protocol:Lubricate spool monthly with ISO VG32 turbine oil when used in high humidity (>80% RH) environments. Replace seals every 500,000 cycles in continuous operation.
| Property | Property Value |
|---|---|
| sku | 4A130CM5 |
| Position | 5-port 3-position |
| Port Size | M5 |
