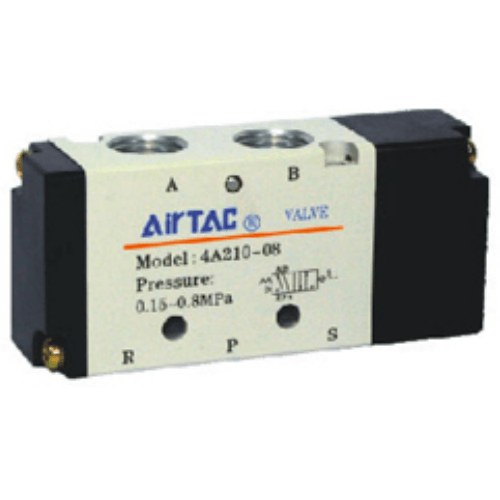

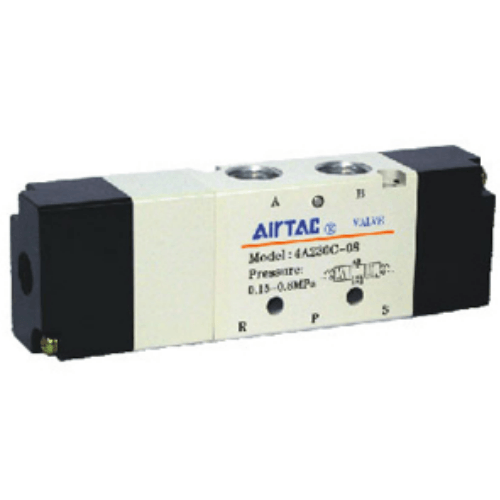

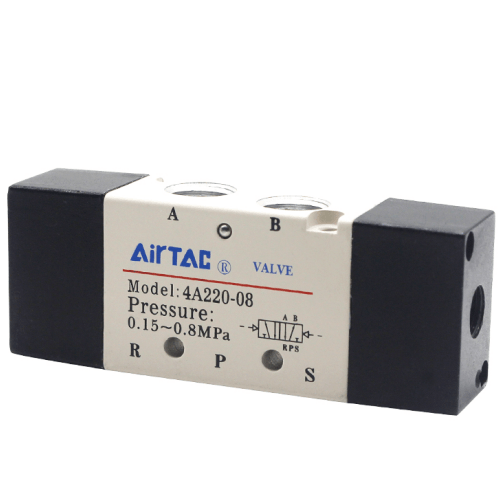

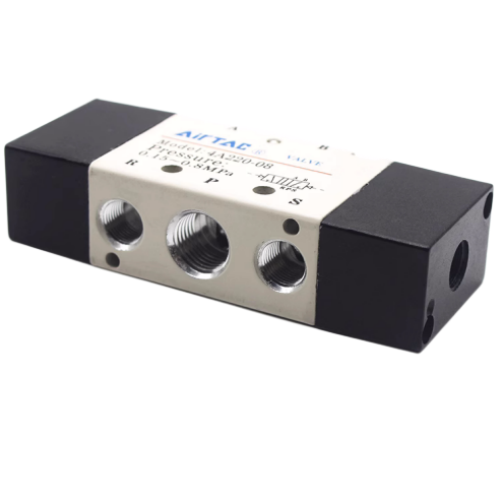

Airtac 4A200 Pneumatic Valve 4A230P08
2、3-position pneumatic valves offer three selectable center position configurations;
3、Double pneumatic pilot 2-position valves feature memory retention capability;
4、Precision-honed internal bore minimizes friction resistance, enables low pilot pressure activation, and guarantees extended service life;
5、Maintenance-free operation requiring no lubrication;
6、Manifold base compatibility for space-efficient system integration;
Category: Pneumatic Valves , Brand: AIRTAC , Series: 4A200
AirTAC 4A230P08 Pneumatic Valve Technical Specifications
- Full model designation: 4A200 series / 4A230P08
- Valve type: 5/2-way, double solenoid operated (bi-stable)
- Port configuration: PT3/8 (G3/8 ISO228-1 standard)
- Effective sectional area: 28mm² (Cv≈1.6)
- Operating pressure range: 0.15–1.0 MPa (21.7–145 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃)
- Seal materials: HNBR (Hydrogenated Nitrile) for dynamic seals, FKM (Fluorocarbon) static seals
- Ambient temperature range: -10℃ to 60℃ (with condensation prevention)
- Response time: ≤20ms (at 0.5MPa)
- Protection rating: IP67 (dust tight and protected against temporary immersion)
- Weight: 620g ±3% (including coil)
- Dimensions: 100mm(L) × 50mm(W) × 45mm(H) (excluding mounting brackets)
- Manual override: Built-in push-button with lock mechanism
- Port thread depth: 12mm (minimum engagement 9mm)
High-flow directional control valve with dual coil configuration, designed for industrial automation systems requiring precise bi-directional actuator control. Features corrosion-resistant aluminum alloy body with hard anodized surface treatment (20μm thickness). Includes LED position indicator and surge protection circuitry. Requires 5μm filtered lubricated air (ISO 8573-1:2010 Class 4.4.2).
- CNC machine tool clamping systems
- Automotive welding robot end-effector control
- Plastic injection molding machine ejectors
- Material handling cylinder sequencing
- Textile machinery tension control systems
Installation guidelines:1. Mount using M5×16mm screws (1.2-1.5N·m torque)
2. Maintain ≥30mm clearance below valve for tubing access
3. Use shielded cable (AWG20-18) for electrical connections
4. Perform weekly manual cycling during standby periods
| Property | Property Value |
|---|---|
| sku | 4A230P08 |
| Position | 5-port 3-position |
| Port Size | PT1/4 |
