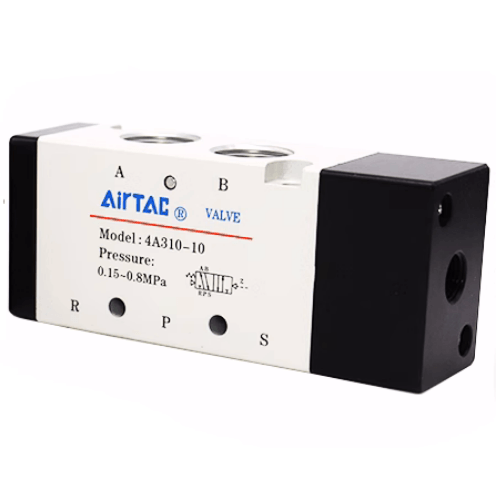

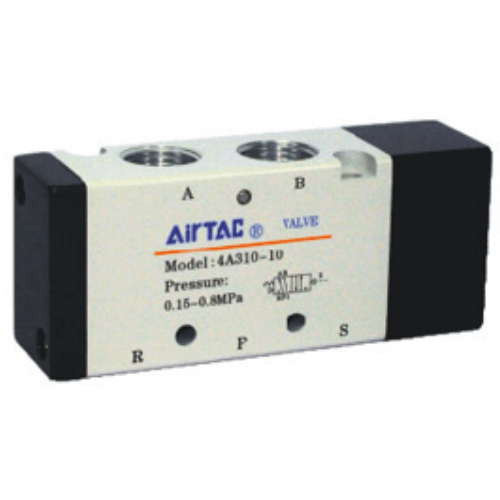

Airtac 4A300 Pneumatic Valve 4A32010
2. 3-position pneumatic valve offers three selectable center position configurations;
3. Double solenoid control for 2-position valve with latching function maintains position memory;
4. Precisely machined internal bore with specialized surface treatment delivers reduced friction resistance, lower actuation pressure, and extended service life;
5. Maintenance-free operation without lubrication requirement;
6. Modular design with base manifold compatibility optimizes space utilization;
Category: Pneumatic Valves, Brand: AirTAC, Series: 4A300
AirTAC 4A300 Series Solenoid Valve 4A32010 Technical Details
- Full model designation: 4A320-10 (4A32010)
- Valve type: 5-port 3-position closed center (closed center in neutral)
- Port configuration: 5/3-way double solenoid operated
- Port size: G1/8 (ISO228/1 standard)
- Operating pressure range: 0.15–1.0 MPa (21.7–145 psi)
- Proof pressure: 1.5 MPa
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃)
- Response time: ≤35ms (excitation), ≤50ms (de-excitation)
- Flow characteristics: CV=0.35 (Kv=0.30) at 0.5MPa
- Seal materials: Main seals-NBR, optional VITON (FKM) for high temp
- Ambient temperature: -5℃ to 60℃ (NBR), -5℃ to 80℃ (FKM)
- Weight: 380g ±5% (including coil)
- Dimensions: 55mm(W) × 45mm(H) × 124mm(L)
- Mounting pattern: ISO 5599/1 standard (compliant with CETOP RP52P)
- Electrical connection: DIN43650 Form A (standard), Form C optional
- Protection class: IP65 (coil), IP40 (valve body)
- Manual override: Optional mechanical override (rotary type)
- Cycle life: ≥10 million cycles (at no-load condition)
Industrial-grade mid-size directional control valve featuring low power consumption (2.2W nominal) with dual redundant seals. The balanced spool design ensures stable operation under fluctuating pressures. Requires filtered compressed air (≤50μm particles, ISO 8573-1 class 4) with lubrication optional. Compatible with vacuum applications when paired with AirTAC V-series accessories.
- Pneumatic press clamping sequence control
- Automated assembly line indexing mechanisms
- Plastic injection molding machine ejectors
- Textile machinery tension control systems
- Semiconductor wafer handling robotics
- Hydraulic system pilot stage control
Installation protocol:
Mount using ISO-standard subplate (4A320-S01). Maintain minimum 20mm
clearance below valve for heat dissipation. For vertical mounting,
orient coil upward to prevent debris accumulation. Perform initial
lubrication with ISO VG32 turbine oil if using non-lubricated air.
Critical note:
When using AC coils, install surge suppressor (included with valve)
within 0.5m of coil terminals. Do not energize coil for >2 minutes
without airflow (risk of overheating).
| Property | Property Value |
|---|---|
| sku | 4A32010 |
| Position | 5 Ports 2 Position |
| Port Size | PT3/8 |
