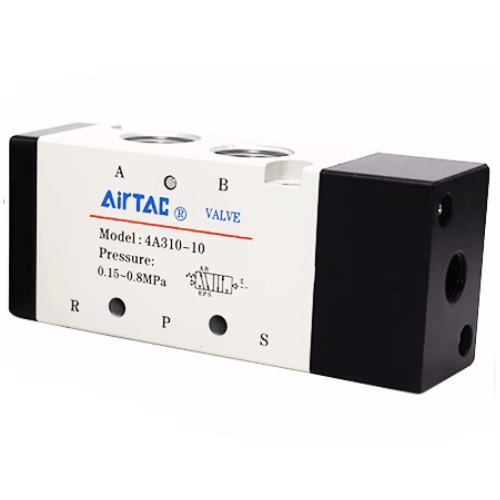

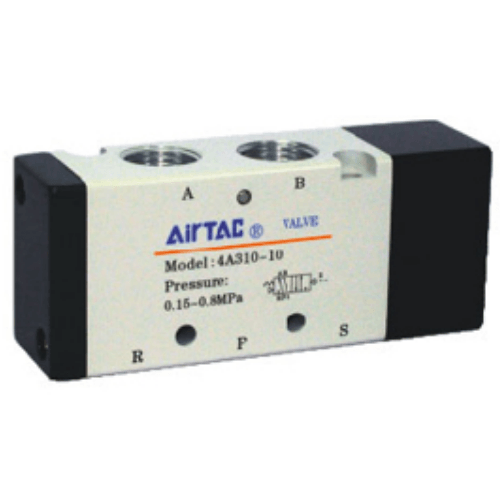

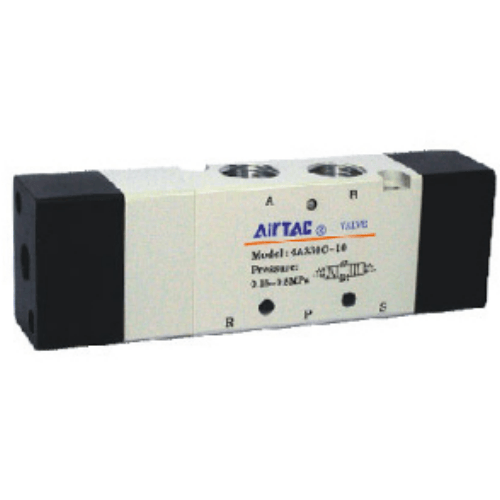

Airtac 4A300 Pneumatic Valve 4A330E10
2. 3-position pneumatic valve offers three selectable center position configurations;
3. Double solenoid control for 2-position valve with latching function maintains position memory;
4. Precisely machined internal bore with specialized surface treatment delivers reduced friction resistance, lower actuation pressure, and extended service life;
5. Maintenance-free operation without lubrication requirement;
6. Modular design with base manifold compatibility optimizes space utilization;
Category: Pneumatic Valves, Brand: AirTAC, Series: 4A300
AirTAC 4A330E10 Pneumatic Valve (4A300 Series) Technical Specifications
- Model: 4A330E10 (4A300 Series)
- Valve type: 5/2-way solenoid pilot operated
- Port size: G1/4 (ISO standard)
- Operating pressure range: 0.15–1.0 MPa
- Max flow capacity: 1,200 NL/min (ANR)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃)
- Response time: ≤20ms (excitation), ≤30ms (de-excitation)
- Seal material: Heat-resistant NBR (-20℃ to 120℃)
- Ambient temperature: -5℃ to 60℃ (with anti-freeze measures below 0℃)
- Protection rating: IP67 (dust/water resistant)
- Port thread depth: 12mm (minimum engagement)
- Weight: 450g ±5% (including coil)
- Dimensions: 58mm(W) × 45mm(H) × 108mm(L)
- Manual override: Built-in emergency switch
- Expected service life: 50 million cycles (at rated conditions)
High-flow directional control valve with optimized spool geometry for rapid cylinder reversal in automation systems. Features dual-color LED status indicator (red/green) and surge protection circuitry. The aluminum alloy body with hard anodizing resists chemical corrosion in harsh environments. Requires ISO 8573-1:2010 Class 3 compressed air (max 5mg/m³ oil content).
- High-speed pick-and-place robotic actuators
- Plastic injection molding machine clamps
- Automotive assembly line pneumatic presses
- Bottle capping machine rotary actuators
- CNC machine tool clamping systems
Installation protocol:
Mount with M5 mounting screws (torque ≤1.2N·m). Maintain minimum 50mm
clearance below valve for heat dissipation. Use locknuts on piping
connections to prevent vibration loosening. Perform monthly
lubrication via air line lubricator (ISO VG32 turbine oil recommended).
| Property | Property Value |
|---|---|
| sku | 4A330E10 |
| Position | 5-port 3-position |
| Port Size | PT3/8 |
