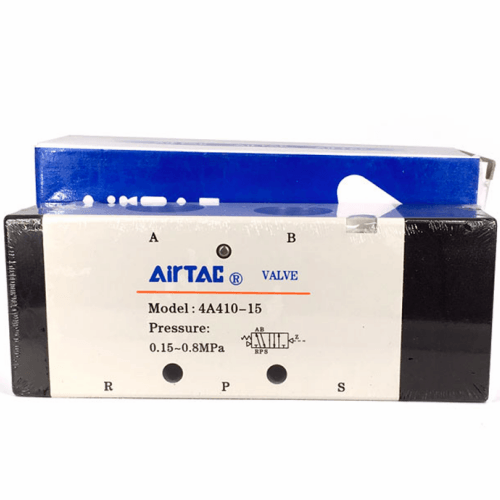

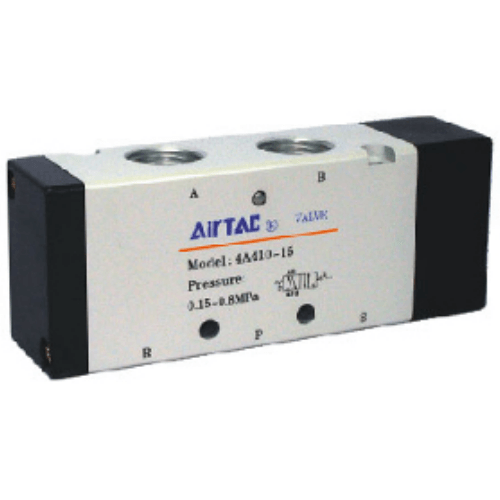

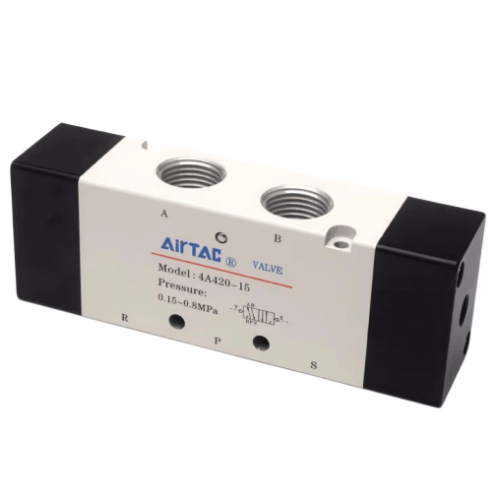

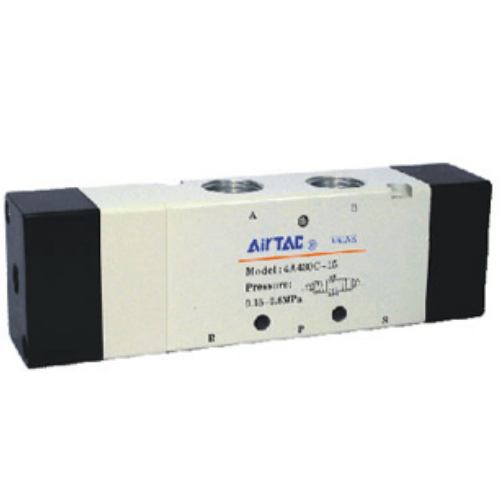

Airtac 4A400 Pneumatic Valve 4A42015
2、Three-position pneumatic valve offers three optional center position configurations (closed/exhaust/pressure);
3、5/2-way dual-pressure pilot operated valves feature memory retention capability;
4、Precision-honed inner bore minimizes friction resistance with low actuation pressure (<0.15MPa) and extended service life;
5、Maintenance-free operation without requiring lubrication;
6、Modular design compatible with base manifolds for space-saving installation solutions;
Category: Pneumatic Control Valves , Brand: AIRTAC , Series: 4A400 Note: Technical adaptations include: 1. Specified center position types (closed/exhaust/pressure) for clarity 2. Added actuation pressure value for engineering reference 3. Used standardized valve designation (5/2-way) 4. Emphasized modularity and system integration benefits 5. Maintained HTML line breaks as requested
AirTAC 4A400 Series Solenoid Valve 4A42015 Technical Details
- Model: 4A42015 (4A400 series)
- Valve type: 5-port 2-position (5/2-way) solenoid operated
- Port thread: G1/8 (BSPP) with optional NPT1/8 adapter
- Operating pressure range: 0.1–1.0 MPa (14.5–145 PSI)
- Voltage variants: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Effective flow rate: 750 l/min (Cv=1.3) at 0.5 MPa
- Seal material: Heat-resistant NBR (Nitrile) standard, optional FKM for chemical resistance
- Ambient temperature: -5℃ to 80℃ (with NBR seals)
- Response time: ≤15ms (energized), ≤20ms (de-energized)
- Weight: 385g ±5% (excluding connectors)
- Dimensions: 56mm(W) × 44mm(H) × 128mm(L) (manifold mounting surface to port ends)
- Protection class: IP67 (dustproof and waterproof immersion up to 1m)
- Porting pattern: ISO 5599-1 standard (modular manifold compatible)
High-flow proportional valve with dual solenoid operation, featuring manual override capability for emergency control. The anodized aluminum body with hardened brass ports ensures durability in high-cycle industrial environments. Requires 5μm filtered lubricated air (ISO 8573-1 class 4) with oil mist concentration of 1-2 drops/m³.
- Pneumatic cylinder sequencing in automated assembly lines
- Clamping/unclamping mechanisms in CNC machining centers
- Material handling systems with rapid cycling requirements
- Plastic injection molding machine ejector controls
- Textile machinery air circuit management
Installation guidelines:
Mount horizontally with coil facing downward to prevent debris accumulation.
Use flexible tubing for the first 300mm of connections to reduce vibration transfer.
Recommended maintenance: Clean internal filters every 2,000 operating hours.
| Property | Property Value |
|---|---|
| sku | 4A42015 |
| Position | 5 Ports 2 Position |
| Port Size | PT 1/2 |
