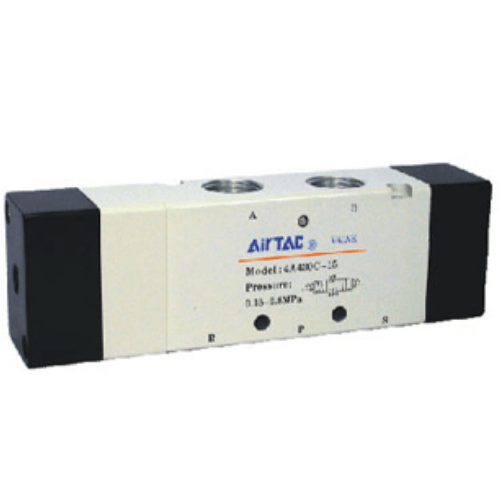

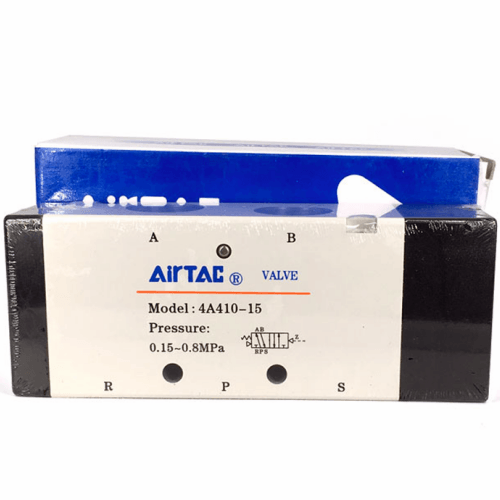

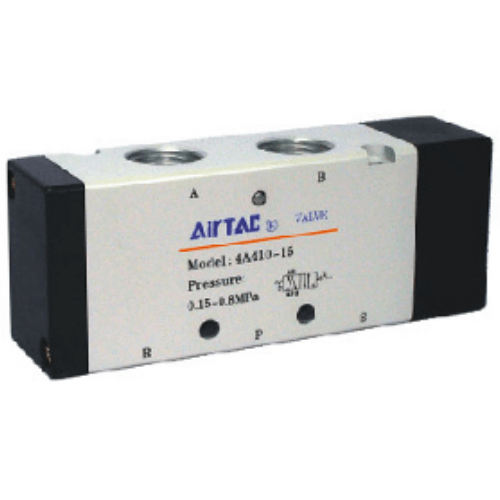

Airtac 4A400 Pneumatic Valve 4A430P15
2、Three-position pneumatic valve offers three optional center position configurations (closed/exhaust/pressure);
3、5/2-way dual-pressure pilot operated valves feature memory retention capability;
4、Precision-honed inner bore minimizes friction resistance with low actuation pressure (<0.15MPa) and extended service life;
5、Maintenance-free operation without requiring lubrication;
6、Modular design compatible with base manifolds for space-saving installation solutions;
Category: Pneumatic Control Valves , Brand: AIRTAC , Series: 4A400 Note: Technical adaptations include: 1. Specified center position types (closed/exhaust/pressure) for clarity 2. Added actuation pressure value for engineering reference 3. Used standardized valve designation (5/2-way) 4. Emphasized modularity and system integration benefits 5. Maintained HTML line breaks as requested
AirTAC 4A430P15 Pneumatic Valve (4A400 Series) Specifications
- Model: 4A430P15
- Type: 5/2-way single solenoid controlled (spring return)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.15–0.8 MPa (21.7–116 psi)
- Voltage variants: DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Coil insulation class: Class F (155℃)
- Response time: ≤15ms (energize), ≤20ms (de-energize)
- Flow coefficient (Cv): 2.2
- Weight: 480g ±5% (including coil)
- Dimensions: 60mm(L) × 45mm(W) × 92mm(H)
- Seal material: NBR (Nitrile) standard / FKM (Viton) optional
- Ambient temperature: -5℃ to 70℃ (non-freezing)
- Protection rating: IP67 (coil), IP40 (valve body)
- Lubrication: Pre-lubricated (DO NOT add extra oil)
- Port thread depth: 12mm (minimum engagement 9mm)
High-flow 5-port pneumatic directional valve with metal body construction, optimized for industrial automation systems requiring rapid cycling. Features dual-pressure capability and surge-protected coil design. Requires 5μm filtered air with ISO 8573-1:2010 Class 3.4.3 standards. Compatible with vacuum applications when paired with EPDM seals (optional).
- High-speed packaging machinery cylinder control
- Plastic injection molding machine ejectors
- Automated conveyor sorting systems
- CNC machine tool clamping devices
- Bottle filling/palletizing equipment
- Automotive welding robot end effectors
Installation protocol:
Mount in vibration-free environment using M4 mounting screws (max torque 1.2N·m).
Maintain ≥20mm clearance from electromagnetic sources. Perform monthly manual
override tests using side-mounted emergency button.
| Property | Property Value |
|---|---|
| sku | 4A430P15 |
| Position | 5-port 3-position |
| Port Size | PT 1/2 |
