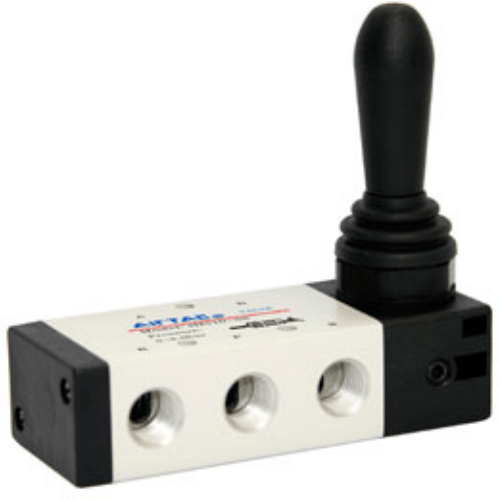

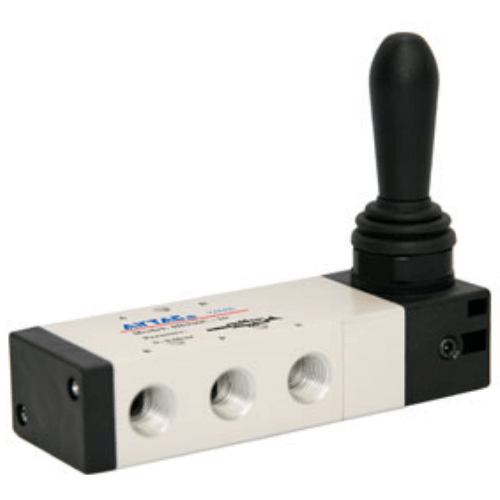

Airtac 4H Manual Valve 4H21006
2、Spool-type structure provides excellent sealing performance, compact dimensions, lightweight design, and tool-free assembly/disassembly;
3、Bore surfaces processed with specialized techniques for reduced friction resistance and extended service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Panel-mount capability with simplified installation and multiple configuration options to fulfill diverse application needs.
Category: Manual Valves , Brand: AIRTAC , Series: 4H

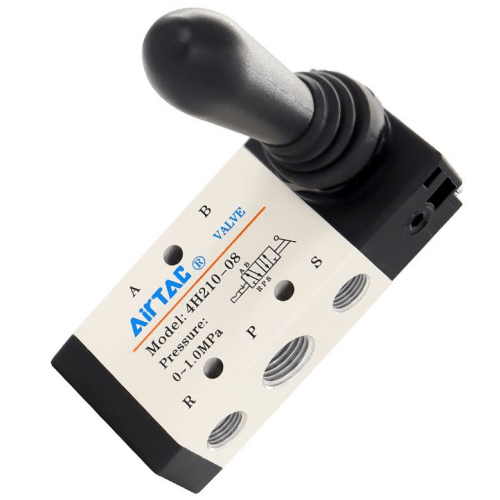

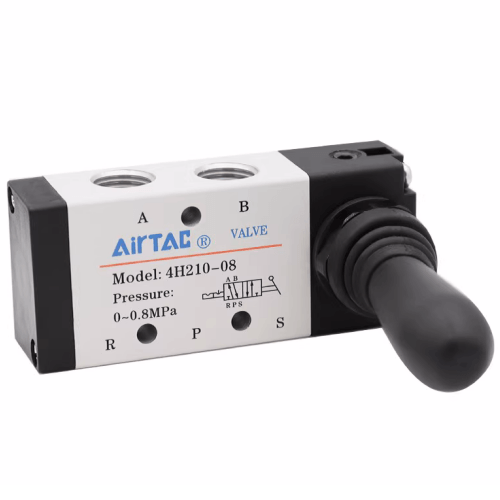

AirTAC 4H210-06 Manual Valve Technical Specifications
- Full model designation: 4H210-06 (4H21006)
- Valve type: 2-position 5-way manual lever operated
- Port configuration: P (pressure), A/B (actuator ports), R/S (exhausts)
- Port thread size: PT1/4 (G1/4 optional)
- Operating pressure range: 0.2–0.8 MPa (29–116 psi)
- Maximum flow rate: 750 L/min (Cv=1.3)
- Body material: Anodized aluminum alloy
- Seal material: High-grade NBR (nitrile rubber)
- Ambient temperature range: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 350g (0.77 lbs)
- Dimensions: 54mm(L) × 34mm(W) × 45mm(H) (2.13"×1.34"×1.77")
- Mounting options: Sub-base compatible (ISO 15407-1 standard)
- Exhaust port direction: Dual downward exhausts
Industrial-grade manual override valve with positive center position lock mechanism. Features wear-resistant lever pivot design with 100,000+ cycle durability. The ergonomic lever requires 1.2kg·f operating force with tactile position feedback. Compatible with ISO 8573-1:2010 Class 3 compressed air quality (max 5μm particles).
- Emergency override in automated production lines
- Pneumatic system maintenance & troubleshooting
- Safety lockout during equipment servicing
- Educational training systems for fluid power
- Mobile hydraulic/pneumatic test benches
Installation guidelines:
Apply 5-7Nm torque during port connection. Lubricate lever pivot
quarterly with ISO VG32 hydraulic oil. For horizontal mounting,
install exhaust silencers vertically downward.
Do NOT use with aggressive
media (steam/chemicals). Always depressurize system before
manual operation. Minimum 3mm clearance required around lever
for safe actuation.
| Property | Property Value |
|---|---|
| sku | 4H21006 |
| Position | 5 Ports 2 Position |
| Port Size | PT1/8 |
