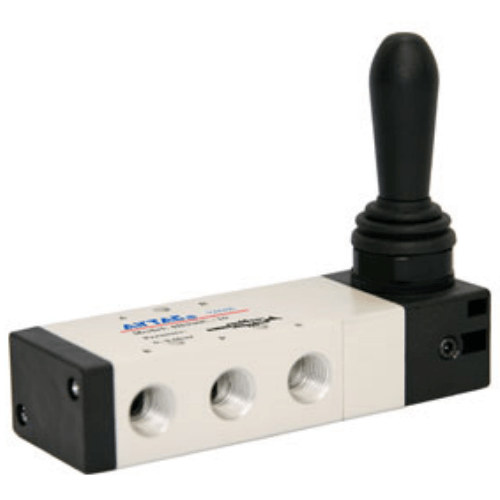

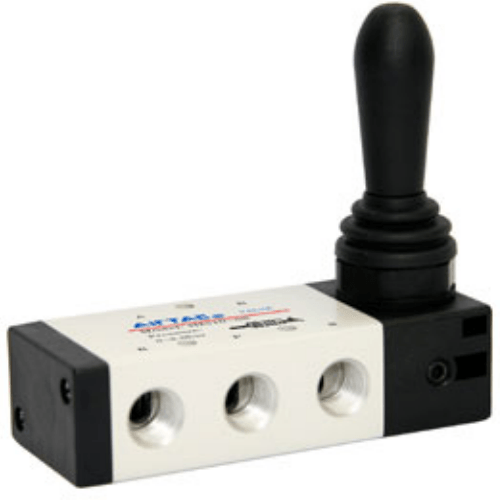

Airtac 4H Manual Valve 4H330C10
$36.05
Regular price
$43.55
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
4H330C10
Product type:
Tags:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Manual operation ensures smooth actuation with precise and reliable positioning;
2、Spool-type structure provides excellent sealing performance, compact dimensions, lightweight design, and tool-free assembly/disassembly;
3、Bore surfaces processed with specialized techniques for reduced friction resistance and extended service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Panel-mount capability with simplified installation and multiple configuration options to fulfill diverse application needs.
Category: Manual Valves , Brand: AIRTAC , Series: 4H
Operation guidance:
Apply 2-3N force perpendicular to lever axis for smooth position switching.
Lubricate pivot point with ISO VG32 hydraulic oil every 6 months in continuous use.
2、Spool-type structure provides excellent sealing performance, compact dimensions, lightweight design, and tool-free assembly/disassembly;
3、Bore surfaces processed with specialized techniques for reduced friction resistance and extended service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Panel-mount capability with simplified installation and multiple configuration options to fulfill diverse application needs.
Category: Manual Valves , Brand: AIRTAC , Series: 4H
AirTAC 4H330C10 Manual Valve Technical Specifications
- Model: 4H330C10
- Type: 4-way/3-position manual directional valve
- Operation type: Mechanical lever actuation (spring return)
- Port size: G1/8 (BSPP thread)
- Port configuration: P (pressure), A/B (actuator ports), R/S (exhaust)
- Operating pressure range: 0.05–1.0 MPa
- Max flow rate: 850 L/min (ANR)
- Body material: Aluminum alloy with hard anodized finish
- Seal material: HNBR rubber (-20℃ to 80℃)
- Weight: 380g ±5%
- Dimensions: 56mm(L) × 40mm(W) × 78mm(H)
- Mounting pattern: ISO 5599-1 compliant subplate (optional)
- Exhaust options: Built-in silencers with 92dB(A) noise reduction
- Cycle life: ≥1,000,000 operations
Industrial-grade manual override valve featuring positive center position detent and tactile feedback. The chrome-plated lever mechanism provides corrosion resistance in humid environments. Designed for systems requiring manual intervention without disconnecting pneumatic lines.
Typical Applications:
- Production line emergency stop systems
- Machine tool clamping position override
- Pneumatic system maintenance bypass
- Material handling equipment manual control
- Prototype pneumatic circuit debugging
Operation guidance:
Apply 2-3N force perpendicular to lever axis for smooth position switching.
Lubricate pivot point with ISO VG32 hydraulic oil every 6 months in continuous use.
Configuration options:
- Center position variants: Closed center / Exhaust center / Pressure center
- Lever extensions available (50mm/100mm)
- Optional position indicator flags
| Property | Property Value |
|---|---|
| sku | 4H330C10 |
| Position | 5-port 3-position |
| Port Size | PT3/8 |
