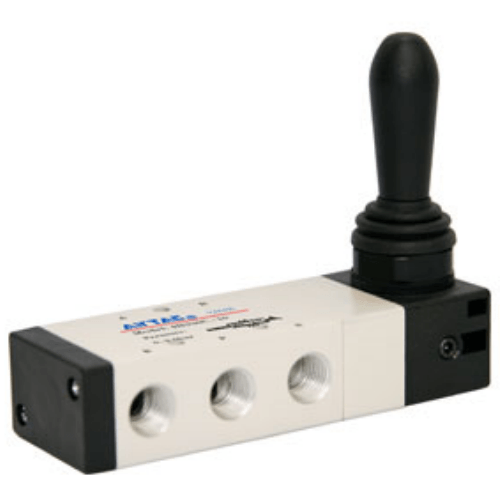

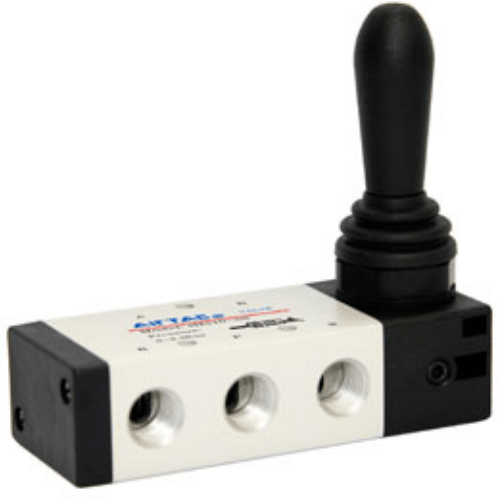

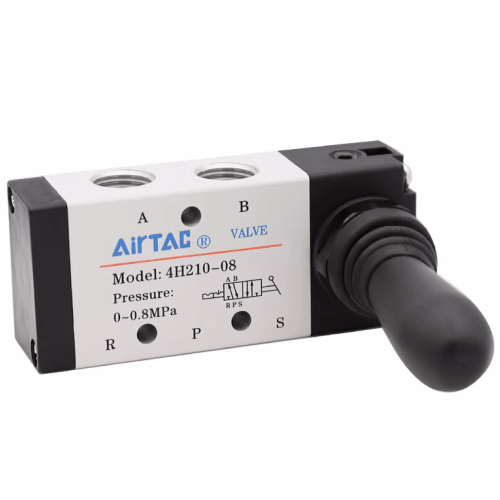

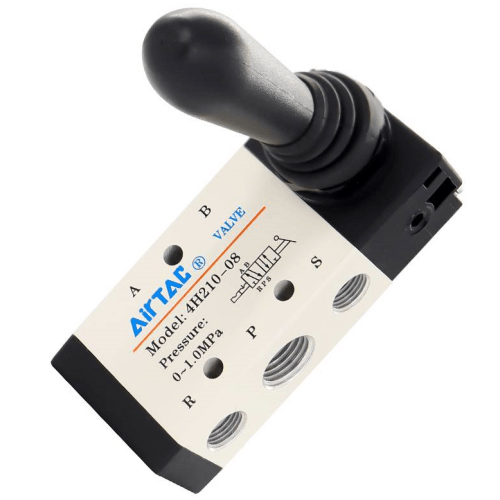

Airtac 4H Manual Valve 4H330E08
2、Spool-type structure provides excellent sealing performance, compact dimensions, lightweight design, and tool-free assembly/disassembly;
3、Bore surfaces processed with specialized techniques for reduced friction resistance and extended service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Panel-mount capability with simplified installation and multiple configuration options to fulfill diverse application needs.
Category: Manual Valves , Brand: AIRTAC , Series: 4H
AirTAC 4H330E08 Manual Valve Technical Specifications
- Model: 4H330E08 (4H Series Manual Valve)
- Type: 3-position detent, 4-way manual directional control valve
- Port configuration: P (pressure), A/B (actuator ports), R/S (exhaust)
- Port size: G1/4 (BSPP thread) / Optional NPT1/4
- Operating pressure range: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 750 L/min (Cv=1.3 at 0.5 MPa)
- Valve body material: Anodized aluminum alloy
- Seal material: NBR (Nitrile) standard / Optional FKM
- Operating temperature: -20℃ to 80℃ (-4°F to 176°F)
- Weight: 320g ±5% (including handle)
- Dimensions: 54mm(W) × 54mm(H) × 128mm(L)
- Mounting: Sub-base compatible (ISO 5599-1 standard)
- Manual override: Lockable rotary handle with 3 positions
- Leakage: <0.1 mL/min under max pressure
Industrial-grade manual valve featuring spring-centered neutral position and positive mechanical detents. The ergonomic T-handle provides 180° rotation with tactile feedback, while the hard-coat anodized body resists chemical corrosion. Designed for systems requiring manual override or non-electrical control.
- Emergency stop circuits in production lines
- Manual mode override in automated machinery
- Pneumatic training equipment and educational setups
- Mobile hydraulic/pneumatic systems without power access
- Safety interlocks in press machines
Operation guidance:
Rotate handle clockwise for Port A output (Position 1), counter-clockwise for Port B output (Position 3).
Center position (Position 2) blocks all ports. Apply 20-30N force for smooth detent engagement.
- Use with 40μm filtered, lubricated or non-lubricated air
- Mount in vibration-free location using M5 mounting screws
- Maintain minimum 50mm clearance around handle rotation arc
- For vertical mounting, orient exhaust ports downward
| Property | Property Value |
|---|---|
| sku | 4H330E08 |
| Position | 5-port 3-position |
| Port Size | PT1/4 |
