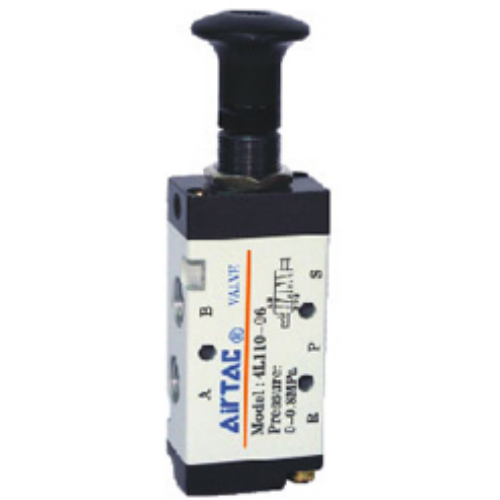

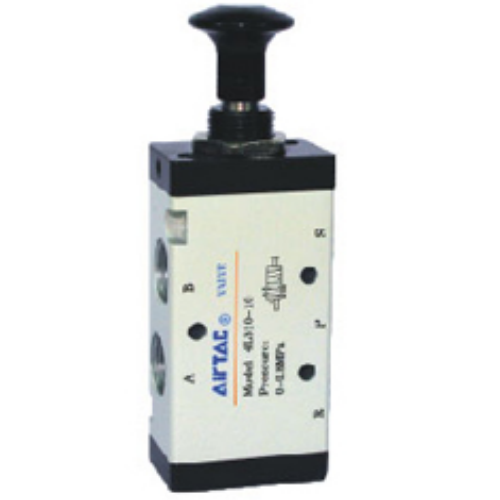

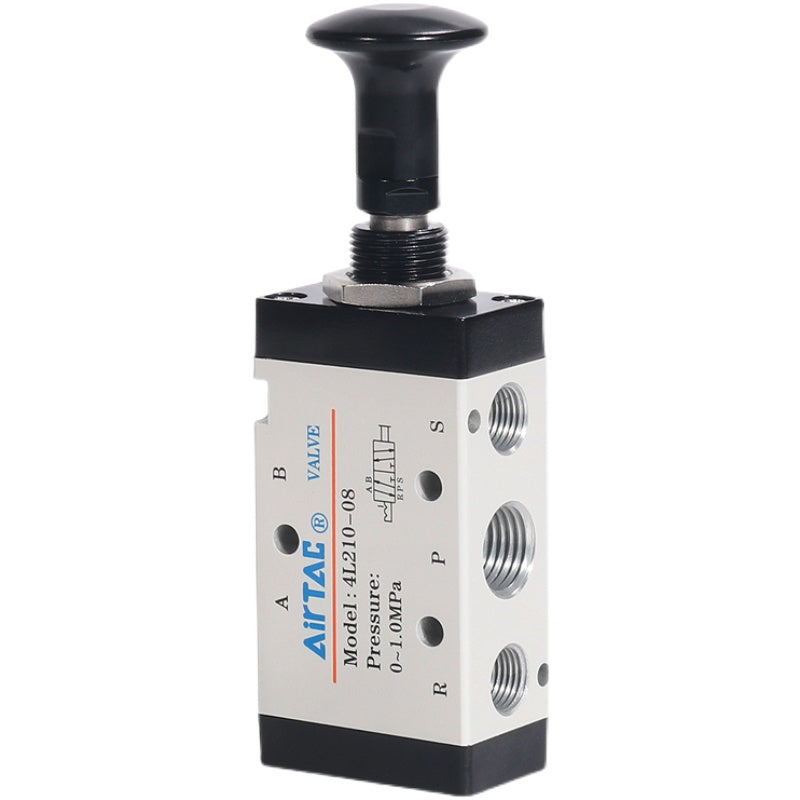

Airtac 4L 2-Position 5-Way Manual Pull Valve 4L310-08
$27.62
Regular price
$35.12
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
4L310-08
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Coaxial manual operation ensures ergonomic handling with precise and reliable positioning;
2、Spool-type structure features compact dimensions, lightweight construction, and excellent sealing performance for easy installation/maintenance;
3、Special bore finishing process minimizes friction resistance while extending service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Multi-position installation capability enables flexible mounting configurations.
Category: Manual Pull Valves , Brand: AIRTAC , Series: 4L 5/2-Way
Installation guidelines:
Mount in horizontal orientation to prevent debris accumulation.
Use thread sealant (LOCTITE 545 recommended) for metal pipe connections.
Allow 15mm clearance for lever movement. Lubricate pivot point annually with ISO VG32 hydraulic oil.
2、Spool-type structure features compact dimensions, lightweight construction, and excellent sealing performance for easy installation/maintenance;
3、Special bore finishing process minimizes friction resistance while extending service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Multi-position installation capability enables flexible mounting configurations.
Category: Manual Pull Valves , Brand: AIRTAC , Series: 4L 5/2-Way
AirTAC 4L310-08 5/2 Manual Lever Valve Technical Details
- Model: 4L310-08 (4L series)
- Valve type: 5-port 2-position manual reset
- Operation method: Mechanical lever actuation
- Port configuration: P (pressure), A/B (actuator ports), R/S (exhausts)
- Port thread: G1/8 (ISO228 standard)
- Max operating pressure: 1.0 MPa
- Min operating pressure: 0.2 MPa
- Flow capacity: 750 l/min (ANR)
- Ambient temperature: -5℃ to 60℃ (no freeze)
- Seal material: HNBR (Hydrogenated Nitrile)
- Body material: PA66+GF (30% glass fiber reinforced)
- Manual force: ≤20N lever operation
- Weight: ~230g (including fittings)
- Dimensions: 56mm(L) × 38mm(W) × 88mm(H)
- Compliance: RoHS compliant
Manual override valve with positive position lock mechanism, featuring dual exhaust ports for rapid cylinder movement. The ergonomic lever design allows single-finger operation with tactile feedback. Reinforced polymer body withstands industrial vibration and chemical exposure.
Common Applications:
- Emergency override in automated production lines
- Maintenance mode activation for pneumatic systems
- Safety interlocks in press machinery
- Educational pneumatic training setups
- Mobile equipment requiring manual air path switching
Installation guidelines:
Mount in horizontal orientation to prevent debris accumulation.
Use thread sealant (LOCTITE 545 recommended) for metal pipe connections.
Allow 15mm clearance for lever movement. Lubricate pivot point annually with ISO VG32 hydraulic oil.
| Property | Property Value |
|---|---|
| sku | 4L310-08 |
| Position | 5/2-way |
| Port | PT1/4 |
