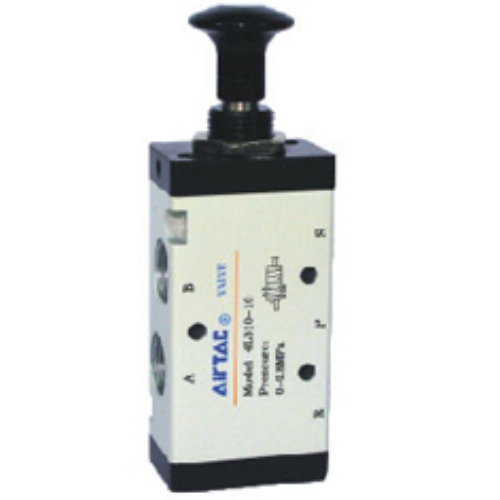

Airtac 4L 2-Position 5-Way Manual Pull Valve 4L310-10
$27.62
Regular price
$35.12
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
4L310-10
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1、Coaxial manual operation ensures ergonomic handling with precise and reliable positioning;
2、Spool-type structure features compact dimensions, lightweight construction, and excellent sealing performance for easy installation/maintenance;
3、Special bore finishing process minimizes friction resistance while extending service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Multi-position installation capability enables flexible mounting configurations.
Category: Manual Pull Valves , Brand: AIRTAC , Series: 4L 5/2-Way
Operational guidance:
Engage override by pulling perpendicular to valve axis until audible click.
Release slowly to prevent sudden pressure drops. Lubricate slide mechanism
every 2,000 cycles using ISO VG32 pneumatic oil.
2、Spool-type structure features compact dimensions, lightweight construction, and excellent sealing performance for easy installation/maintenance;
3、Special bore finishing process minimizes friction resistance while extending service life;
4、Lubrication-free operation eliminates maintenance requirements;
5、Multi-position installation capability enables flexible mounting configurations.
Category: Manual Pull Valves , Brand: AIRTAC , Series: 4L 5/2-Way
AirTAC 4L310-10 5/2-Way Manual Override Valve Specifications
- Model: 4L310-10
- Type: 5/2-way monostable with mechanical override (spring return)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Flow capacity: 750 NL/min (Cv=1.2)
- Manual override type: Pull-to-shift locking mechanism
- Actuation force: ≤30N
- Seal material: NBR (Nitrile) with POM spool
- Temperature range: -20℃ to 80℃ (non-freezing)
- Weight: 320g ±5% (without fittings)
- Dimensions: 78mm(L) × 35mm(W) × 54mm(H)
- Port thread depth: 12mm (6 full threads)
- Hysteresis: ≤0.02 MPa
- Protection rating: IP40 (terminal box)
Robust manual override valve designed for emergency operation and system debugging. Features positive center detent positioning and anti-vibration lock nuts. The ergonomic pull ring allows single-finger operation with tactile feedback. Compatible with ISO 15407-1 standards.
Typical Applications:
- Production line emergency stop systems
- Plastic injection molding machine clamp control
- Automated assembly jig positioning
- Pneumatic cylinder manual reset operations
- Maintenance bypass in conveyor systems
Operational guidance:
Engage override by pulling perpendicular to valve axis until audible click.
Release slowly to prevent sudden pressure drops. Lubricate slide mechanism
every 2,000 cycles using ISO VG32 pneumatic oil.
| Property | Property Value |
|---|---|
| sku | 4L310-10 |
| Position | 5/2-way |
| Port | PT3/8 |
