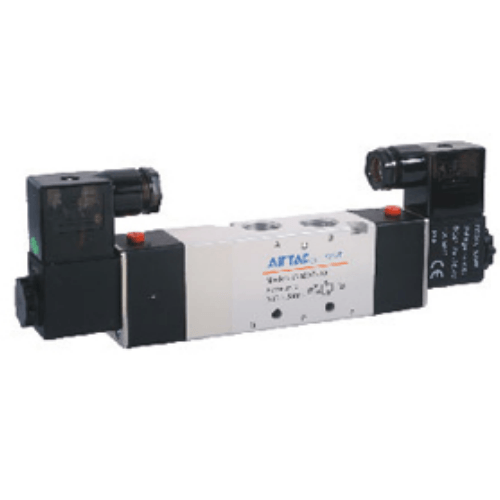

Airtac 4V300 Solenoid Valve 4V31008C-AM
2. Spool-type structure ensures excellent sealing performance and responsive actuation;
3. Three-position valves offer three center position configurations (exhaust-closed/exhaust-open/pressure-center);
4. Dual-solenoid two-position valves feature memory function for sustained state retention;
5. Specially honed inner bore minimizes friction resistance, enables low operating pressure, and extends service life;
6. Maintenance-free lubrication system eliminates external lubrication requirements;
7. Manifold-compatible design allows modular assembly, optimizing space utilization;
8. Integrated manual override facilitates installation and commissioning adjustments;
9. Multiple standard voltage options available for flexible integration.
Category: Solenoid Valves | Brand: AirTAC | Series: 4V300
AirTAC 4V300 Series Solenoid Valve 4V31008C-AM Technical Details
- Model: 4V31008C-AM
- Type: 5/3-way (3-position) closed center, double solenoid
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 1200 NL/min (ANR)
- Voltage options: DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: 2.8W (DC), 4.5VA (AC)
- Response time: ≤30ms (excitation), ≤50ms (reset)
- Seal material: Heat-resistant NBR (Nitrile) - upgraded formulation
- Temperature range: -20℃ to 80℃ (operating fluid), -5℃ to 60℃ (ambient)
- Protection rating: IP67 (dust tight, protected against temporary immersion)
- Port thread depth: 12mm (minimum engagement)
- Weight: 320g ±5% (without connectors)
- Dimensions: 70mm(L) × 40mm(W) × 85mm(H) (excluding mounting brackets)
- Manual override: Built-in push-button with lockable design
- Cycle life: ≥10 million operations (at rated conditions)
High-performance mid-size solenoid valve engineered for precision directional control in demanding industrial environments. Features triple-position functionality (center block design) with double coil operation for positive spool positioning. The anodized aluminum body with hardened stainless steel core components ensures corrosion resistance in humid conditions. Optimized flow paths reduce pressure drop by 18% compared to previous generations.
- CNC machine tool clamping/unclamping sequences
- Plastic injection molding machine cylinder control
- Automated assembly line positioning systems
- Textile machinery tension control mechanisms
- Lithium battery production vacuum handling
Installation guidelines:
- Mount horizontally with coil facing upward to prevent debris accumulation
- Maintain 0.5-1 bar higher pilot pressure than system pressure for optimal response
- Install downstream 5μm filter with auto-drain for abrasive particle environments
| Property | Property Value |
|---|---|
| sku | 4V31008C-AM |
| Position | 5 Ports 2 Position |
| Port Size | PT1/4 |
| Standard Voltage | AC 110V |
