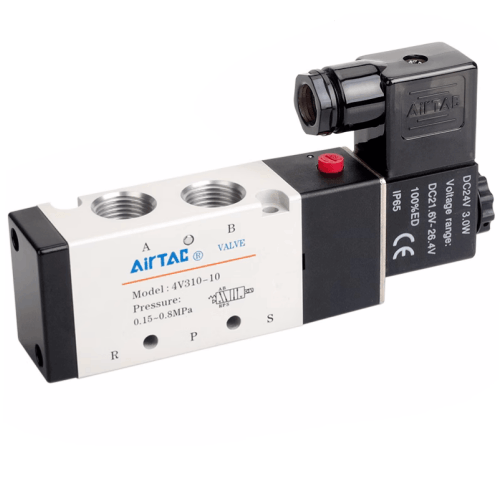

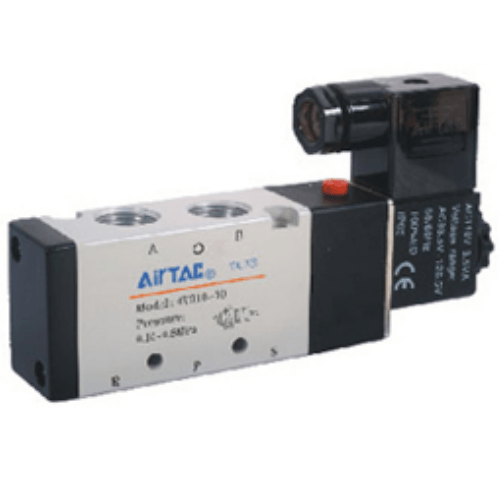

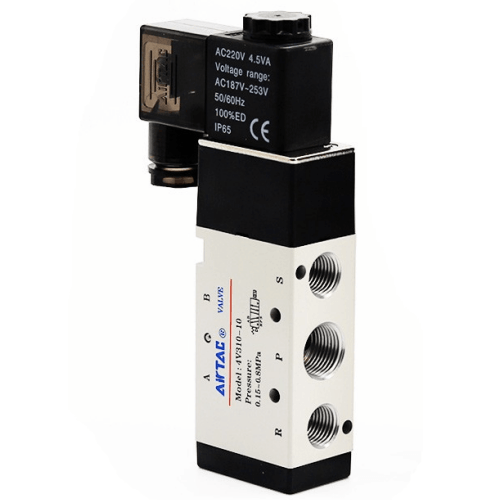

Airtac 4V300 Solenoid Valve 4V31008D-AM
2. Spool-type structure ensures excellent sealing performance and responsive actuation;
3. Three-position valves offer three center position configurations (exhaust-closed/exhaust-open/pressure-center);
4. Dual-solenoid two-position valves feature memory function for sustained state retention;
5. Specially honed inner bore minimizes friction resistance, enables low operating pressure, and extends service life;
6. Maintenance-free lubrication system eliminates external lubrication requirements;
7. Manifold-compatible design allows modular assembly, optimizing space utilization;
8. Integrated manual override facilitates installation and commissioning adjustments;
9. Multiple standard voltage options available for flexible integration.
Category: Solenoid Valves | Brand: AirTAC | Series: 4V300
AirTAC 4V300 Series Solenoid Valve 4V31008D-AM Technical Specifications
- Model: 4V31008D-AM

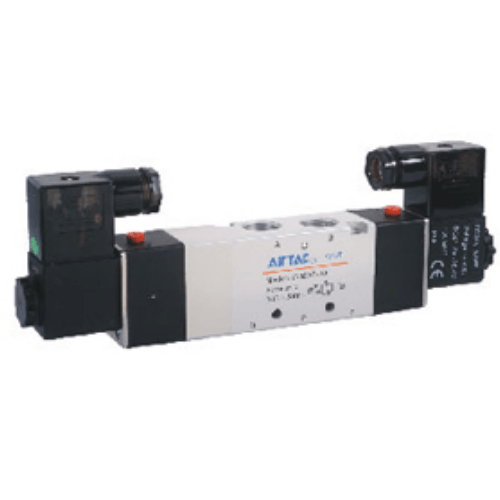

- Type: 5/2-way double solenoid pilot-operated (bi-stable)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Voltage options: DC12V (±10%), DC24V (±10%), AC110V (50/60Hz), AC220V (50/60Hz)
- Power consumption: 1.8W (DC), 3.5VA (AC)
- Maximum flow rate: 750 L/min (ANR)
- Response time: ≤20ms (at 0.5 MPa)
- Seal material: Heat-resistant NBR (Nitrile Butadiene Rubber)
- Temperature range: -20℃ to 80℃ (non-freezing)
- Protection rating: IP67 (dustproof & temporary immersion)
- Weight: 0.5 kg ±5% (with coil)
- Dimensions: 80mm(L) × 40mm(W) × 65mm(H)
- Mounting type: ISO 5599-1 standard sub-base compatible
High-flow solenoid valve with dual coil configuration for precise position memory control. Features brass main body with hard anodized aluminum pilot section, optimized for industrial automation systems requiring frequent directional changes. Includes manual override button for system debugging. Requires 5μm filtered lubricated air (ISO 8573-1 class 4).
- Automated production line clamping systems
- Plastic injection molding machine actuators
- CNC tool changers with position hold requirements
- Textile machinery with bi-directional cylinder control
- Semiconductor handling equipment
Installation guidelines:
Maintain horizontal tubing alignment to prevent moisture accumulation.
Use shock-absorbing brackets in high-vibration environments.
Minimum 15mm clearance recommended around valve body for heat dissipation.
Critical note:
Do NOT use silicone-based lubricants.
Cycle frequency must not exceed 5Hz continuously.
Always install upstream pressure regulator with gauge.
| Property | Property Value |
|---|---|
| sku | 4V31008D-AM |
| Position | 5 Ports 2 Position |
| Port Size | PT1/4 |
| Standard Voltage | DC24V |
