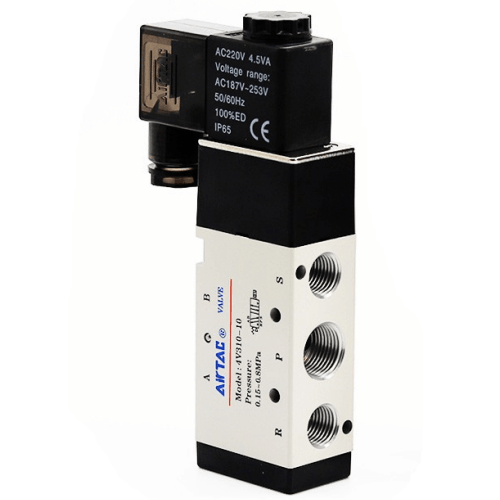

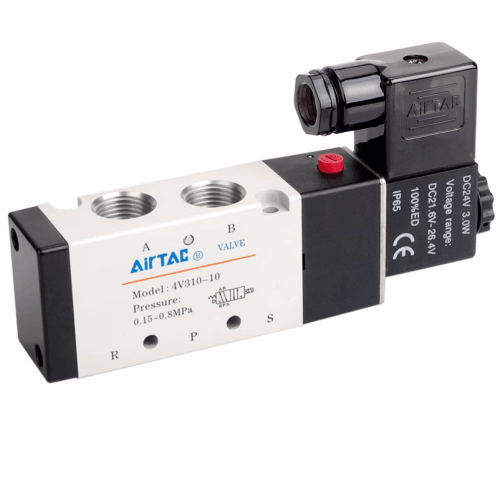

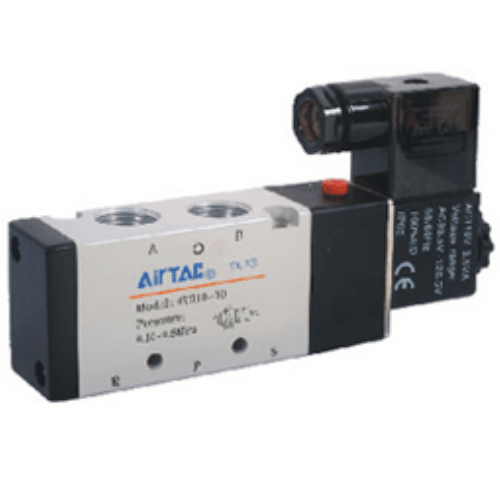

Airtac 4V300 Solenoid Valve 4V32010B-W
2. Spool-type structure ensures excellent sealing performance and responsive actuation;
3. Three-position valves offer three center position configurations (exhaust-closed/exhaust-open/pressure-center);

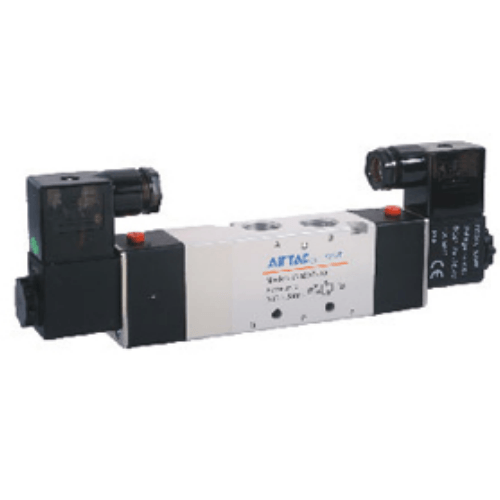

4. Dual-solenoid two-position valves feature memory function for sustained state retention;
5. Specially honed inner bore minimizes friction resistance, enables low operating pressure, and extends service life;
6. Maintenance-free lubrication system eliminates external lubrication requirements;
7. Manifold-compatible design allows modular assembly, optimizing space utilization;
8. Integrated manual override facilitates installation and commissioning adjustments;
9. Multiple standard voltage options available for flexible integration.
Category: Solenoid Valves | Brand: AirTAC | Series: 4V300
AirTAC 4V300 4V32010B-W Solenoid Valve Specifications
- Model: 4V32010B-W
- Type: 5/2-way monostable (single solenoid pilot-operated)
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.1–0.9 MPa
- Max flow rate: 1,200 NL/min (ANR)
- Voltage options: DC12V, DC24V, AC110V, AC220V
- Coil power: 1.8W (DC), 2.8VA (AC)
- Weight: 280g ±5% (including coil)
- Dimensions: 60mm(L) × 45mm(W) × 78mm(H)
- Body material: Die-cast aluminum alloy (anodized)
- Seal material: Heat-resistant NBR (nitrile butadiene rubber)
- Temperature range: -5℃ to 80℃ (non-freezing)
- Response time: ≤25ms (at 0.5MPa)
- Protection rating: IP67 (coil)/IP40 (valve body)
- Port thread depth: 12mm (minimum engagement)
High-flow directional control valve with integrated silencer, designed for industrial automation systems requiring rapid cycling. Features anti-vibration brass core tube and dual-chamber design for stable pilot operation. Compatible with ISO 15407-1 standards. Requires 5μm filtered lubricated air (ISO 8573-1 class 4).
- Pneumatic cylinder sequencing in assembly lines
- Textile machinery clutch control
- Automated welding equipment actuator control
- Plastic injection molding machine ejectors
- Beverage filling station valve clusters
Installation guidelines:
Mount with M5 screws (max torque 1.2N·m). Maintain 15mm clearance
below valve for exhaust flow. Use thread sealant on ports - do not
overtighten (max 18N·m). Cycle manually 3-5 times before power-on.
| Property | Property Value |
|---|---|
| sku | 4V32010B-W |
| Position | 5 Ports 2 Position |
| Port Size | PT3/8 |
| Standard Voltage | DC24V |
