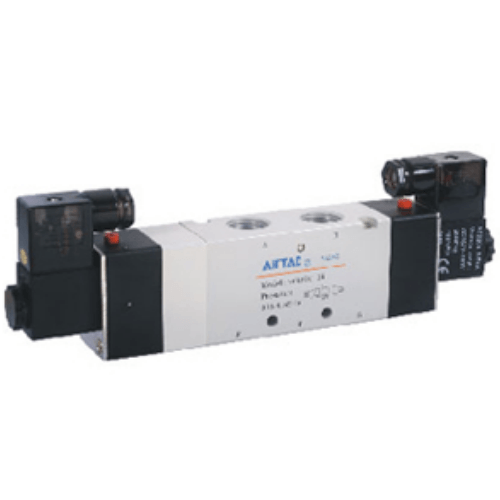

Airtac 4V400 Solenoid Valve 4V430C15B-W
$83.71
Regular price
$91.21
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
4V430C15B-W
Product type:
Collections:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Pilot operation: Optional internal or external pilot control;
2. Spool-type structure with excellent sealing performance and rapid response characteristics;
3. Three-position solenoid valve offers three center configuration options: closed center, exhausted center, and pressure center;
4. Dual-coil two-position configuration features latching (memory) function;
5. Precision-machined bore with low friction design ensures minimal actuation pressure and extended service life;
6. Maintenance-free operation without lubrication requirements;
7. Manifold-mountable design for space-efficient system integration;
8. Integrated manual override for simplified commissioning and troubleshooting;
9. Multiple standard voltage configurations available.
Category: Solenoid Valves | Brand: AirTAC | Series: 4V400
Installation protocol:
Mount with vibration-damping brackets in high-shock environments.
Maintain 0.3-0.5 MPa backpressure for optimal seal longevity.
Purge air lines for 30s before initial activation.
2. Spool-type structure with excellent sealing performance and rapid response characteristics;
3. Three-position solenoid valve offers three center configuration options: closed center, exhausted center, and pressure center;
4. Dual-coil two-position configuration features latching (memory) function;
5. Precision-machined bore with low friction design ensures minimal actuation pressure and extended service life;
6. Maintenance-free operation without lubrication requirements;
7. Manifold-mountable design for space-efficient system integration;
8. Integrated manual override for simplified commissioning and troubleshooting;
9. Multiple standard voltage configurations available.
Category: Solenoid Valves | Brand: AirTAC | Series: 4V400
AirTAC 4V430C15B-W 4V400 Series Solenoid Valve Technical Details
- Model: 4V430C15B-W (4V400 series)
- Valve type: 5/2-way single solenoid spring return
- Port configuration: 1/4" BSPP (G1/4)
- Operating pressure: 0.1–1.0 MPa (14.5–145 PSI)
- Voltage variants: DC12V/24V, AC110V/220V (coil interchangeability)
- Flow capacity: 850 l/min (Cv=1.3 at 0.5 MPa)
- Response time: ≤20ms (energize)/≤15ms (de-energize)
- Seal material: Heat-resistant NBR (nitrile butadiene rubber)
- Ambient temperature: -5℃ to 60℃ (with anti-condensation measures)
- Weight: 550g ±5% (including coil and accessories)
- Dimensions: 98mm(L) × 48mm(W) × 83mm(H)
- Protection class: IP67 (dustproof & temporary immersion)
- Port thread depth: 12mm (requires full engagement)
- Max cycling rate: 5Hz (lubricated), 3Hz (non-lubricated)
High-flow directional control valve with manual override, designed for industrial automation requiring rapid cycling. Features brass main body with hard-anodized aluminum solenoid housing. Requires 5μm filtration (ISO 8573-1 class 4) with 20-50 cSt viscosity lubricant if used.
Industrial Applications:
- Plastic injection molding machine clamp units
- Automated assembly line actuators
- Bottle blowing machine air circuits
- Pneumatic punching/stamping equipment
- Wastewater treatment plant valve clusters
Installation protocol:
Mount with vibration-damping brackets in high-shock environments.
Maintain 0.3-0.5 MPa backpressure for optimal seal longevity.
Purge air lines for 30s before initial activation.
| Property | Property Value |
|---|---|
| sku | 4V430C15B-W |
| Position | 5-port 3-position |
| Port Size | PT 1/2 |
| Standard Voltage | DC24V |
