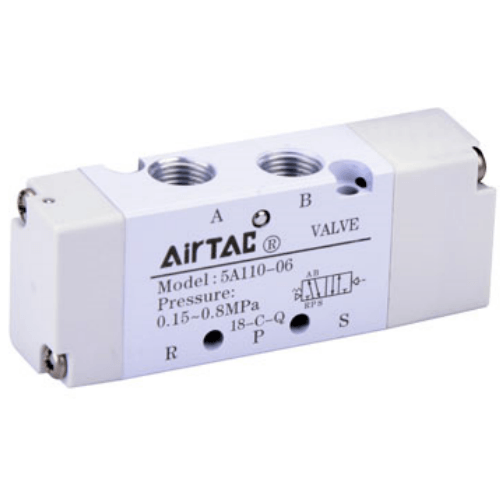

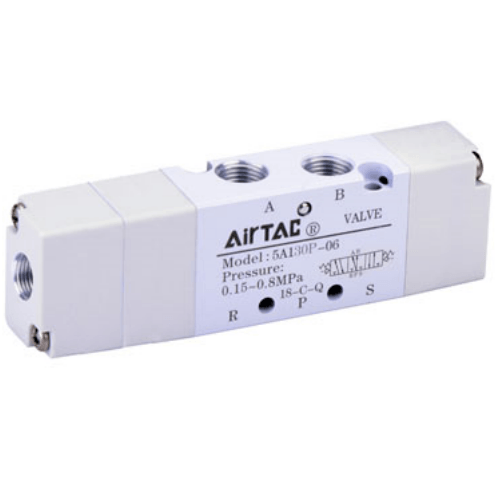

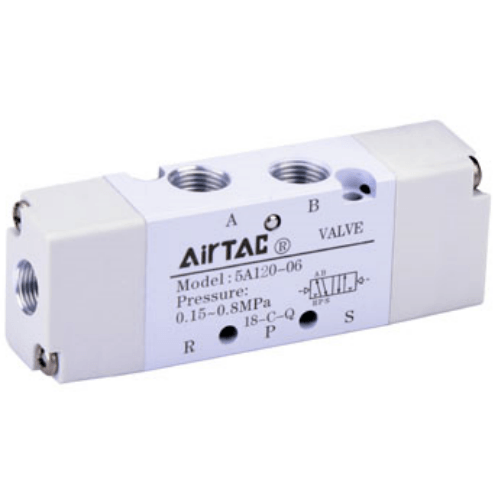

Airtac 5A Pneumatic Control Valve 5A31008
2. 3-position pneumatic valve offers three center position functions (exhaust blocked, pressure retained, or exhaust center);
3. 2-position double pilot-operated valve features memory function to retain the last control state;
4. Precision-machined internal bore reduces friction resistance, enabling low actuation pressure and extended service life;
5. Oil-free lubrication design eliminates the need for external lubrication;
6. Modular design allows integration with manifold bases to save installation space;
**Category**: Pneumatic Control Valves | **Brand**: AirTAC | **Series**: 5A --- Note: The translation incorporates industry-specific terminology (e.g., "spool-type," "double pilot-operated," "manifold bases") and structural clarity while retaining the original HTML line breaks. Key technical features like memory function, modularity, and lubrication-free operation are emphasized for professional context.
AirTAC 5A31008 Pneumatic Control Valve Specifications
- Model: 5A310-08 (5A31008)
- Type: 5-port 2-position (5/2-way) spring return
- Port size: PT1/4 (G1/4 optional)
- Operating pressure: 0.2–0.8 MPa (29–116 psi)
- Voltage options: DC12V, DC24V, AC110V, AC220V (solenoid version)
- Manual override: Optional paddle-type actuator
- Weight: 350g ±5% (without accessories)
- Dimensions: 80mm(L) × 35mm(W) × 45mm(H)
- Seal material: HNBR rubber (high nitrile for oil resistance)
- Temperature range: -20℃ to 80℃ (non-freezing conditions)
- Flow rate: 750 NL/min (at 0.5 MPa)
- Response time: ≤50ms (at rated voltage)
- Protection rating: IP67 (dust/water resistant)
- Mounting: ISO 5599-1 standard interface
High-flow directional control valve with robust aluminum alloy body, designed for bidirectional cylinder control in demanding industrial environments. Features dual-pressure operation capability and surge protection circuitry in solenoid variants. Requires 5μm filtered lubricated air (ISO 8573-1 class 3).
- Automated production line cylinder sequencing
- Plastic injection molding machine clamp control
- Automotive assembly line tooling actuators
- Food processing pneumatic systems (food-grade grease option)
- Palletizing robot end-effector controls
Installation note:
Use anti-vibration mounting brackets in high-cycle applications (>1Hz).
Maintain 0.5-1.0mm alignment tolerance during manifold stacking.
Apply silicone-free thread sealant on port connections.
| Property | Property Value |
|---|---|
| sku | 5A31008 |
| Position | 5 Ports 2 Position |
| Port Size | PT1/4 |
