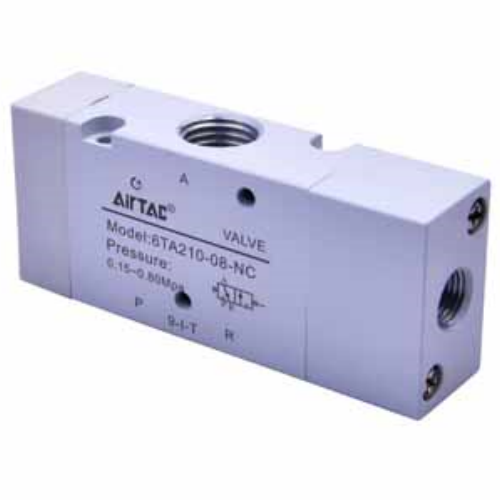

Airtac 6TA Pneumatic Control Valve 6TA120M5
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、Compatible with base-mounted integrated valve manifolds, optimizing spatial efficiency in system layouts.
Classification: Air Control Valve | Brand: Airtac | Series: 6TA
AirTAC 6TA120M5 Manual Pneumatic Control Valve Specifications
- Model: 6TA120M5 (Mechanical Spring Return)
- Type: 5/2-way monostable (lever-operated)
- Port size: G1/2 (ISO 228 standard)
- Thread type: M5 exhaust ports (2x)
- Operating pressure: 0.15–0.8 MPa (21.7–116 PSI)
- Max flow rate: 750 L/min (Cv=1.3 at 0.5 MPa)
- Actuation force: ≤3.5 N (lever operation)
- Weight: 520g ±5% (including accessories)
- Dimensions: 102mm(L) × 48mm(W) × 65mm(H)
- Body material: Anodized aluminum alloy (AL6063-T5)
- Seal material: HNBR rubber (-20℃ to 120℃)
- Temperature range: -20℃ to 80℃ (non-freezing)
- Response time: ≤50ms (pressure differential ≥0.2 MPa)
- Protection rating: IP54 (dust/water splash resistant)
- Mounting: ISO 5599-1 compliant subplate (optional)
Heavy-duty manual pneumatic valve with visual position indicator, designed for harsh industrial environments. Features dual exhaust silencers and anti-vibration locknut design. Requires 5μm filtered lubricated air (ISO 8573-1 Class 3). Compatible with ISO 15407-1 pneumatic systems.
- Foundry equipment cylinder control
- Plastic injection molding machines
- Automated material handling systems
- Textile machinery pneumatic circuits
- Hydraulic system pilot controls
Installation note:
Apply thread sealant (LOCTITE 577 recommended) on port threads.
For vertical mounting, position lever actuator within ±30° of horizontal plane.
Minimum 15mm clearance required below exhaust ports for airflow.
| Property | Property Value |
|---|---|
| sku | 6TA120M5 |
| Initial Position | Normally Closed |
| Port Size | M5 |
