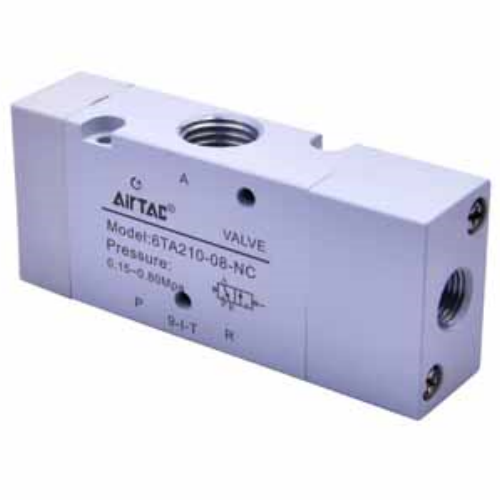

Airtac 6TA Pneumatic Control Valve 6TA22006
A cropped merino wool cardigan taken up a notch, thanks to the flecks of metallic thread throughout. We love it even more paired with the matching sweater-pants.
2、Compatible with base-mounted integrated valve manifolds, optimizing spatial efficiency in system layouts.
Classification: Air Control Valve | Brand: Airtac | Series: 6TA
AirTAC 6TA22006 Pneumatic Control Valve Technical Details
- Model: 6TA22006 (Full model code: 6TA220-06)
- Valve type: 5/2-way pneumatic pilot operated
- Port configuration: 5 ports (P, A, B, R, S) / 2 positions
- Port thread size: PT1/4 (BSPP) with optional NPT1/4 adapter
- Operating pressure range: 0.2–1.0 MPa (29–145 PSI)
- Maximum flow rate: 850 NL/min (ANR)
- Actuation type: Air pilot (dual pressure control)
- Response time: ≤50 ms (at 0.5 MPa)
- Seal material: Heat-resistant NBR (Nitrile) with PTFE coating
- Temperature range: -10℃ to 80℃ (14℉ to 176℉)
- Weight: 480g ±5% (including accessories)
- Dimensions: 94mm(L) × 45mm(W) × 68mm(H)
- Mounting style: ISO 5599/1 standard sub-base compatible
- Protection class: IP67 (dustproof & temporary immersion)
- Service life: ≥10 million cycles (under rated conditions)
High-flow directional control valve engineered for industrial automation systems requiring rapid cycling. Features dual-pressure pilot control for reliable switching even in high-vibration environments. The aluminum alloy body with hard anodized treatment ensures corrosion resistance in humid conditions. Includes manual override and position indicator for maintenance diagnostics.
- Automated assembly line clamping mechanisms
- Plastic injection molding machine actuators
- CNC machine tool pneumatic sequencing
- Food processing conveyor control systems
- Automotive paint shop cylinder controls
Installation guidelines:
Use locknuts with 25-30 N·m torque for port connections. Maintain minimum
15mm clearance below valve for condensate drainage. Lubricate with ISO VG32
grade turbine oil if air line lubrication is unavailable.
- AirTAC AC20 series air preparation units
- 6TA-10/6TA-15 manifold blocks for multi-valve systems
- SCS series sensors for position feedback
| Property | Property Value |
|---|---|
| sku | 6TA22006 |
| Initial Position | Normally Closed |
| Port Size | PT1/8 |
