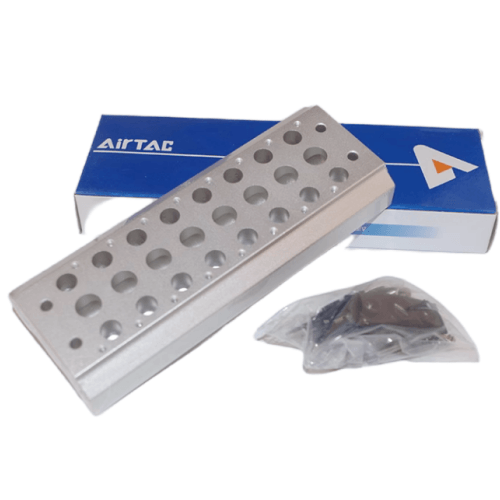

Airtac 7V-F Solenoid Valve Manifold 7V300M20F
2、Centralized air inlet/exhaust ports and integrated wiring simplify troubleshooting during maintenance:
3、Flexible modular configuration with expandable design - Allows arbitrary combination and expansion of connected directional control valves quantity;
Category: Solenoid Valve Bases , Brand: AirTAC , Series: 7V-F
AirTAC 7V300M20F 7V-F Series Valve Manifold Base Specifications
- Model: 7V300M20F (7V-F Series)
- Type: Modular manifold base for solenoid valve assembly
- Port configuration: 3/2-way, 4/2-way, 5/2-way selectable
- Port size: G1/8 (NPT1/8 optional)
- Maximum operating pressure: 1.0 MPa
- Voltage compatibility: Universal for DC12-24V/AC110-220V coils
- Flow capacity: 800 L/min (ANR)
- Weight: 480g ±2%
- Dimensions: 86mm(L) × 44mm(W) × 36mm(H)
- Body material: Reinforced PA66 with glass fiber
- Seal material: Heat-resistant HNBR
- Temperature range: -10℃ to 80℃ (with silicone seals: -20℃ to 100℃)
- Port pitch: 20mm modular spacing
- Mounting: ISO 15407-1 compliant
- Protection rating: IP67 (with compatible valves)
Multi-functional valve base designed for centralized pneumatic control systems, featuring dual-row port arrangement for compact installations. The modular design allows cascade connection of up to 20 units with integrated air passage. Includes built-in silencers and shock-absorbing pads for noise reduction below 65dB(A).
- Automated assembly line clamping systems
- Textile machinery pneumatic clusters
- Beverage filling station valve arrays
- Semiconductor handling vacuum/pressure modules
- Train door control manifolds
Installation note:
Apply 3-5Nm torque during manifold stacking. Use M4×12 screws for DIN rail mounting.
Lubricate seals with ISO VG32 turbine oil before initial use. Maximum 12-month storage
period in original packaging (avoid UV exposure).
| Property | Property Value |
|---|---|
| sku | 7V300M20F |
