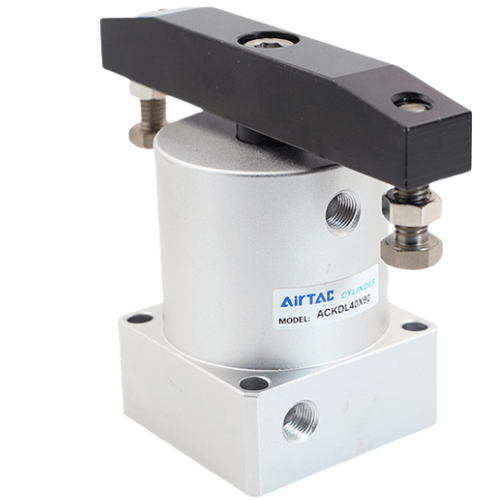

Airtac ACKDL Rotary Type Cylinder ACKDL25X90
$61.63
Regular price
$69.13
Sale!
Unit price
per
sold in last hours
customers are viewing this product
Couldn't load pickup availability
SKU:
In stock
SKU:
ACKDL25X90
Product type:
DELIVERY
Estimated delivery between
and
Guarantee Safe Checkout
Description
1. Premium sealing materials ensure reliable performance under diverse operating conditions;
2. Triple-guide groove structure delivers high-precision alignment and directional stability;
3. Available in single-acting and double-acting (90°) operation configurations;
4. Flexible rotation options: left-hand/right-hand rotation with 90° and 180° rotation angles;
5. Heat-treated piston rod manufactured from special alloy steel guarantees enhanced durability and prolonged service life.
Category: Angular Rotation Cylinders | Brand: AirTAC | Series: ACKDL
Installation note:
Ensure proper alignment of rotation axis and maintain 0.5-1mm clearance between clamp arm and workpiece. Lubricate guide shafts every 500km operation cycle. Avoid side-load exceeding 30N.
2. Triple-guide groove structure delivers high-precision alignment and directional stability;
3. Available in single-acting and double-acting (90°) operation configurations;
4. Flexible rotation options: left-hand/right-hand rotation with 90° and 180° rotation angles;
5. Heat-treated piston rod manufactured from special alloy steel guarantees enhanced durability and prolonged service life.
Category: Angular Rotation Cylinders | Brand: AirTAC | Series: ACKDL
AirTAC ACKDL25X90 Rotary Clamp Cylinder Specifications
- Model: ACKDL25X90
- Type: Double-acting rotary clamp cylinder
- Bore size: Ø25mm
- Stroke: 90mm
- Operating pressure: 0.1–0.9 MPa
- Rotation angle: 90°±1° (fixed)
- Torque output: 1.6 N·m @0.5 MPa
- Mounting style: Standard base mounting (ISO 15552 compatible)
- Port size: M5x0.8 (dual ports)
- Temperature range: -10℃ to 70℃
- Cylinder material: Aluminum alloy (anodized)
- Piston rod: Chrome-plated steel
- Seal material: NBR + PU combination
- Weight: 0.85 kg (excluding accessories)
- Dimensions: 144mm(L) × 56mm(W) × 56mm(H)
- Repeat positioning accuracy: ±0.5°
- Max swing speed: 200°/s
Compact 90° rotation cylinder with integrated mechanical stopper, featuring dual internal cushioning for smooth angular motion. The reinforced guide structure ensures minimal radial play during rotation (±0.1mm). Requires filtered air (40μm) with ISO VG32 lubricator oil (optional).
Typical Applications:
- Workpiece positioning in CNC machine tool changers
- Flip-over mechanisms in assembly lines
- Clamping/unclamping operations in welding fixtures
- Part orientation adjustment in packaging machinery
- Valve actuation in automated fluid systems
Installation note:
Ensure proper alignment of rotation axis and maintain 0.5-1mm clearance between clamp arm and workpiece. Lubricate guide shafts every 500km operation cycle. Avoid side-load exceeding 30N.
| Property | Property Value |
|---|---|
| sku | ACKDL25X90 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 50-200 mm/s |
| Port Size | M5×0.8 |
| Bore Diameter | <25 mm> |
| Direction Code | Push Down Left-hand Rotation |
| Rotation Angle Code | <90°> |
