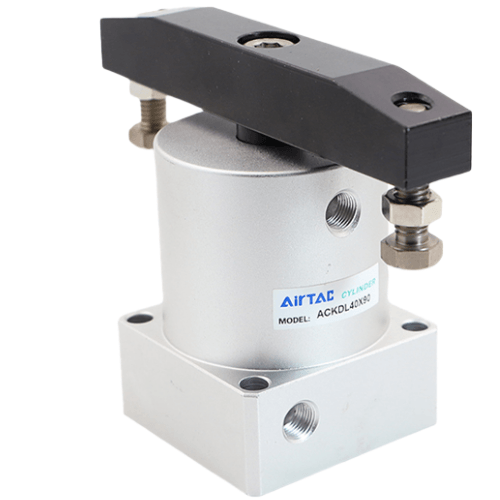

Airtac ACKDL Rotary Type Cylinder ACKDL40X90
2. Triple-guide groove structure delivers high-precision alignment and directional stability;
3. Available in single-acting and double-acting (90°) operation configurations;
4. Flexible rotation options: left-hand/right-hand rotation with 90° and 180° rotation angles;
5. Heat-treated piston rod manufactured from special alloy steel guarantees enhanced durability and prolonged service life.
Category: Angular Rotation Cylinders | Brand: AirTAC | Series: ACKDL
AirTAC ACKDL40X90 Rotary Clamp Cylinder Specifications
- Model: ACKDL40X90
- Type: Compact rotary clamp cylinder (90° rotation)
- Bore size: 40mm
- Stroke: 90mm
- Operating pressure: 0.1–0.9 MPa
- Rotation angle: 90±2°
- Mounting style: Dual angular mounting holes (front/rear)
- Port size: PT1/4 (NPT1/4 optional)
- Temperature range: -20℃ to 80℃
- Piston speed: 50–800 mm/s
- Buffer type: Adjustable pneumatic cushion
- Seal material: Nitrile rubber (NBR) with wear-resistant ring
- Repeat positioning accuracy: ±0.5mm
- Weight: 2.5 kg (with standard accessories)
- Dimensions: 200mm(L) × 100mm(W) × 80mm(H) (max extended position)
High-torque rotary actuator combining linear motion with 90° angular displacement, featuring integrated T-slot mounting for tooling plates. The dual-piston design delivers up to 15N·m rotational torque at 0.5MPa, with anti-vibration construction for stable clamping in dynamic environments. Requires ISO 8573-1:2010 Class 3-4-3 compressed air.
- Workpiece positioning in CNC machine tool changers
- Pallet clamping in automated assembly lines
- 90° flipping mechanisms in packaging machinery
- Fixture orientation adjustment in robotic welding cells
- Precision alignment in semiconductor handling systems
Installation note:
Maintain 0.5–1mm clearance between clamp arm and workpiece surface.
Lubricate pivot bearings every 500,000 cycles using ISO VG32 hydraulic oil.
Avoid side loads exceeding 200N during rotation phase.
| Property | Property Value |
|---|---|
| sku | ACKDL40X90 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 50-200 mm/s |
| Port Size | PT1/8 |
| Bore Diameter | <40mm> |
| Direction Code | Push Down Left-hand Rotation |
| Rotation Angle Code | <90°> |
