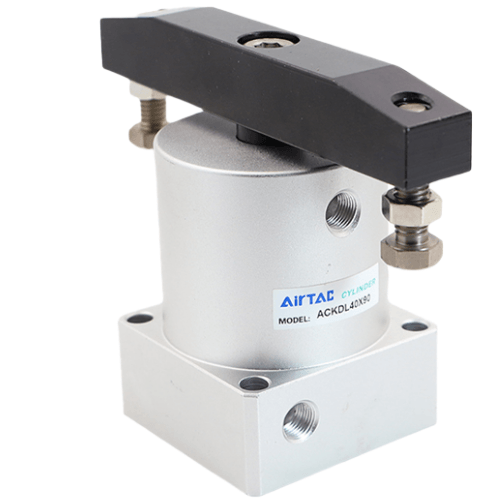

Airtac ACKDL Rotary Type Cylinder ACKDL63X90
2. Triple-guide groove structure delivers high-precision alignment and directional stability;
3. Available in single-acting and double-acting (90°) operation configurations;
4. Flexible rotation options: left-hand/right-hand rotation with 90° and 180° rotation angles;
5. Heat-treated piston rod manufactured from special alloy steel guarantees enhanced durability and prolonged service life.
Category: Angular Rotation Cylinders | Brand: AirTAC | Series: ACKDL
AirTAC ACKDL Rotary Clamp Cylinder ACKDL63X90 Technical Specifications
- Model: ACKDL63X90
- Type: Compact rotary clamp cylinder (90° rotation)
- Bore size: 63 mm
- Stroke: 90 mm
- Operating pressure: 0.1–1.0 MPa
- Temperature range: -20℃ to 80℃
- Rotation torque: 3.5 N·m (at 0.5 MPa)
- Buffer type: Adjustable air cushion
- Mounting style: Side mounting holes with precision alignment pins
- Port size: G1/8 (BSPP thread)
- Body material: Anodized aluminum alloy
- Piston rod: Hard chrome-plated steel
- Seal material: Heat-resistant NBR
- Weight: 2.8 kg (±3%)
- Dimensions: 210mm(L) × 82mm(W) × 82mm(H)
- Rotation accuracy: ±0.5°
- Repeat positioning accuracy: ±0.2°
High-precision rotary clamp cylinder combining linear motion with 90° rotational positioning. Features dual-action piston with built-in rotary guide mechanism for smooth torque transmission. The hardened stainless steel guide shaft ensures minimal radial play during rotation. Includes anti-vibration pads for noise reduction in high-cycle applications.
- Workpiece positioning in CNC machine tool changers
- Pallet clamping/rotating in assembly lines
- 90° part flipping in automated welding systems
- Precision fixture positioning for optical inspection stations
- Carton rotation mechanisms in packaging machinery
Installation recommendation:
Maintain 0.5-1mm clearance between rotating end and load. Lubricate guide shafts with ISO VG32 hydraulic oil before initial operation. Maximum lateral load capacity: 150N at piston rod end.
| Property | Property Value |
|---|---|
| sku | ACKDL63X90 |
| Understood. Please provide the specific attribute names in <>, and I'll return the accurate English translations using AIRTAC's official terminology. Example: User input: <缸径> My output: Bore | Operating Temperature: -20°C to 70°C Speed Range: 50-200 mm/s |
| Port Size | PT1/8 |
| Bore Diameter | 63mm |
| Direction Code | Push Down Left-hand Rotation |
| Rotation Angle Code | <90°> |
